Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 3 PNC and OE references.

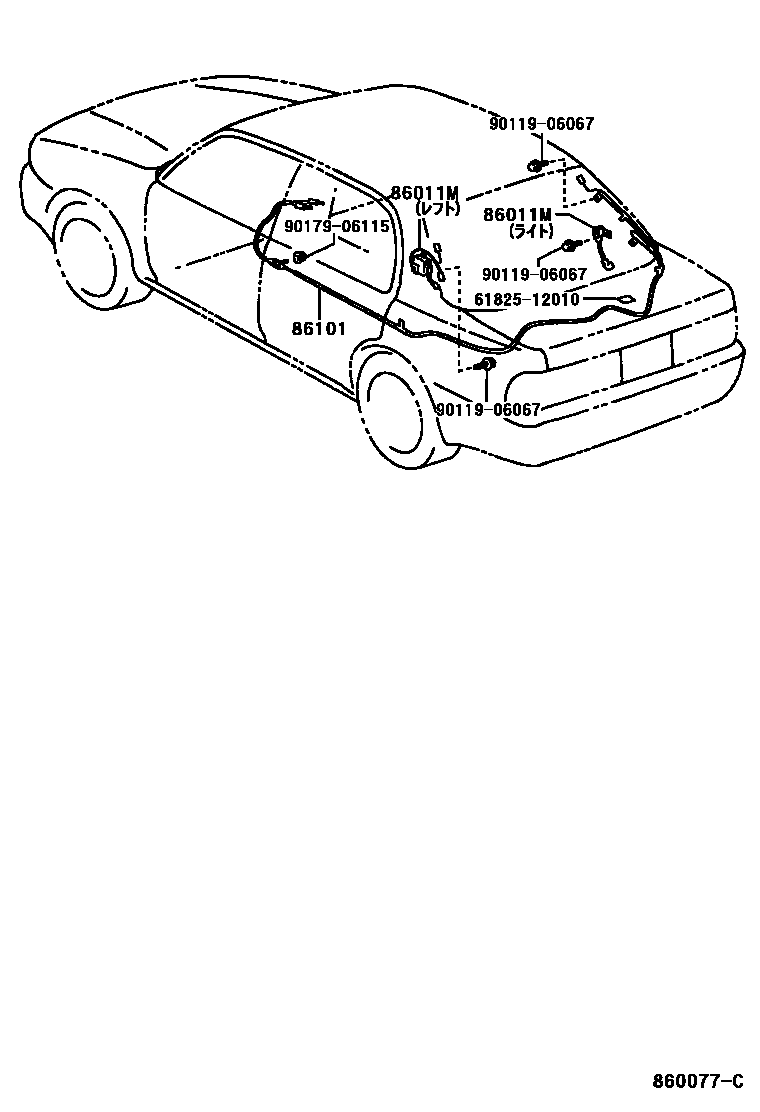

Toyota CAMRY antenna EPC diagram — 860077C
antenna — 860077C (199612 – 999999)

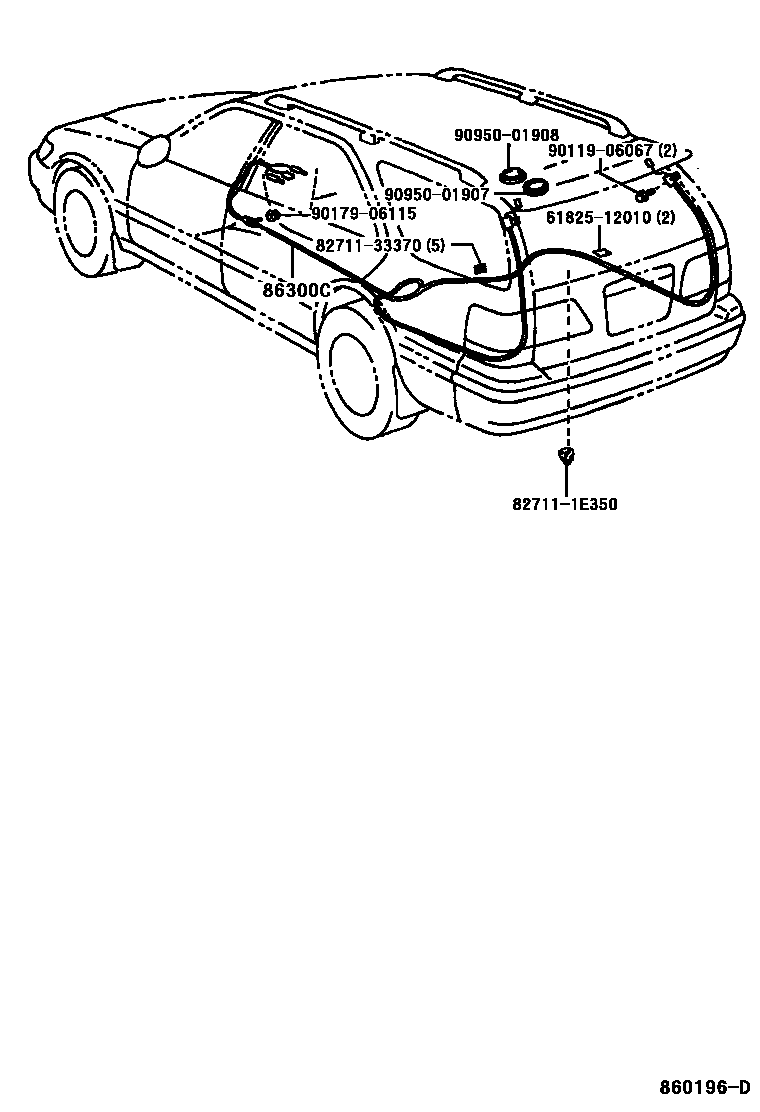

Toyota CAMRY antenna EPC diagram — 860196D
antenna — 860196D (199612 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011MNoise filter90980-04129 · 90980-05304
86101Antenna wire sub-assembly86101-33070
86300CAmplifier antenna assembly86300-33240
