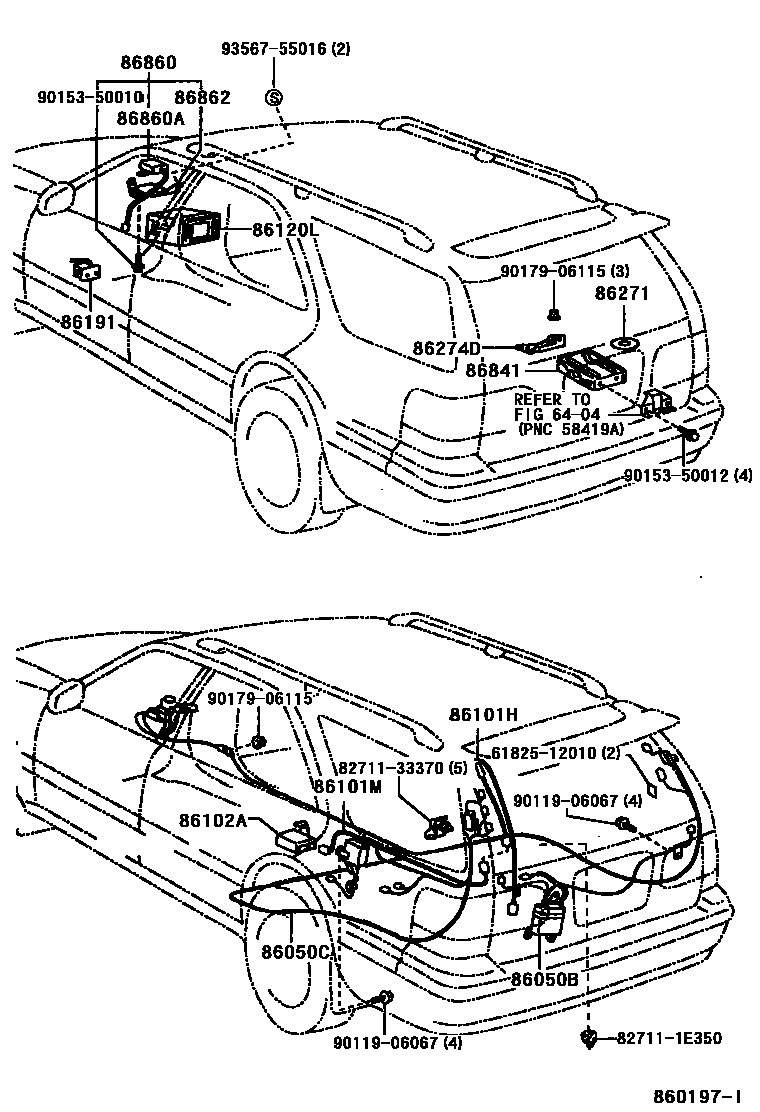

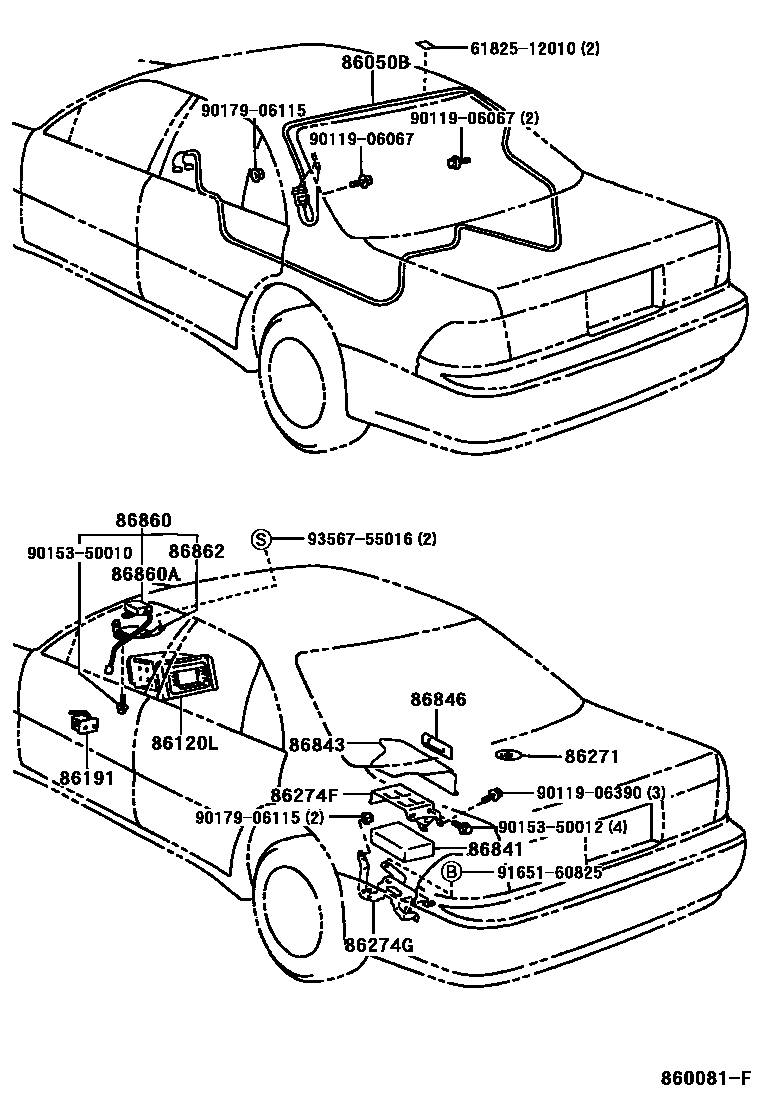

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050B | Monitor antenna assembly | 86050-33020 · 86050-33030 · 86050-33060 · 86050-33070 |
| 86050C | Monitor antenna assembly | 86050-33040 · 86050-33080 |
| 86101H | Antenna wire sub-assembly | 86101-33270 · 86101-33271 · 86101-33310 |
| 86101M | Antenna wire sub-assembly | 86101-33280 · 86101-33300 |
| 86102A | Antenna switch sub-assembly | 86102-33010 · 86102-33020 |
| 86120L | Navigation receiver assembly | 86120-33190 · 86120-33191 · 86120-33192 · 86120-33200 · 86120-33201 · 86120-33202 · 86120-33290 |
| 86191 | Video (Video Splicer) Terminal | 86191-32010 |
| 86271 | CD | 86271-30470 · 86271-33010 · 86271-33011 · 86271-33020 · 86271-44020 |
| 86274D | CD player stand | 86274-33100 · 86274-33101 |
| 86274F | No. 2 CD player stand | 86274-33080 · 86274-41020 |
| 86274G | No. 3 CD player stand | 86274-33090 |
| 86841 | Navigation ECU | 86841-20010 · 86841-33010 · 86841-33011 · 86841-33012 · 86841-33013 · 86841-33020 · 86841-33040 · 86841-33041 |
| 86846 | Navigation ECU board | 86846-33010 · 86846-33020 |
| 86860 | Navigation antenna assembly | 86860-33020 · 86860-33040 |
| 86860A | navigation antenna | 86861-33010 |
| 86862 | Navigation antenna bracket | 86862-33010 |
