Toyota CAMRY 扬声器 — Figure 8602

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 4 PNC and OE references.

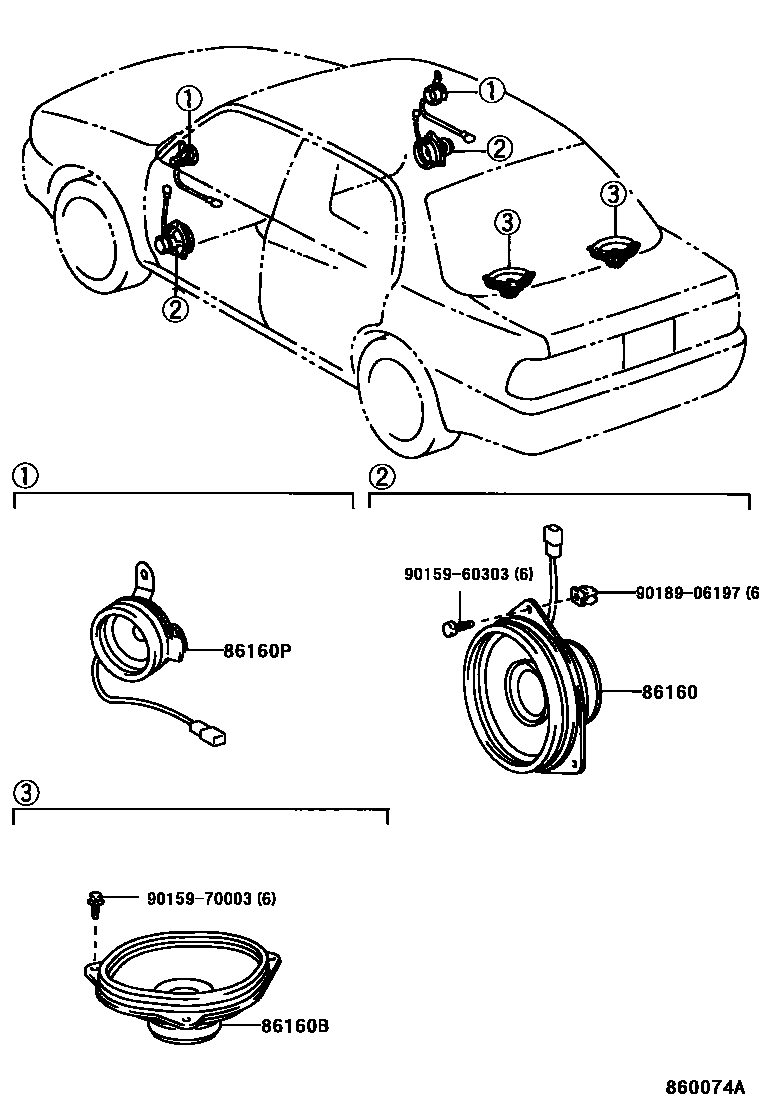

Toyota CAMRY 扬声器 EPC diagram — 860074A
扬声器 — 860074A (199612 – 999999)

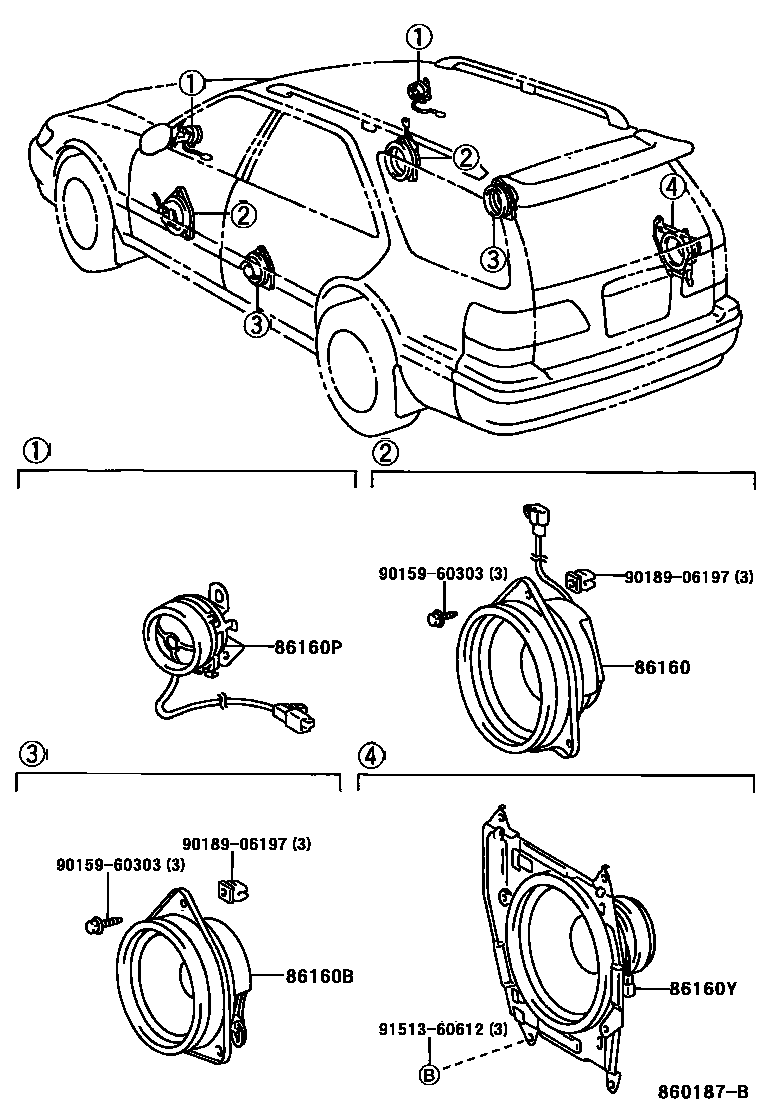

Toyota CAMRY 扬声器 EPC diagram — 860187B
扬声器 — 860187B (199612 – 999999)

PNC and OE references

PNCPart nameOE numbers
86160No. 1 front speaker assembly86160-33330
86160BRear speaker assembly86160-33400 · 86160-33540
86160PNo. 2 front speaker assembly86160-33340 · 86160-33390
86160YNo. 2 rear speaker assembly86160-33551
