Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

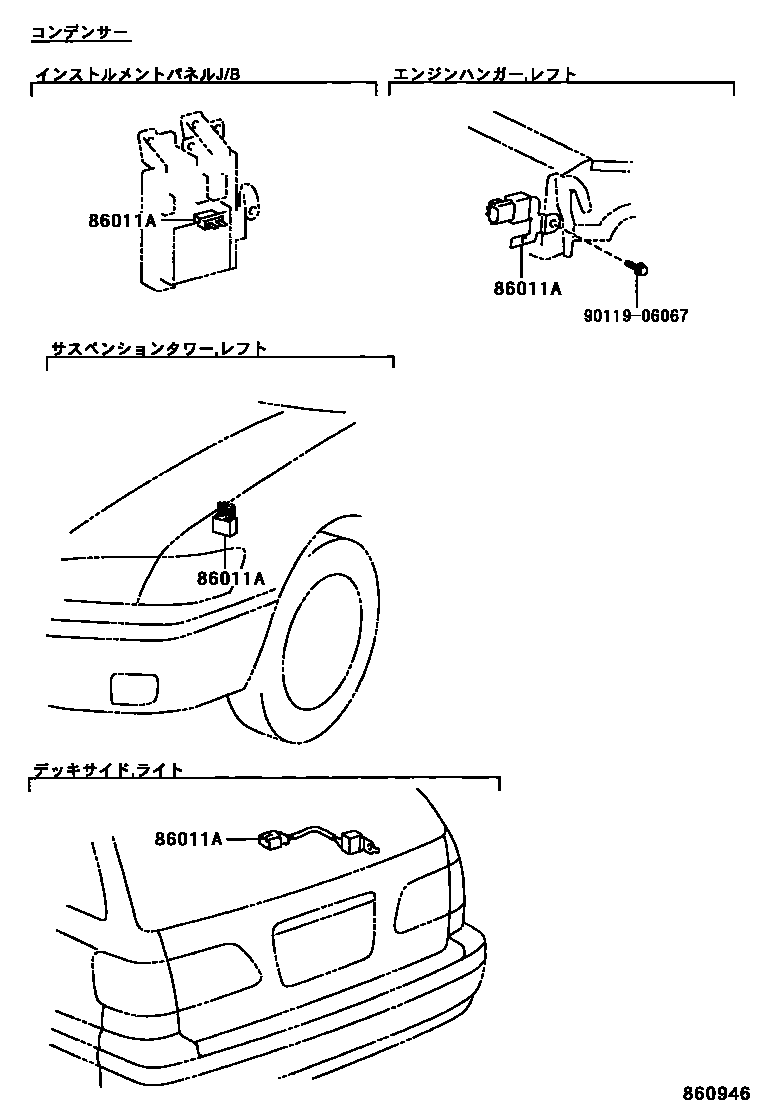

| 86011A | radio settings phase modulator | 90980-04066 · 90980-04083 · 90980-04128 · 90980-04131 |

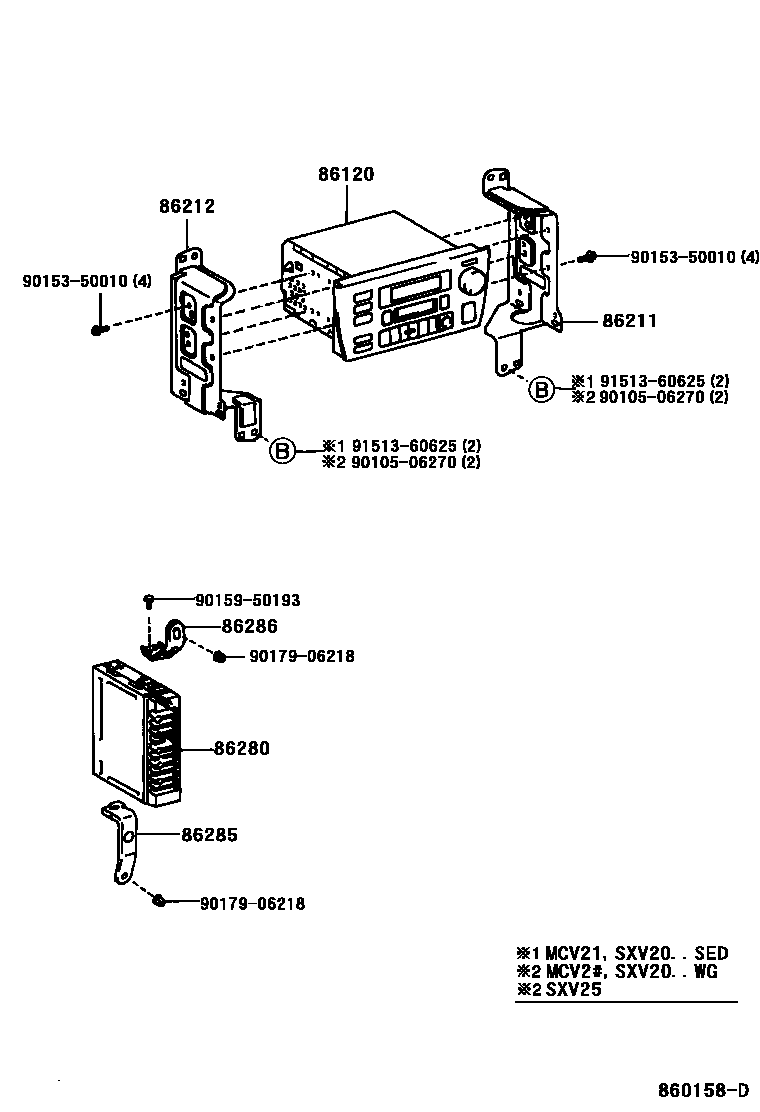

| 86120 | Radio assembly | 86120-14860 · 86120-28170 · 86120-2B560 · 86120-33180 · 86120-33270 · 86120-33280 |

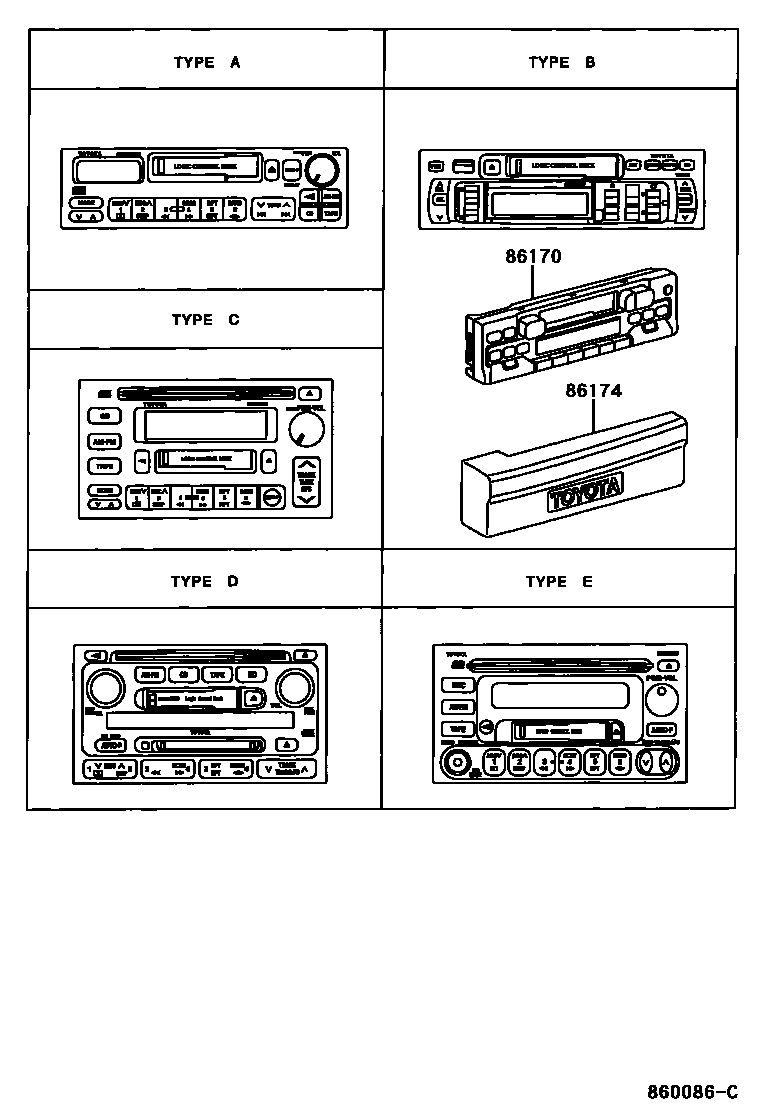

| 86170 | Radio switch and volume assembly | 86170-20050 |
| 86174 | Switch and volume box | 86174-20010 |
| 86211 | No. 1 radio bracket | 86211-33080 · 86211-33120 · 86211-33130 |
| 86212 | No. 2 radio bracket | 86212-33080 · 86212-33120 · 86212-33130 |
| 86280 | Stereo parts amplifier assembly | 86280-33100 |
| 86285 | Amplifier Stand No. 1 | 86285-33040 |
| 86286 | Amplifier Stand No. 2 | 86286-33020 |
