Toyota CAMRY 后清洗器 — Figure 8504

Toyota CAMRY EPC diagram 8504, 后清洗器, with 2 images and 11 PNC and OE references.

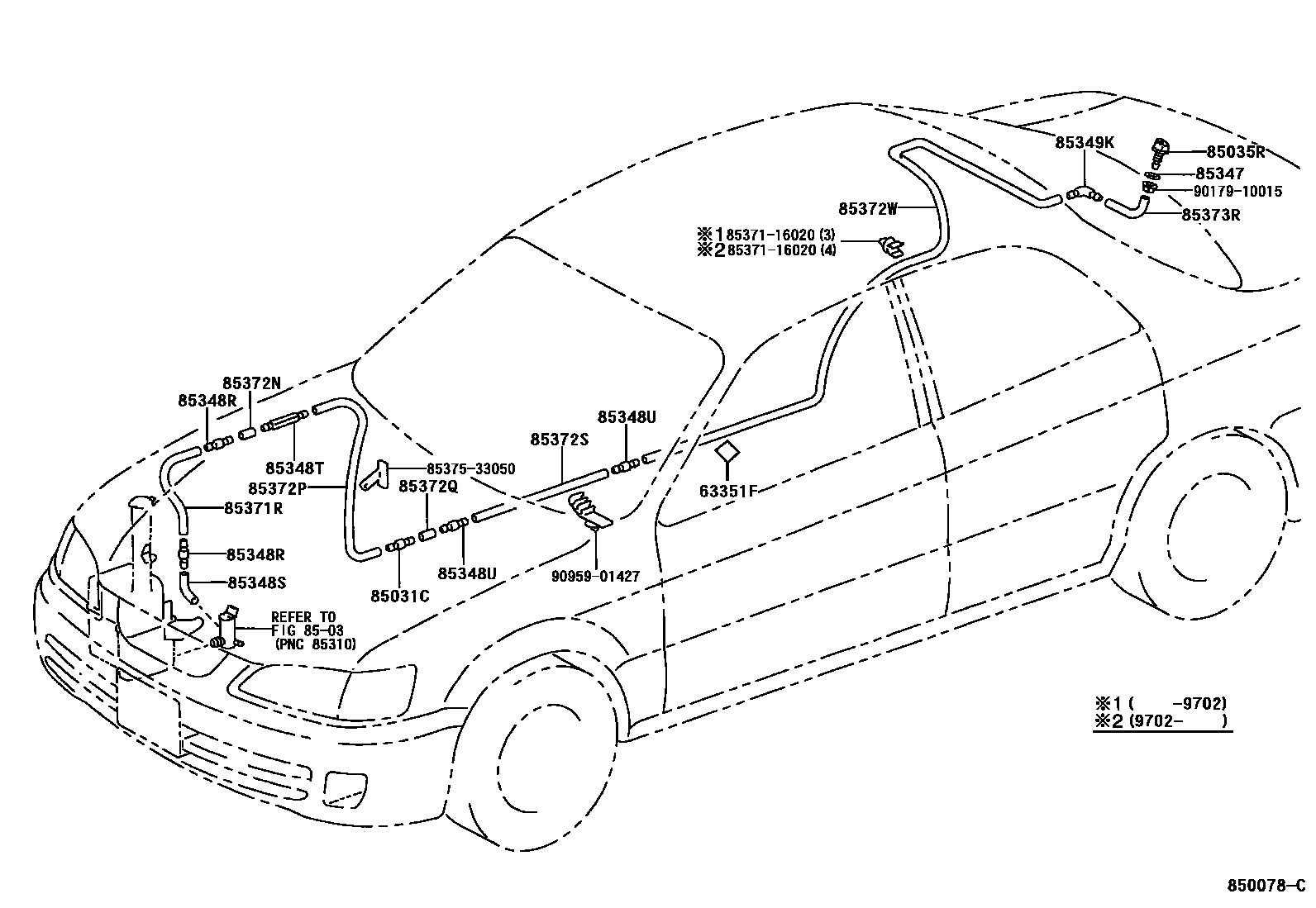

Toyota CAMRY 后清洗器 EPC diagram — 850078C
后清洗器 — 850078C (199612 – 999999)

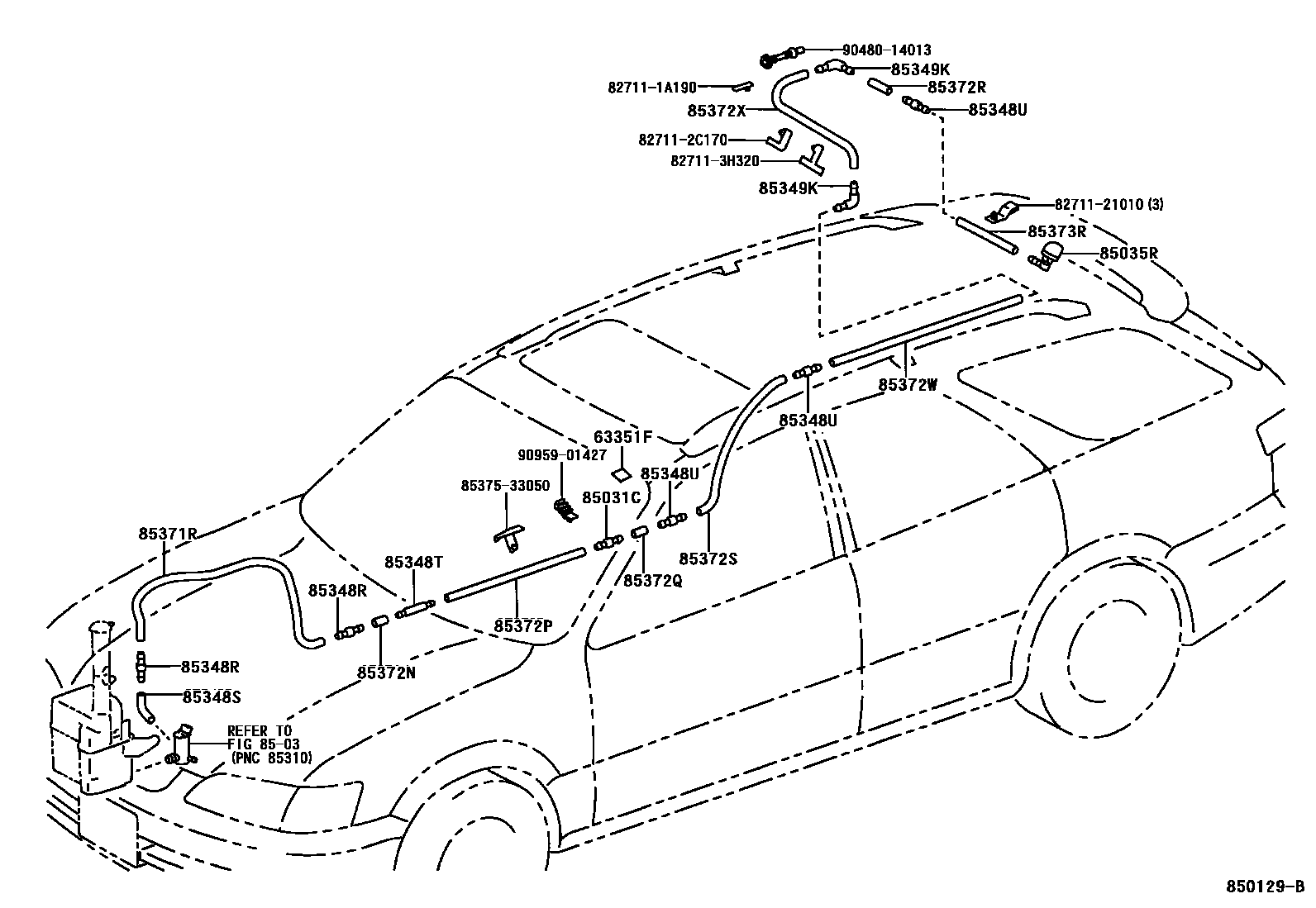

Toyota CAMRY 后清洗器 EPC diagram — 850129B
后清洗器 — 850129B (199612 – 999999)

PNC and OE references

PNCPart nameOE numbers
63351Froof lining pads63351-33010
85031CCleaner valve sub-assembly85375-12520
85035RRear washer nozzle sub-assembly85391-20060 · 85395-33020
85347Rear washer seal85347-12010
85348RNo. 1 rear washer hose connector85349-89122
85348SNo. 1 rear cleaner elbow joint85355-14481
85348TNo. 2 rear washer hose connector85349-32150
85348UNo. 3 rear washer hose connector85349-89122
85349KNo. 2 rear cleaner elbow joint85355-20200
85372NNo. 1 rear washer hose (from connector to connector)85379-32240
85372WNo. 5 rear washer hose (from connector to connector)90099-59151 · 90446-07001
