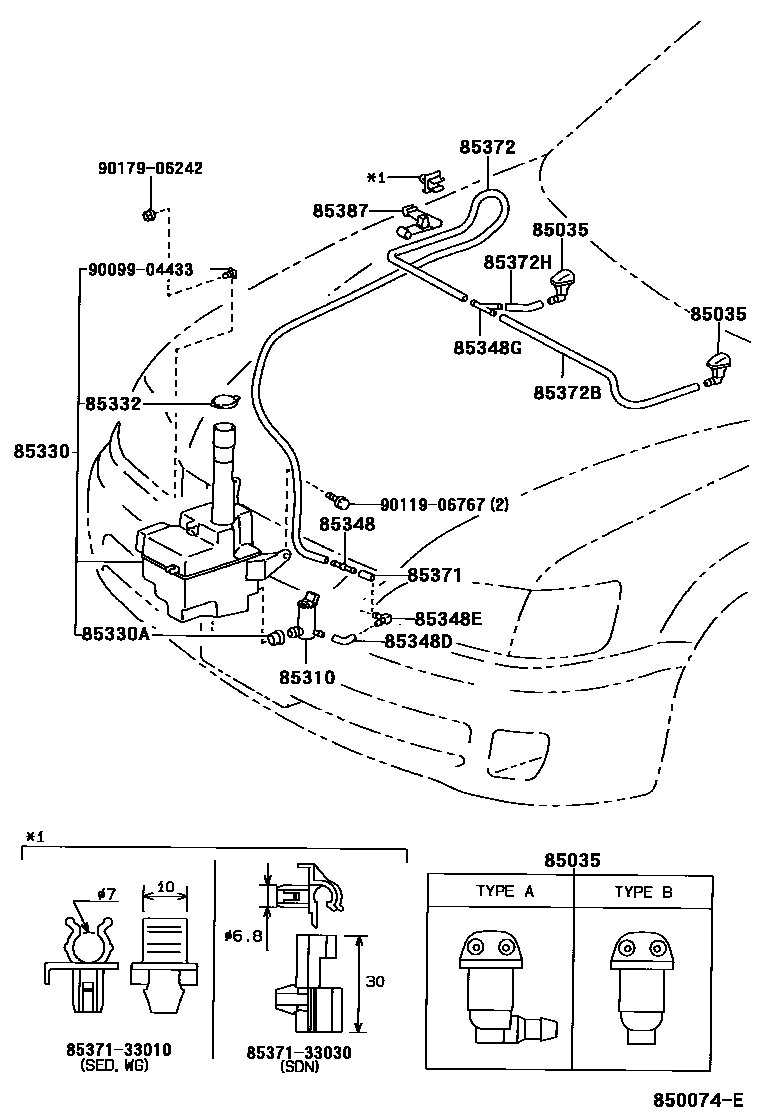

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12050 |
| 85310 | Windshield washer motor and pump assembly | 85330-10280 · 85330-10290 |
| 85330 | Windshield washer fluid tank assembly | 85315-33050 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-33050 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85348E | No. 2 windshield washer elbow joint | 85355-20200 |
| 85348G | Windshield washer hose connector No. 2 | 85348-14390 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-22410 |
