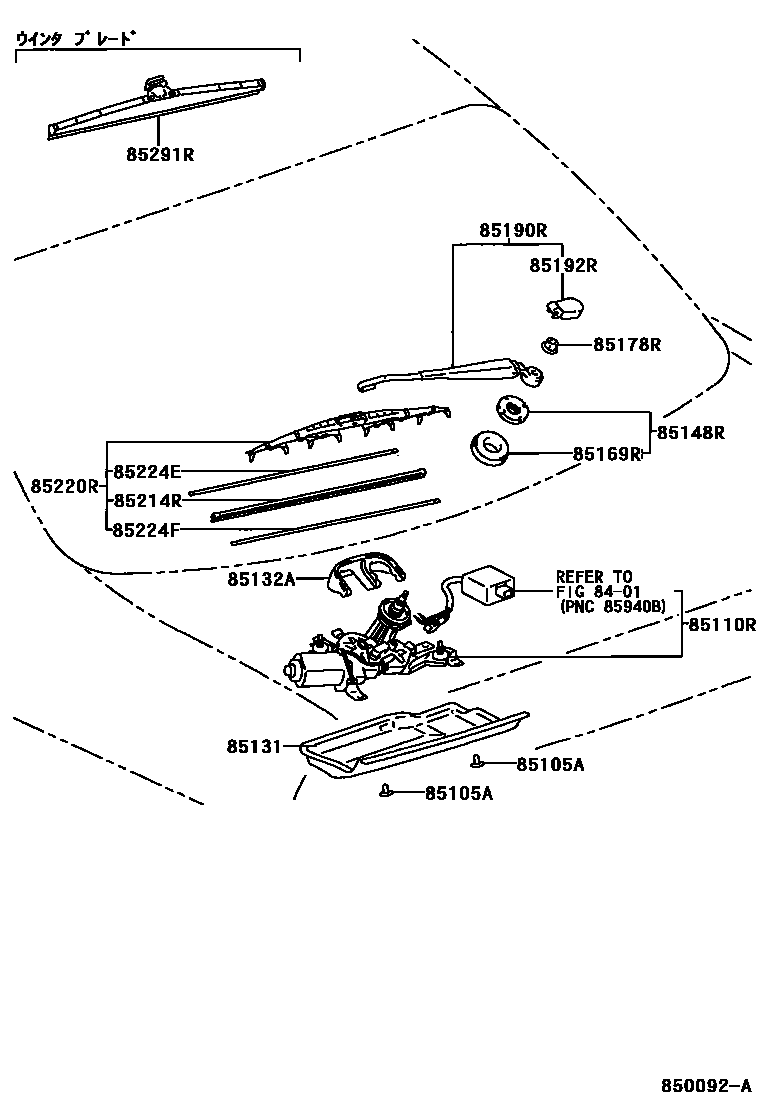

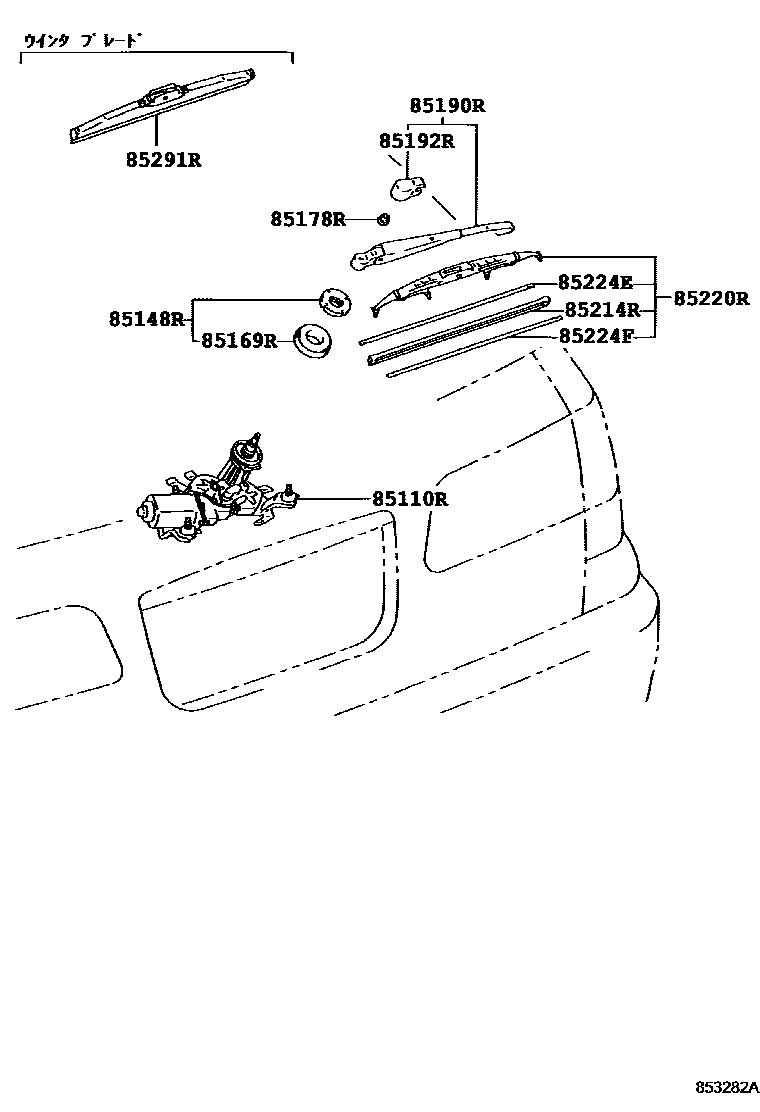

Toyota CAMRY 后刮水器 — Figure 8502
Toyota CAMRY EPC diagram 8502, 后刮水器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85105A | Rear wiper protector clip | 90467-08186 |
| 85110R | Rear wiper motor assembly | 85130-33020 · 85130-33040 |
| 85131 | Rear wiper motor cover | 85131-33030 |
| 85148R | Rear wiper link pivot nut with gasket seal | 85133-12770 |
| 85169R | No. 1 rear wiper link pivot washer | 90210-28002 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-33020 · 85241-33040 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85214R | Rear wiper rubber strip | 85214-33140 · 85214-60050 |
| 85220R | Rear wiper blade assembly | 85242-33030 · 85242-33040 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-33100 · 85224-60080 · 85224-60100 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-33100 · 85224-60080 · 85224-60100 |
| 85291R | Rear wiper blade for winter | 85291-60030 · 85291-60060 |
