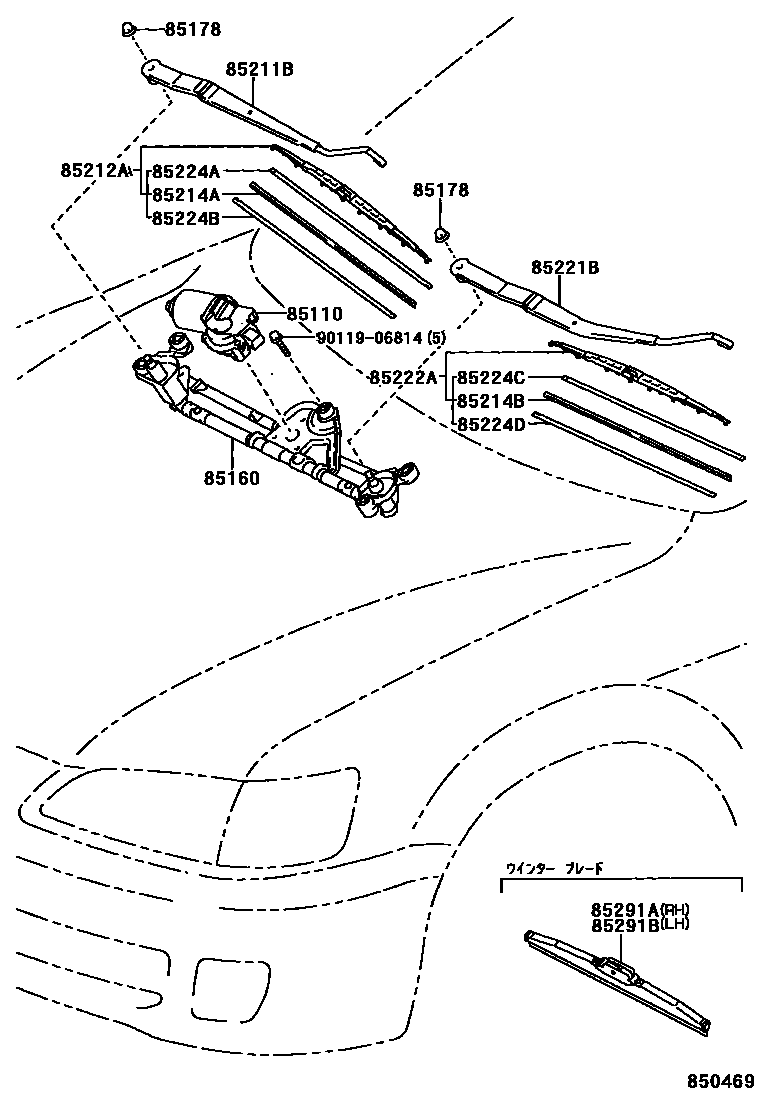

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-33200 |
| 85160 | Windshield wiper connecting rod assembly | 85150-33140 |
| 85178 | Nut (for securing front wiper arm) | 90176-10005 |
| 85211B | Right front wiper arm | 85211-33070 |
| 85212A | Right front wiper blade | 85212-33110 |
| 85214A | Right wiper rubber strip | 85214-20280 |
| 85214B | Left wiper rubber strip | 85214-35040 |
| 85221B | Left front wiper arm | 85221-33070 |
| 85222A | Left front wiper blade | 85222-33060 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-20280 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-20280 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-35040 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-35040 |
| 85291A | Right front wiper blade for winter use | 85291-22050 · 85291-30050 |
| 85291B | Left front wiper blade for winter use | 85291-30030 |
