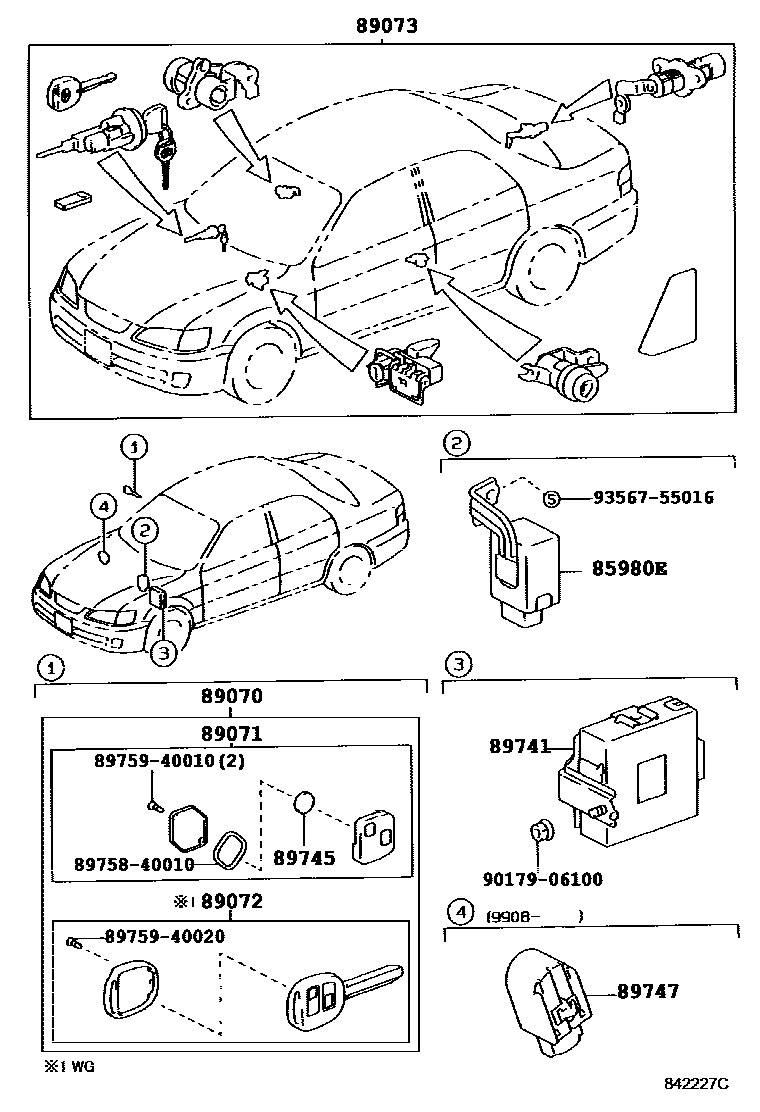

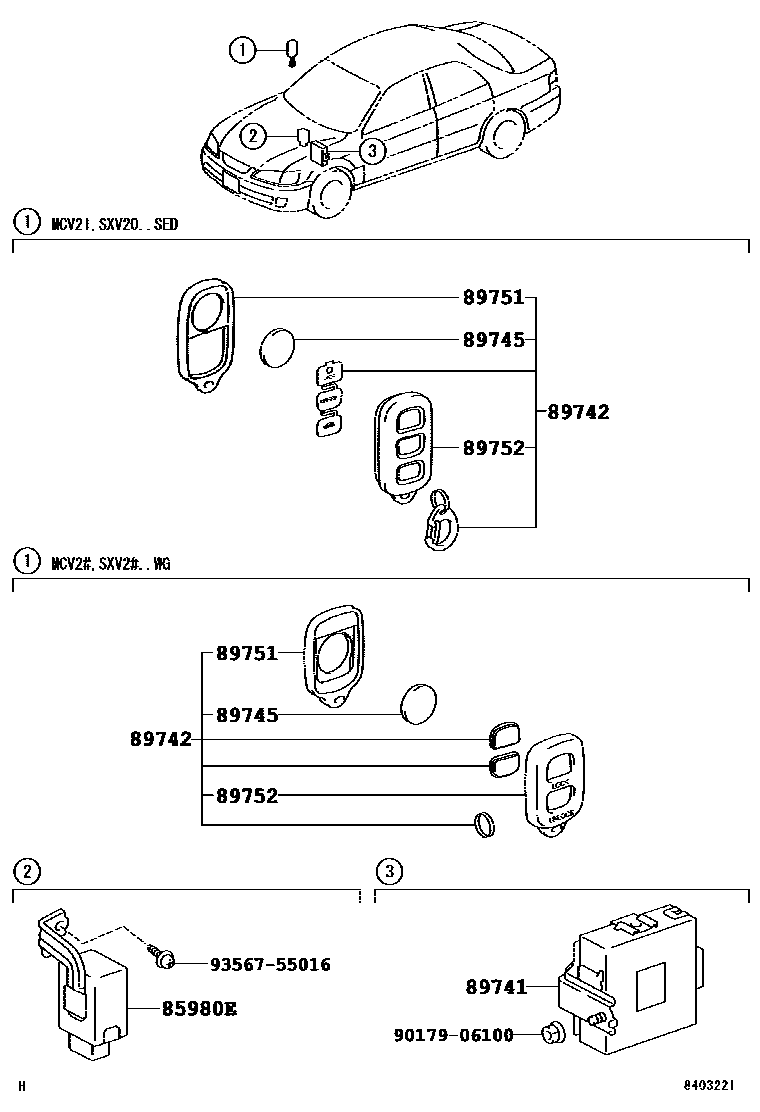

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85980E | Door control relay assembly | 85980-33090 |
| 89070 | Remote key assembly | 89070-33060 · 89070-33090 |
| 89071 | Remote key sub-assembly module assembly | 89071-33020 · 89071-50010 · 89071-50011 |
| 89072 | Remote key shell assembly | 89072-33020 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 89073-33020 · 89073-33040 · 89073-33170 · 89073-33280 |
| 89741 | door control receiver | 89741-33130 · 89741-33142 · 89741-33170 · 89741-33171 · 89741-33240 · 89741-33350 |
| 89742 | remote key | 89742-33120 · 89742-33130 |
| 89745 | Transmitter battery | 89745-40010 · 89745-50010 |
| 89747 | Remote door lock buzzer | 89747-51010 |
| 89751 | Transmitter housing cover | 89751-44050 · 89751-50120 |
| 89752 | transmitter housing | 89752-44020 · 89752-50030 |
