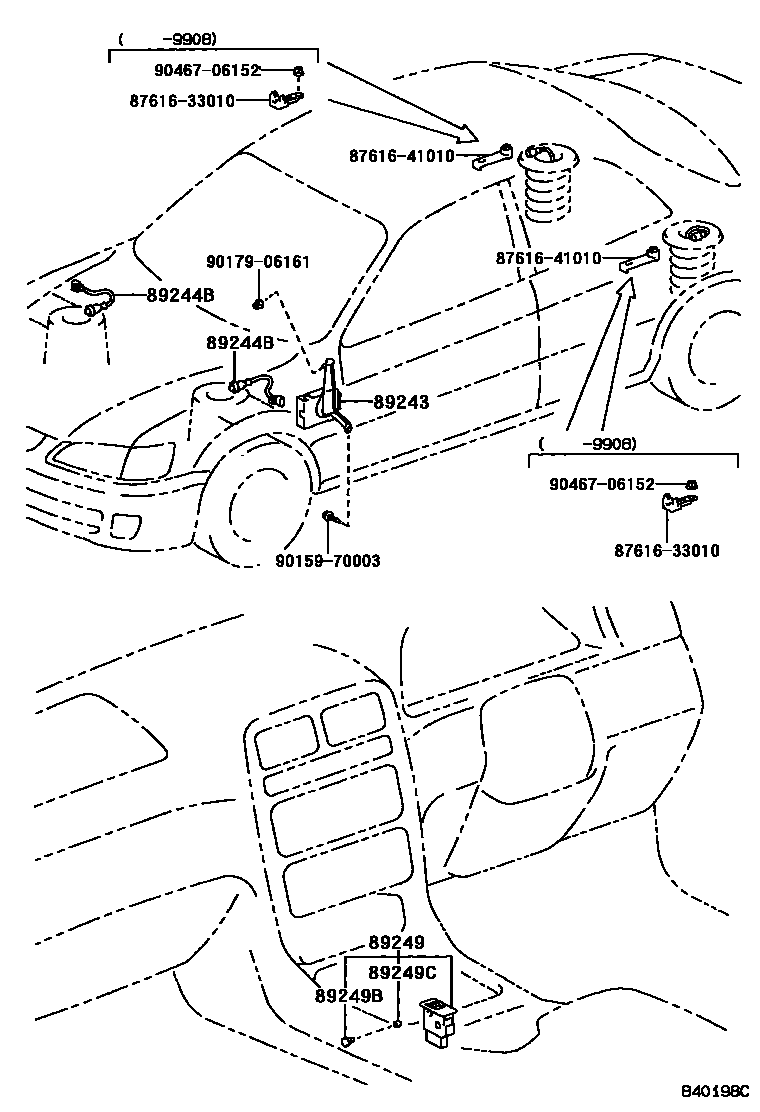

Toyota CAMRY 电子调节悬架 — Figure 8419
Toyota CAMRY EPC diagram 8419, 电子调节悬架, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89243 | Damper control ECU | 89243-33051 · 89243-33052 · 89243-33060 |
| 89244B | Front shock absorber control harness | 89244-33030 |
| 89249 | Damper control switch | 89249-33020 |
| 89249B | Damper control switch bulb | 84999-10700 |
| 89249C | Damper control switch cover bulb | 84998-10770 |
