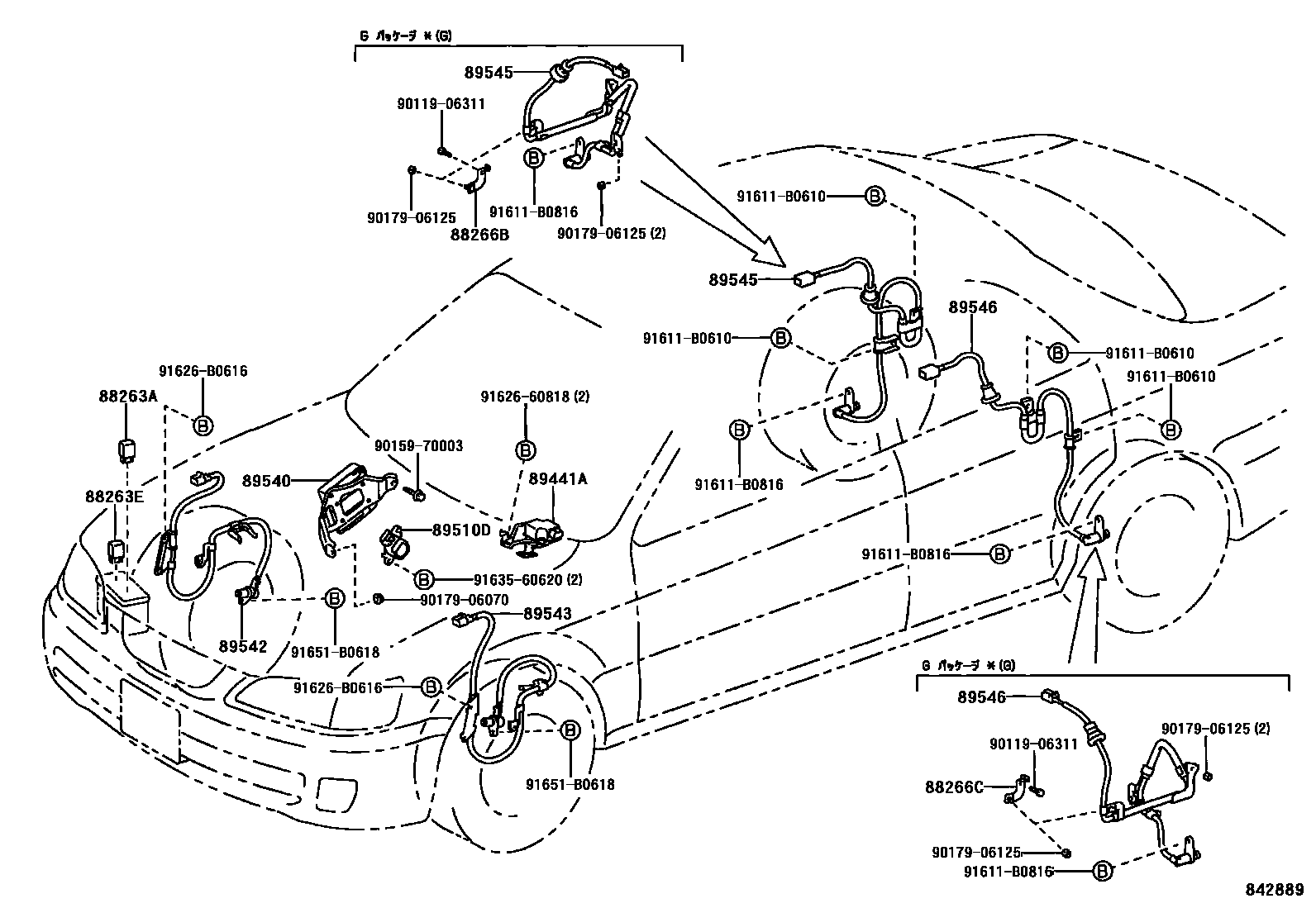

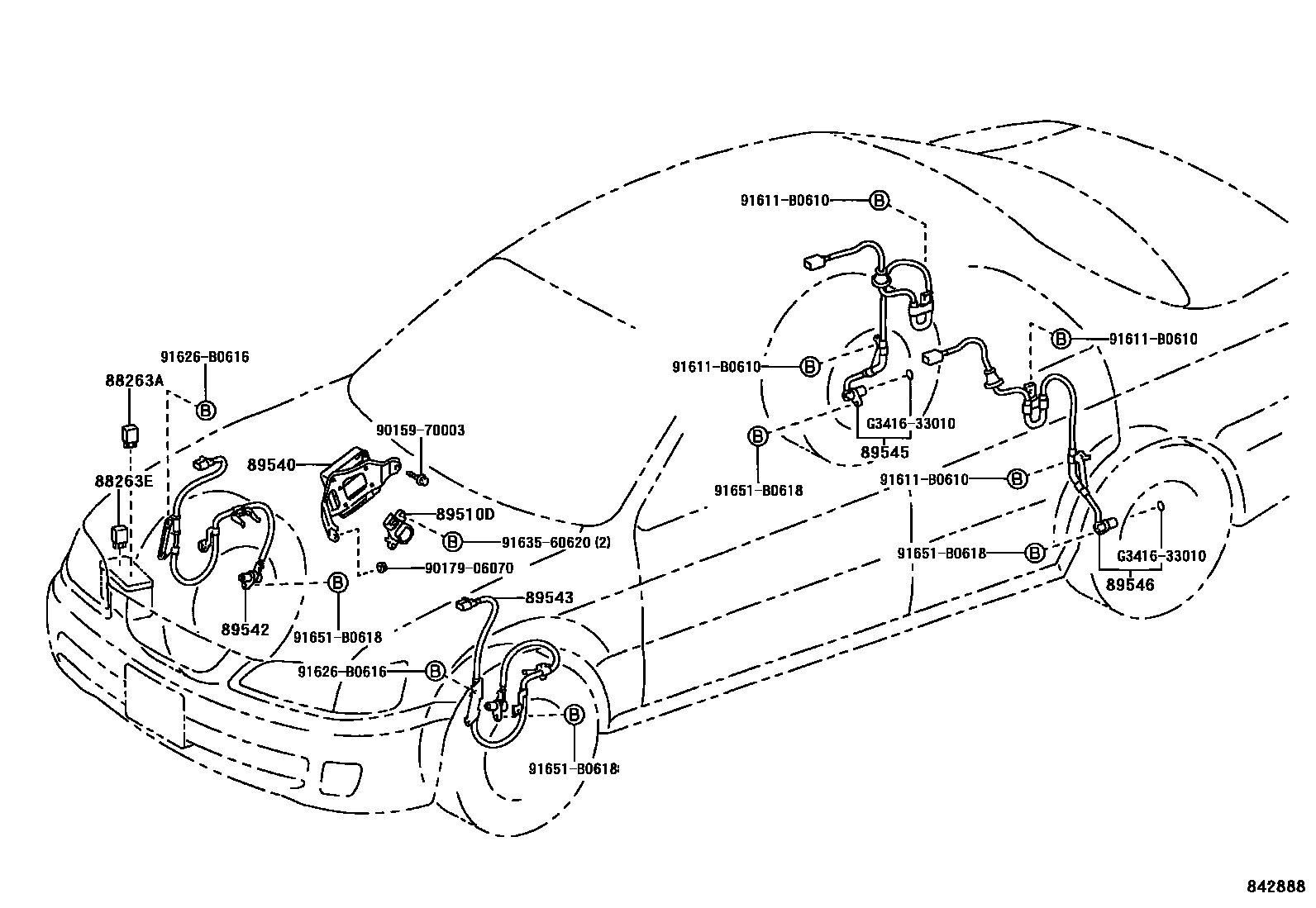

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263A | Anti-skid control relay | 88263-14110 |
| 88263E | No. 2 anti-skid control relay | 88263-24030 |
| 88266B | No. 1 anti-skid control sensor clip | 88266-33190 |
| 88266C | No. 2 anti-skid control sensor clip | 88266-33200 |
| 89441A | deceleration sensor | 89440-33011 |
| 89510D | Brake pedal stroke sensor assembly | 89510-33010 |
| 89540 | Anti-skid control ECU assembly | 89540-33032 · 89540-33033 · 89540-33040 · 89540-33050 · 89540-33101 · 89540-33160 · 89540-33180 · 89540-33190 · 89540-33220 · 89540-33240 · 89540-33250 |
| 89542 | Right front wheel speed sensor | 89542-33030 · 89542-33050 |
| 89543 | Left front wheel speed sensor | 89543-33030 · 89543-33050 |
| 89545 | Right rear wheel speed sensor | 89545-33020 · 89545-33030 · 89545-33040 |
| 89546 | Left rear wheel speed sensor | 89546-33020 · 89546-33030 · 89546-33040 |
