Toyota CAMRY 电子燃油喷射系统 — Figure 8404

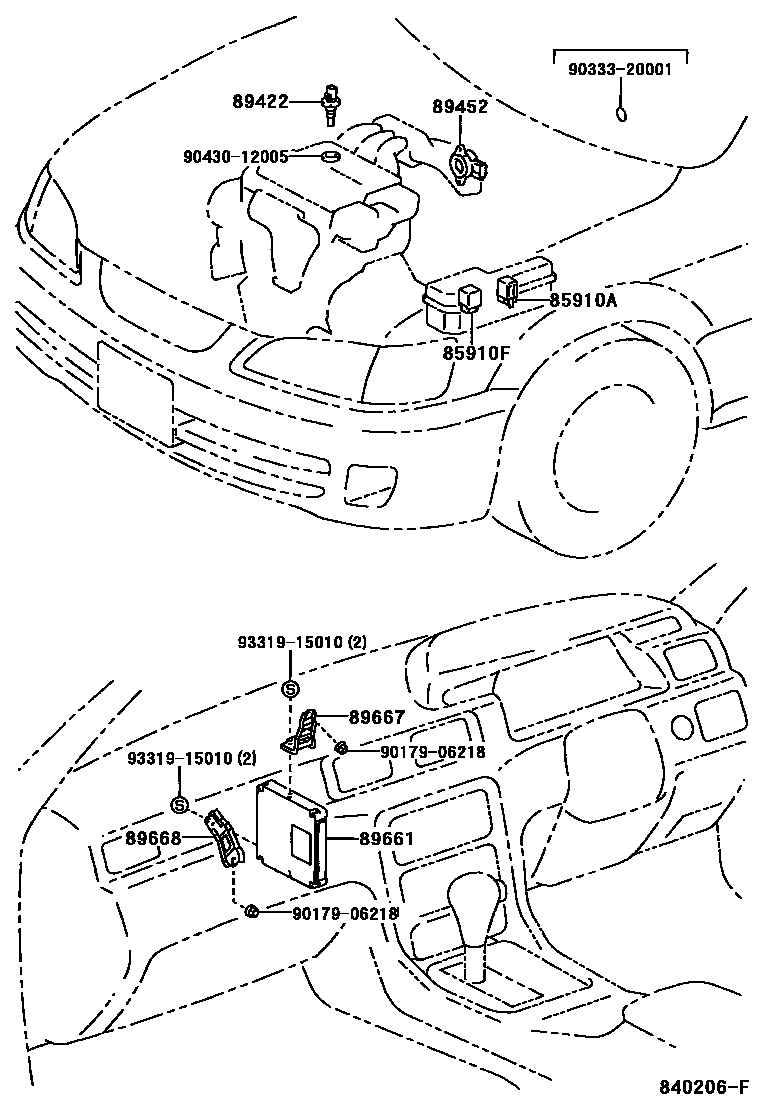

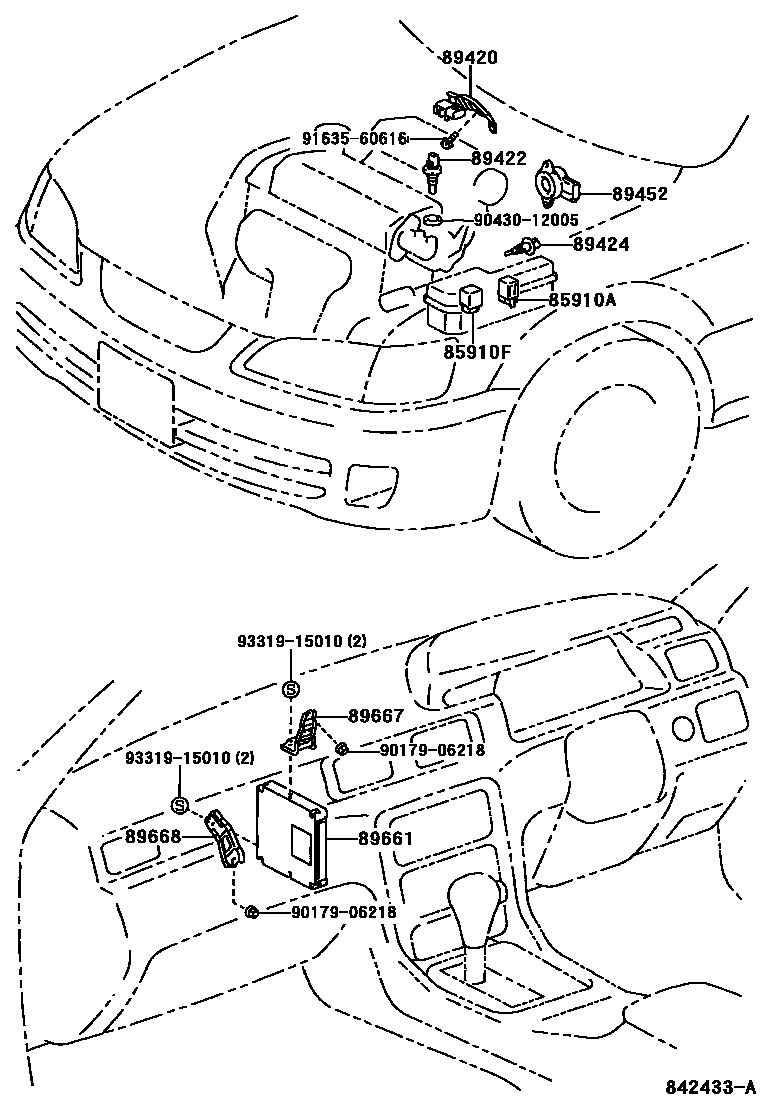

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 |
| 85910F | ECU relay (for EFI) | 90987-02012 |
| 89420 | Vacuum sensor assembly | 89420-06040 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 · 89424-33010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-33030 · 89452-33040 |
| 89661 | Engine control ECU | 89661-3T010 · 89661-3T020 · 89661-3T110 · 89661-3T190 · 89661-3T200 · 89661-3T250 · 89661-3T350 · 89661-3T360 · 89661-3T390 · 89661-3T480 · 89661-3T490 · 89661-3T500 |
| 89667 | Engine control ECU bracket | 89667-33070 · 89667-33080 |
| 89668 | No. 2 engine control ECU bracket | 89668-33070 · 89668-33090 |
