Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 8 images and 89 PNC and OE references.
PNC and OE references

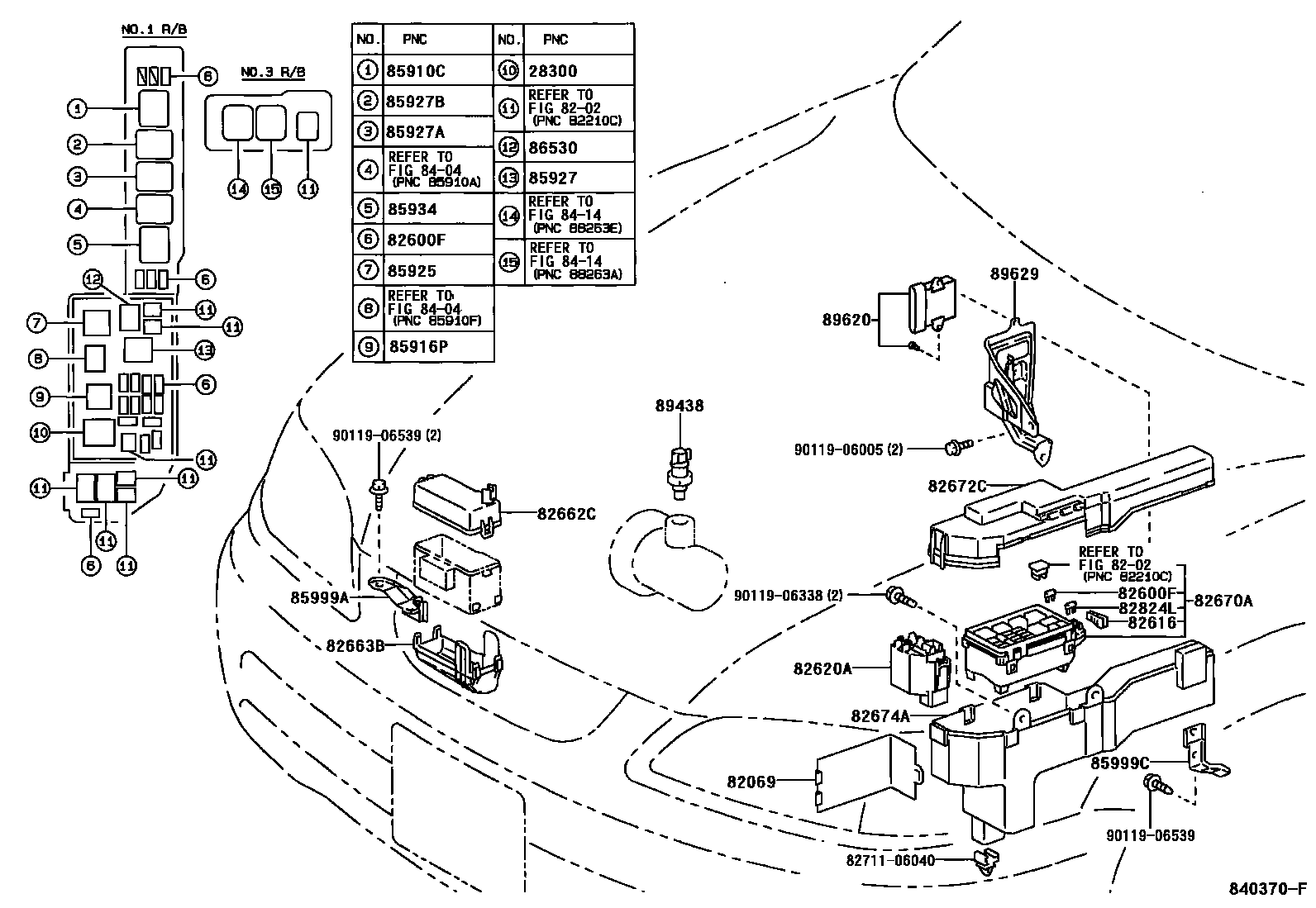

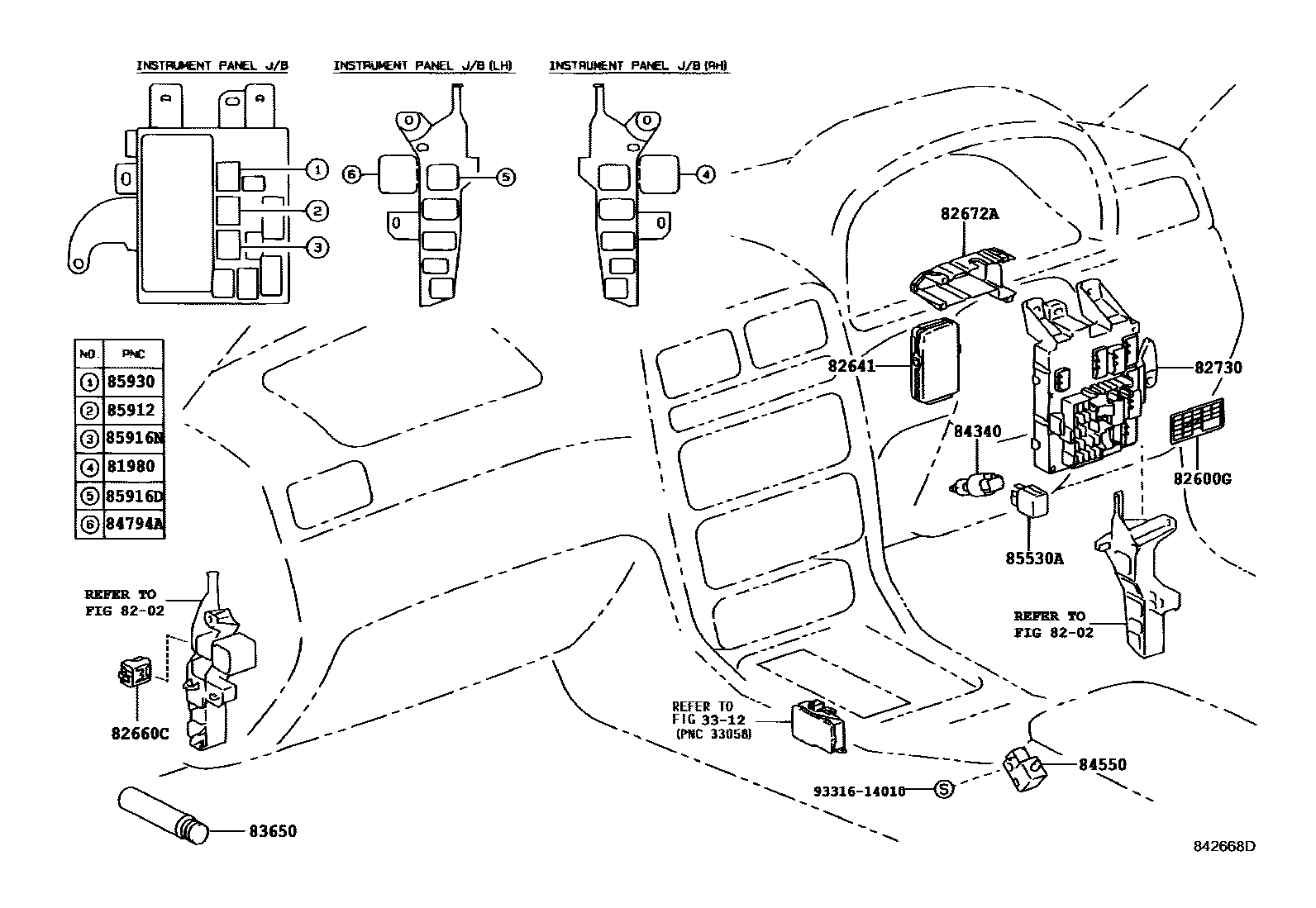

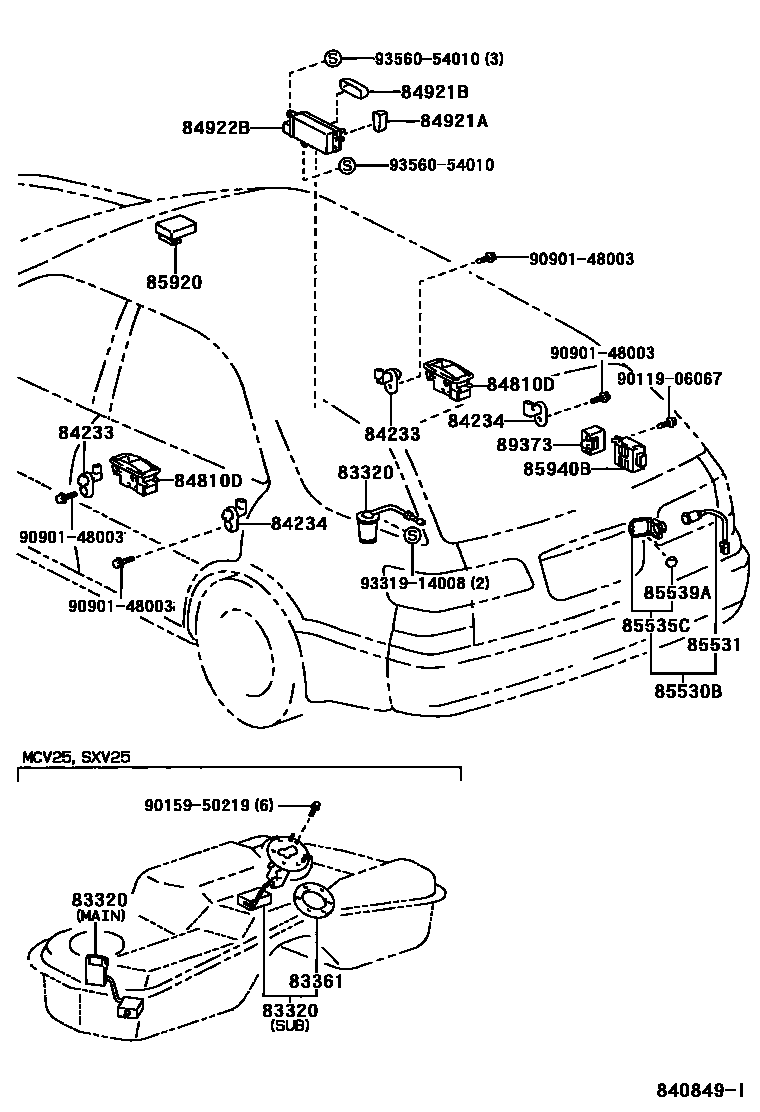

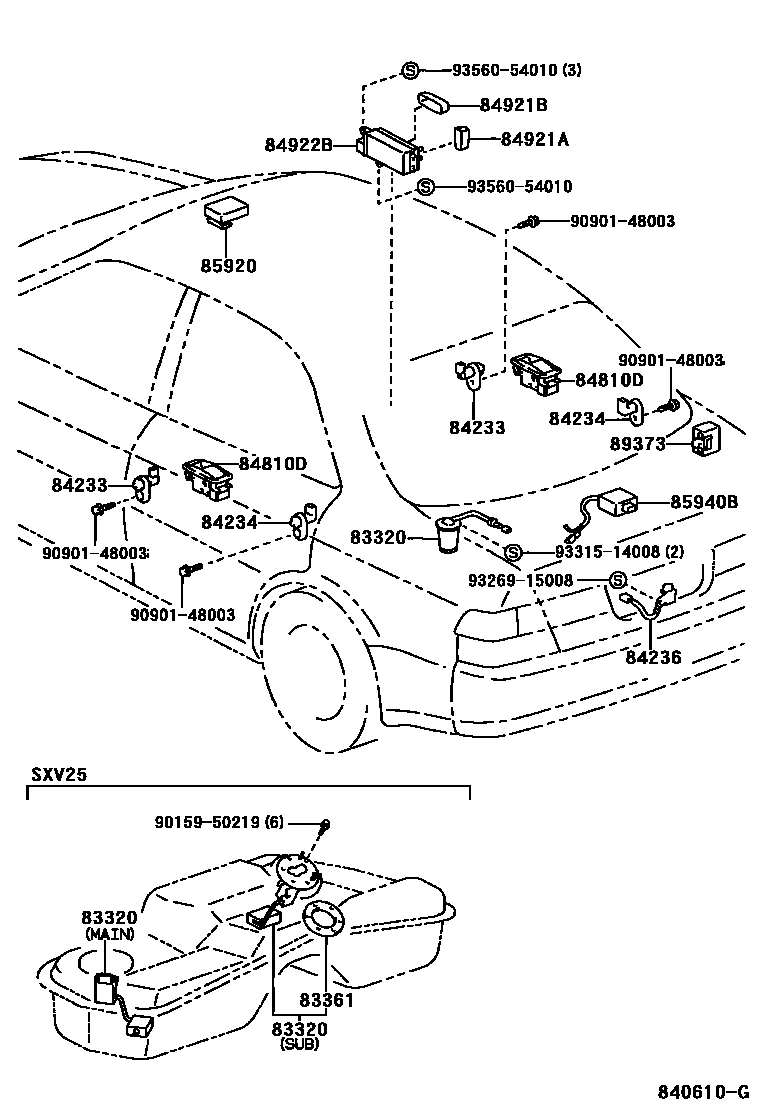

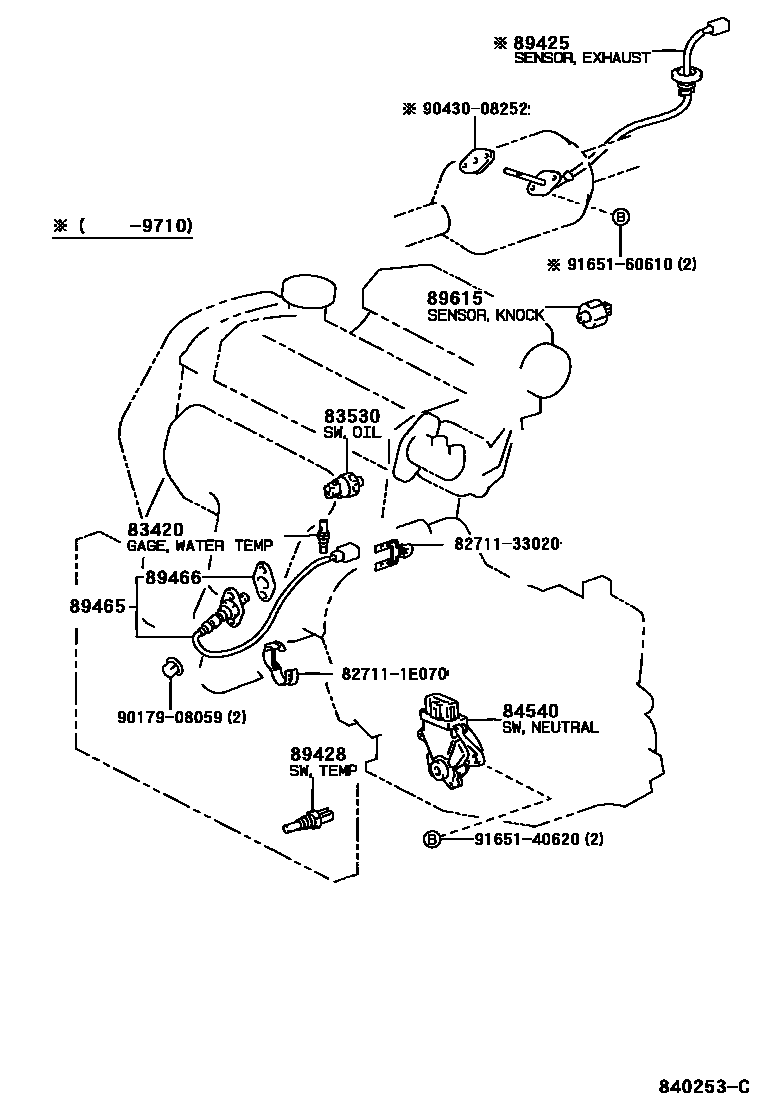

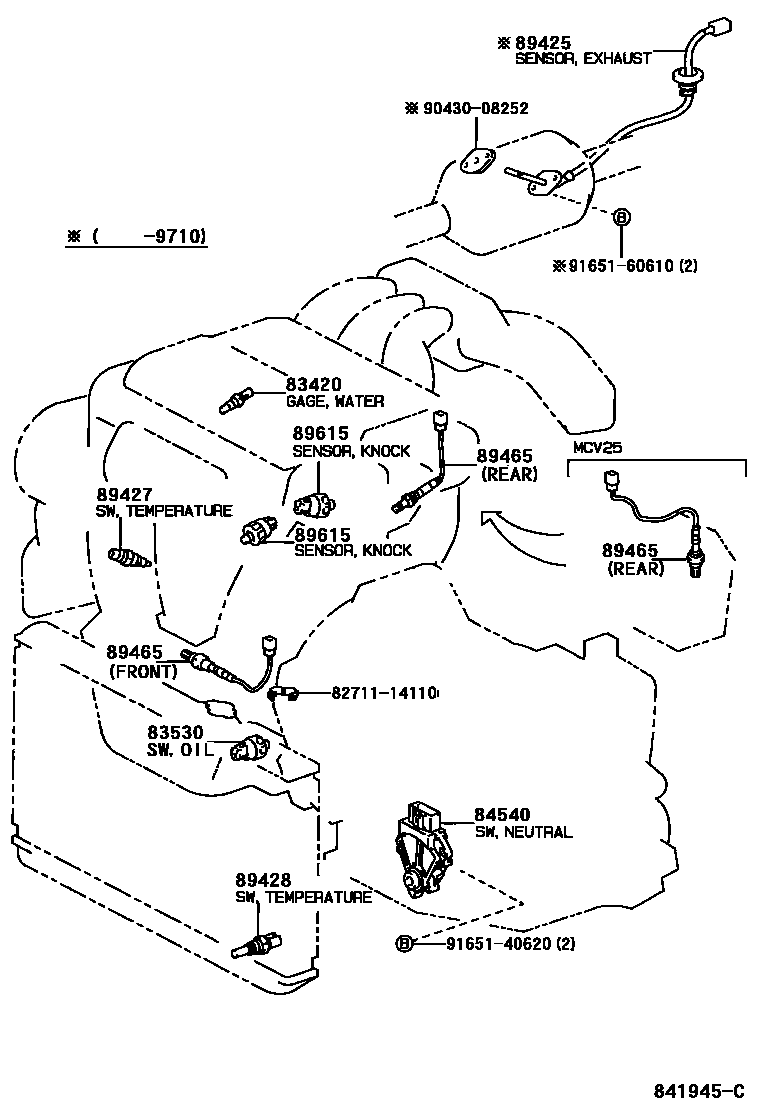

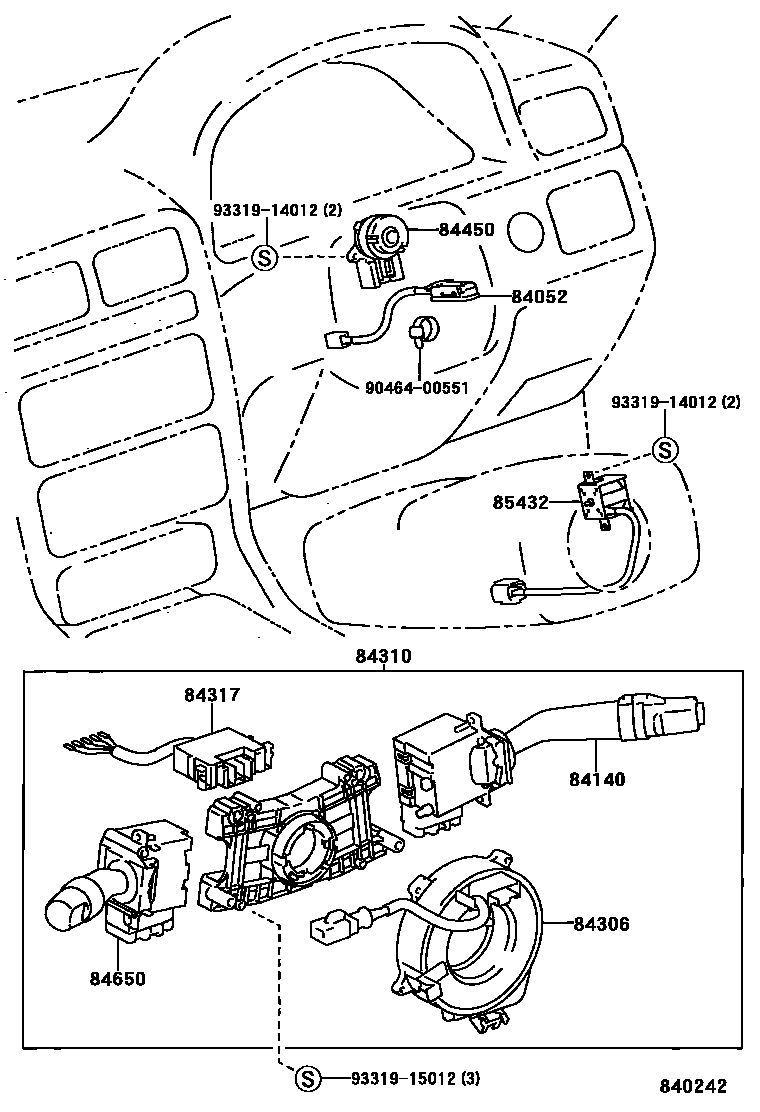

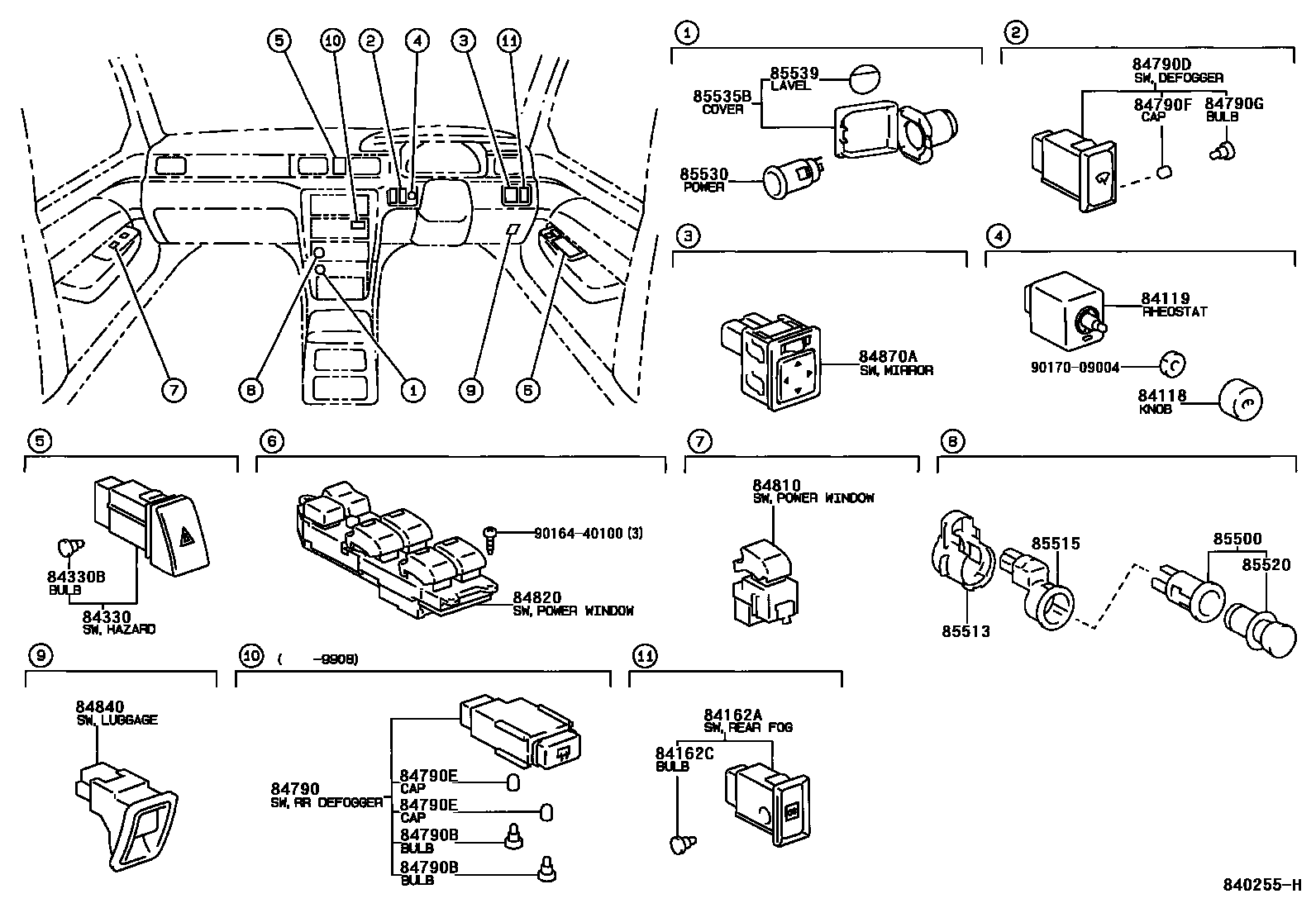

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-12110 |
| 82069 | Junction box cover assembly | 82069-06010 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90982-08202 · 90982-09012 |
| 82600G | Warning nameplate (for fuses) | 82683-33130 · 82683-33150 |
| 82616 | fuse puller | 82616-20010 |
| 82620A | Fuse box assembly | 82620-06010 · 82620-45010 |
| 82641 | Integrated relay No. 1 | 82641-33060 · 82641-33061 |
| 82660C | Relay assembly | 82660-20340 |
| 82662C | No. 3 relay box upper cover | 82662-33050 |
| 82663B | No. 3 relay box lower cover | 82663-33020 |
| 82670A | No. 1 junction box assembly | 82720-06010 · 82720-06020 |
| 82672A | Junction box cover | 82672-33150 |
| 82672C | Junction box cover | 82672-06010 · 82672-0W010 · 82672-0W011 · 82672-0W012 · 82672-0W020 · 82672-0W030 · 82672-0W031 |
| 82674A | Junction box lower cover | 82674-06010 |
| 82730 | Instrument panel junction box assembly | 82730-0W010 · 82730-0W020 |
| 82824L | Shorting pin | 82824-20140 |
| 83320 | Fuel gauge sensor assembly | 83320-33040 · 83320-33050 · 83320-80355 |
| 83361 | fuel gauge sensor gasket | 83361-30020 |
| 83420 | Water temperature sensor assembly | 83420-20040 · 83420-AA010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-30090 · 83530-60020 · 83530-AA011 |
| 83650 | fuse | 90986-01005 |
| 84052 | Unlock warning switch assembly | 84052-33040 |
| 84118 | Light control rheostat button | 84118-20030 |
| 84119 | Light control rheostat | 84119-33110 |
| 84140 | Headlight dimmer switch assembly | 84140-20440 · 84140-20540 · 84140-33030 · 84140-33060 |
| 84162A | Rear fog light switch | 84165-30030 |
| 84162C | Bulb (for rear fog light switch) | 84999-20120 |
| 84233 | Door control light switch assembly (for front door) | 84231-33071 · 84231-53010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-33071 · 84231-53010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20380 · 84231-41010 |
| 84306 | Spiral cable sub-assembly | 84306-30120 · 84306-33060 |
| 84310 | Turn signal switch assembly | 84310-33550 · 84310-33560 · 84310-33570 · 84310-33580 · 84310-33600 · 84310-33610 · 84310-33620 · 84310-33630 · 84310-33700 · 84310-33710 · 84310-33820 · 84310-33830 · 84310-33850 · 84310-33860 · 84310-33870 · 84310-3T020 |
| 84317 | steering position sensor | 84317-33040 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 |
| 84340 | brake light switch assembly | 84340-32090 · 84340-32110 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84540 | Neutral start switch assembly | 84540-20200 · 84540-20220 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-2D850 · 84652-2D860 |
| 84790 | Rear window defogger switch assembly | 84790-33030 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10410 · 84999-10450 |
| 84790D | Windshield defogger switch assembly | 84790-12360 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10060 · 84998-10730 |
| 84790F | Bulb cover (for windshield defogger switch) | 84998-10640 |
| 84790G | Bulb (for windshield defogger switch) | 84999-10780 |
| 84794A | Front wiper de-icer relay | 90080-87010 · 90987-02012 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-33040 · 84810-33060 · 84810-33070 · 84810-33080 |
| 84820 | Electric window lift main switch assembly | 84820-33040 |
| 84840 | Trunk door opening switch assembly | 84840-33030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-16040 |
| 84922B | Front right electric seat switch | 84922-33070 |
| 85432 | Key interlock solenoid valve | 85432-33020 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-33010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530A | power outlet relay | 90080-87010 · 90987-02012 |
| 85531 | power socket | 85531-33010 · 85531-33020 |
| 85535B | No. 1 power outlet cover | 85535-33010 · 85535-33030 |
| 85539 | Power socket attention labels | 85539-60010 |
| 85539A | Note label on rear power outlet | 85539-33020 · 85539-60010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90080-87010 · 90987-02012 |
| 85916D | fog light relay | 90987-02012 |
| 85916N | Tail light relay | 90080-87010 · 90987-02012 |
| 85916P | headlight relay | 90987-02006 |
| 85925 | Radiator fan relay | 85925-17010 |
| 85927 | cooling fan relay | 90084-98011 · 90987-03003 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 |
| 85930 | Electric window relay assembly | 90080-87010 · 90987-02012 |
| 85934 | Electromagnetic clutch relay | 90987-02012 |
| 85940B | Rear wiper relay assembly | 85940-32150 · 85940-33060 |
| 85999A | No. 2 relay bracket | 85999-33150 |
| 85999C | No. 3 relay bracket | 85999-33050 |
| 86530 | Speaker relay assembly | 90987-02012 |
| 89373 | Malfunction indicator light sensor | 89373-12130 · 89373-12140 · 89373-12160 · 89373-33130 |
| 89425 | Exhaust gas temperature sensor | 89425-39585 · 89425-39595 · 89425-39605 |
| 89427 | Temperature detection switch | 89428-41010 |
| 89428 | No. 2 temperature detection switch | 89428-33010 · 89428-33020 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-30340 · 89465-33160 · 89465-33170 · 89465-33200 · 89465-80005 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89615 | knock control sensor | 89615-12040 · 89615-12090 · 89615-20030 · 89615-32030 · 89615-32040 · 89615-33020 |
| 89620 | Ignition assembly | 89621-35020 |
| 89629 | Ignition bracket assembly | 89629-33100 |
