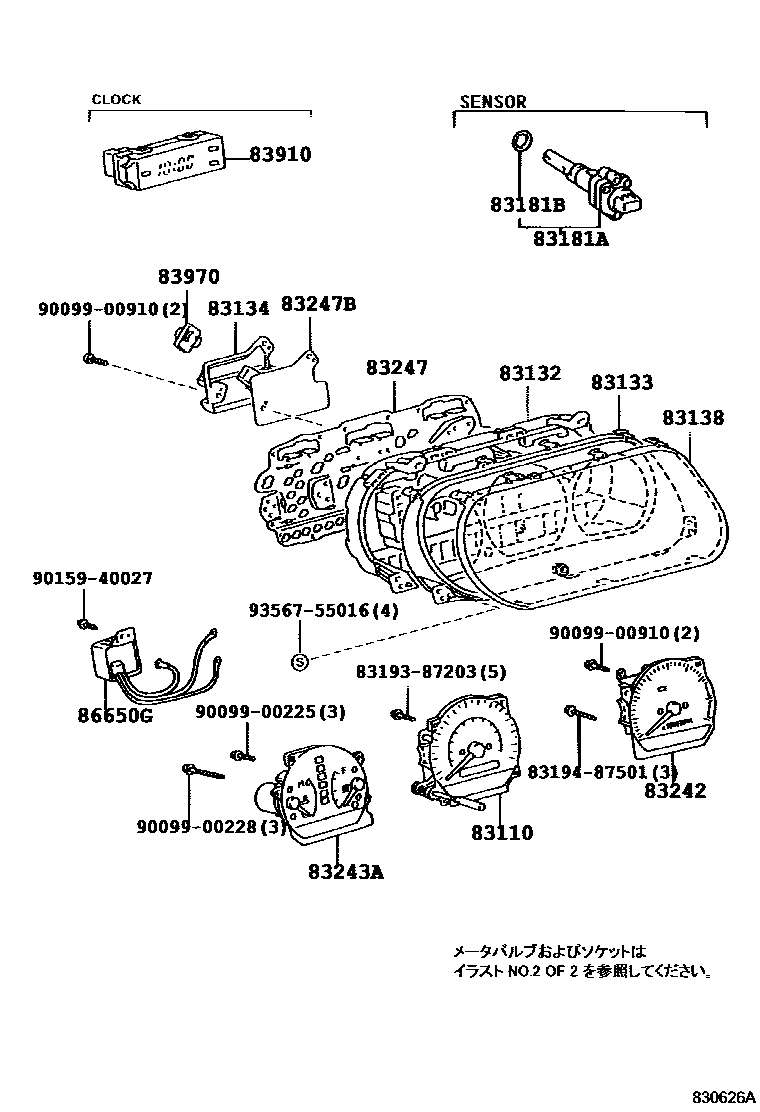

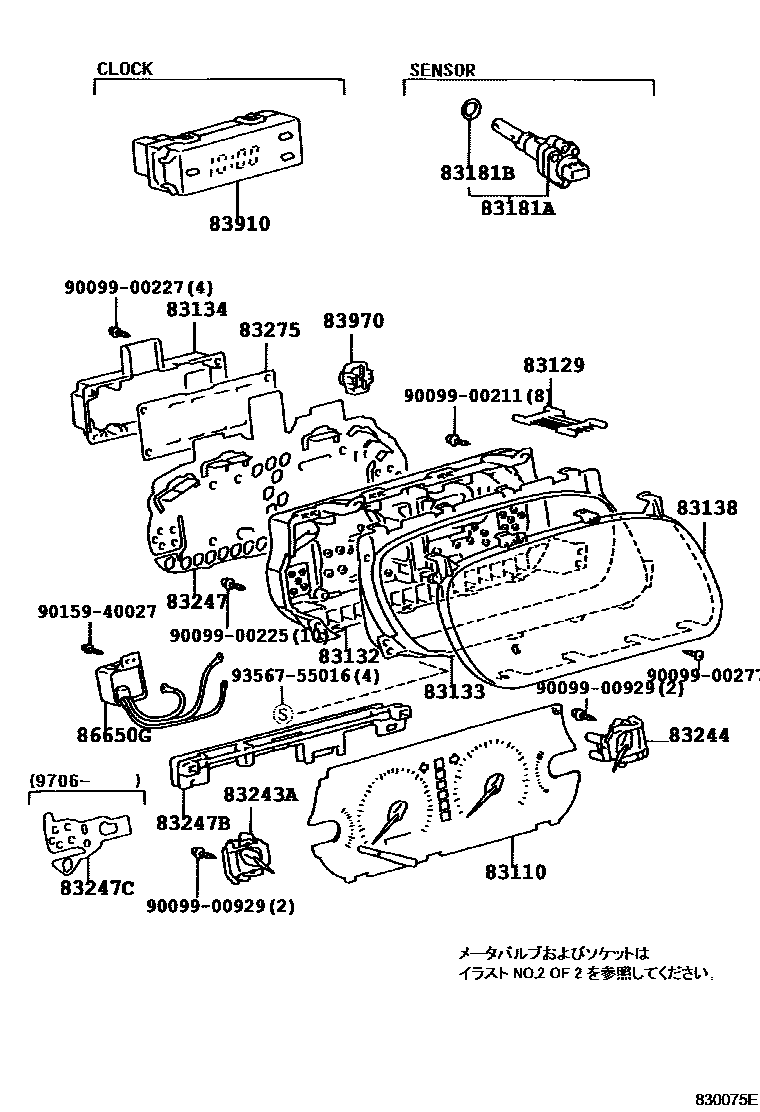

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

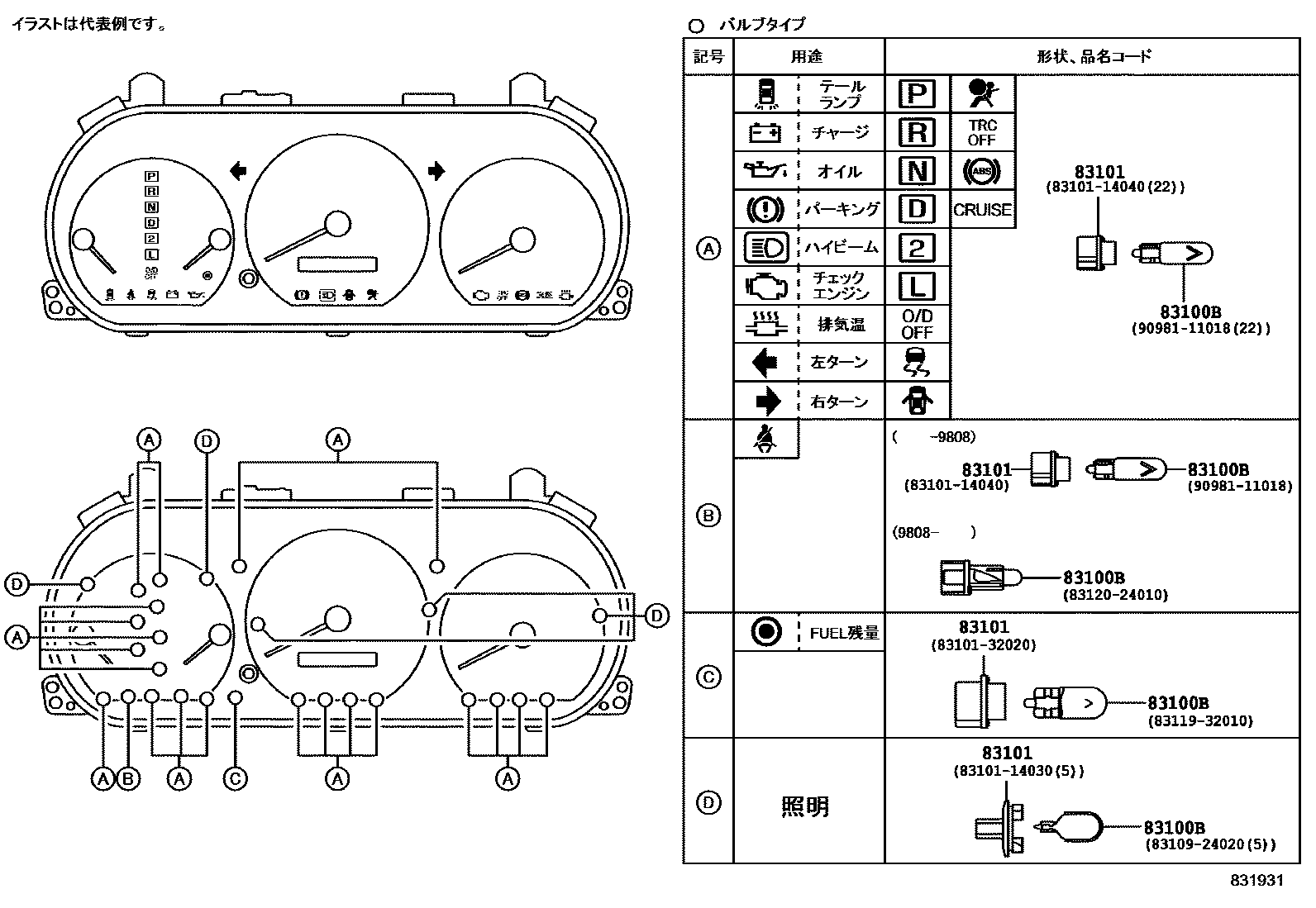

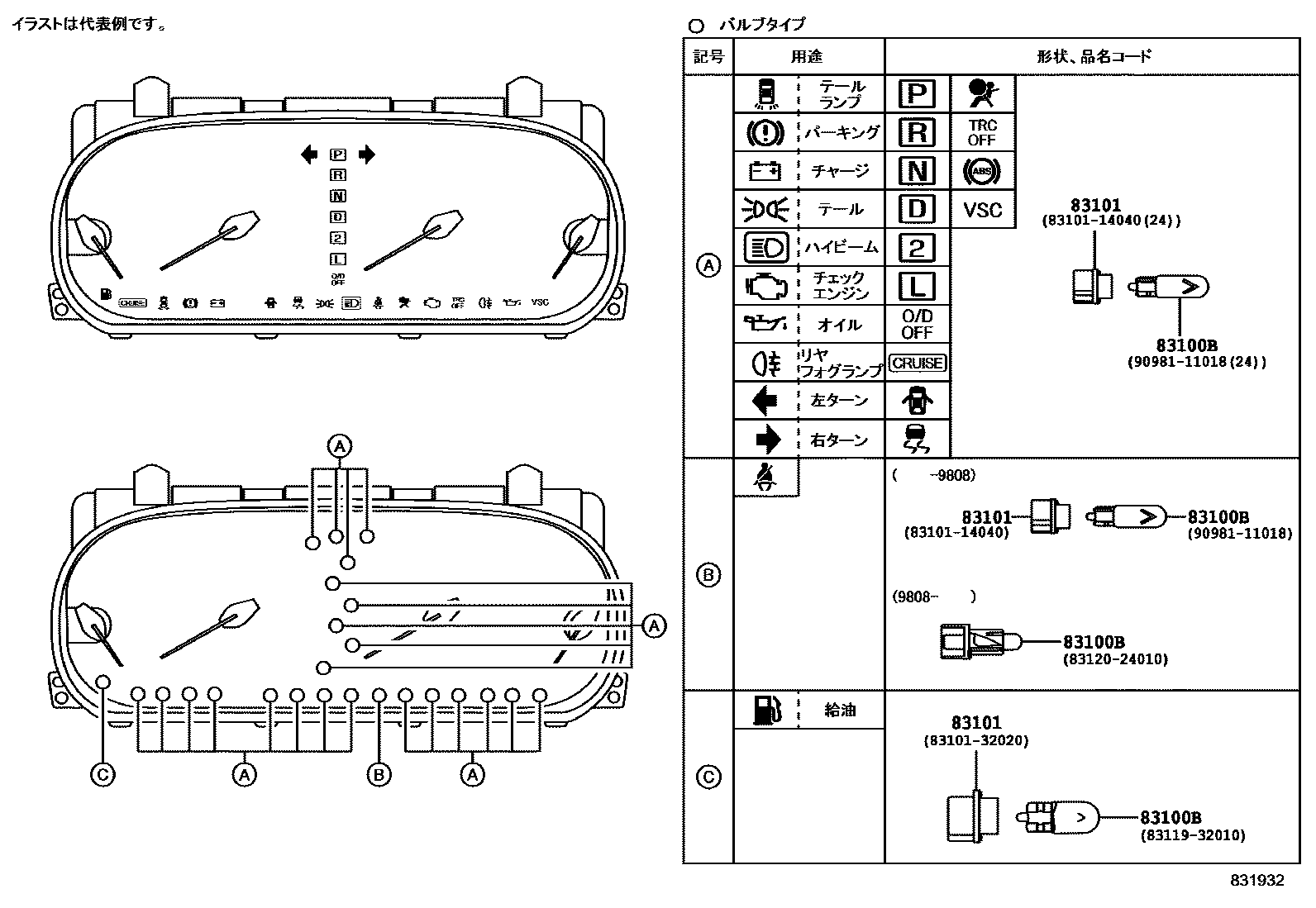

| 83100B | Combination instrument bulb No. 1 | 83109-24020 · 83119-32010 · 83120-24010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83220-33030 · 83220-33031 · 83220-33040 · 83220-33041 · 83220-33042 · 83220-33043 · 83220-33080 · 83220-33081 · 83220-33082 |
| 83129 | Instrument wiring harness | 83875-33150 |
| 83132 | Instrument cluster housing | 83841-33030 · 83841-33150 |
| 83133 | Combined instrument panel No. 1 | 83811-33030 · 83811-33150 |
| 83134 | Combination instrument cover No. 1 | 83821-33150 · 83821-33220 · 83821-33240 |
| 83138 | speedometer glass | 83852-33030 · 83852-33150 |
| 83181A | speedometer sensor | 83181-12040 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 |
| 83242 | Engine tachometer assembly | 83881-33090 · 83881-33091 · 83881-33100 · 83881-33101 |
| 83243A | Fuel gauge sub-assembly | 83882-33090 · 83882-33150 · 83882-33220 · 83882-33240 |
| 83244 | Water temperature meter sub-assembly | 83883-33150 |
| 83247 | Instrument circuit board | 83861-33090 · 83861-33091 · 83861-33150 · 83861-33151 · 83861-33152 · 83861-33153 · 83861-33190 · 83861-33220 · 83861-33221 · 83861-33240 · 83861-33241 · 83861-33250 |
| 83247B | No. 2 instrument circuit board | 83864-33150 · 83864-33180 · 83864-33220 · 83864-33221 |
| 83247C | No. 3 instrument circuit board | 83862-33240 |
| 83275 | No. 1 ECU instrument circuit board | 83275-33150 · 83275-33240 |
| 83910 | clock assembly | 83910-33030 |
| 83970 | Reversing warning buzzer assembly | 83970-20010 |
| 86650G | Buzzer assembly | 86650-30140 · 86650-33020 · 86650-33030 |
