Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

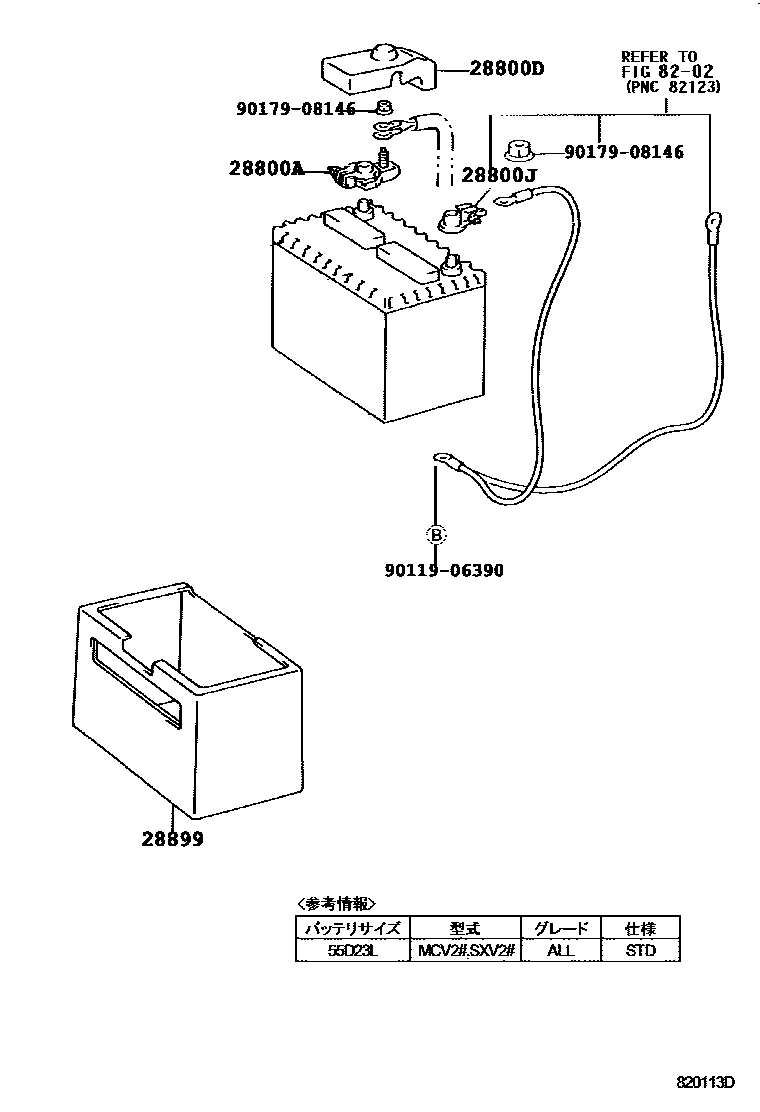

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05035 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 |
| 28800J | battery negative terminal | 90982-06022 |
| 28899 | Battery insulation cover | 28899-46060 |
