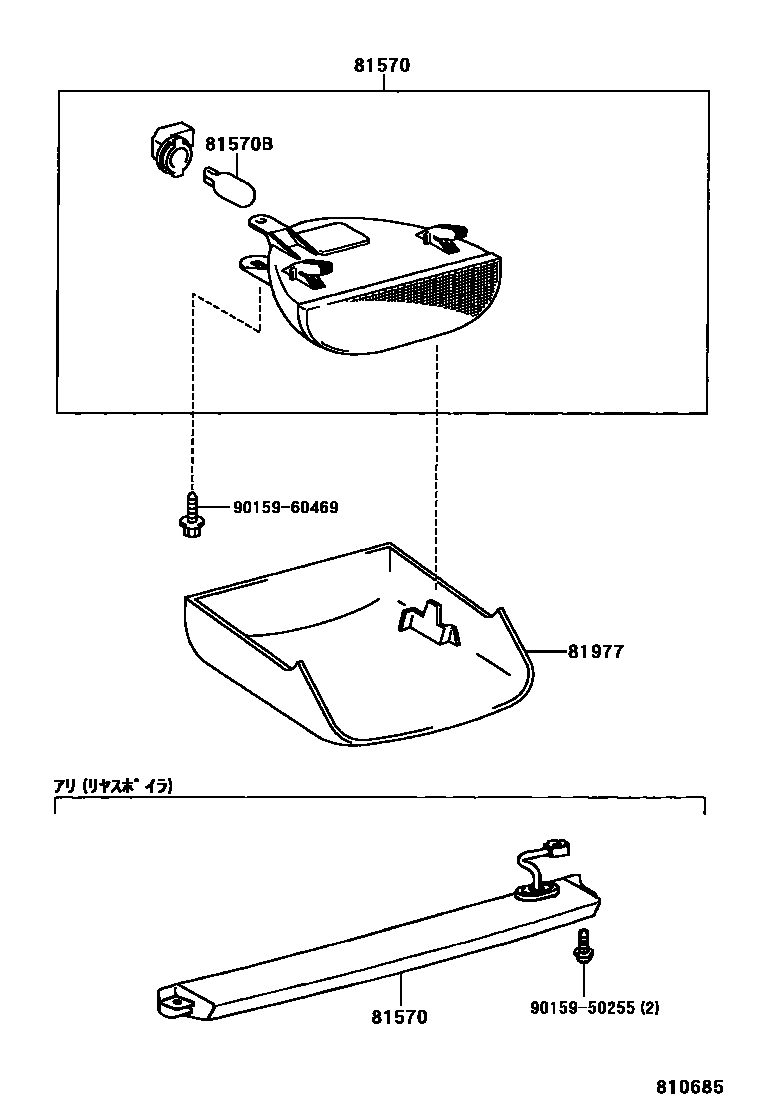

Toyota CAMRY 高位刹车灯 — Figure 8117
Toyota CAMRY EPC diagram 8117, 高位刹车灯, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-33100 · 81570-33110 |
| 81570B | Bulb (for center brake light) | 90981-11039 · 90981-11059 · 90981-13050 |
