Toyota CAMRY 倒车灯 — Figure 8112

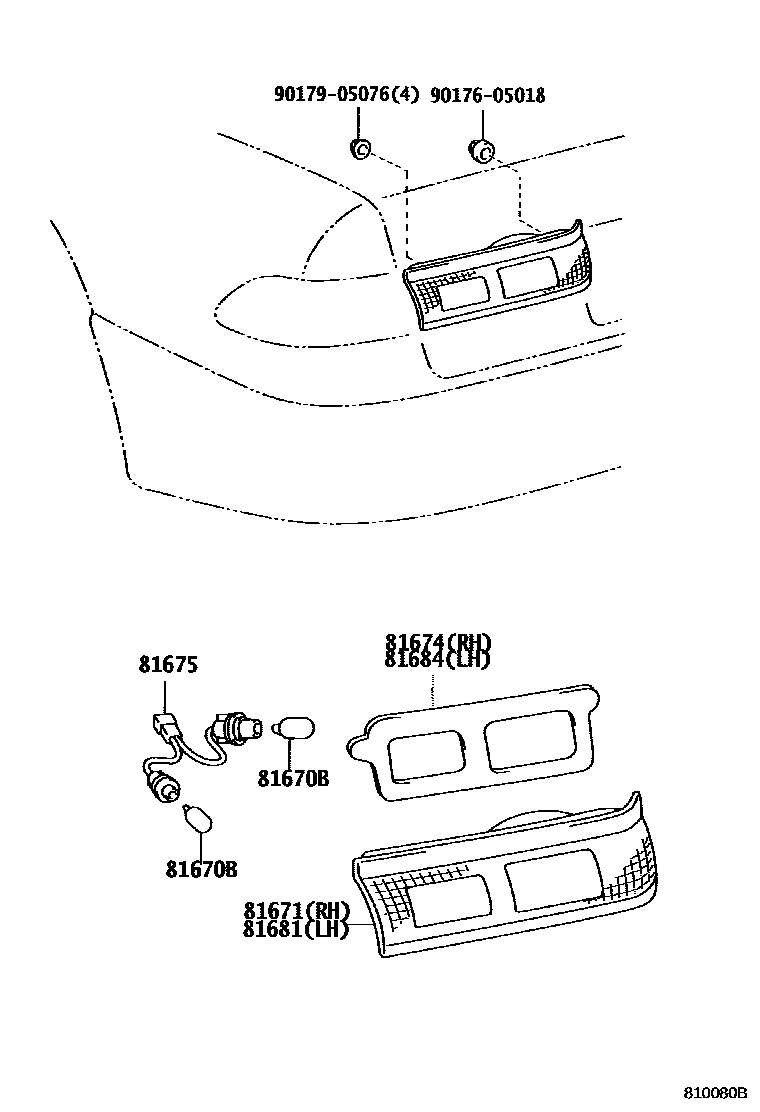

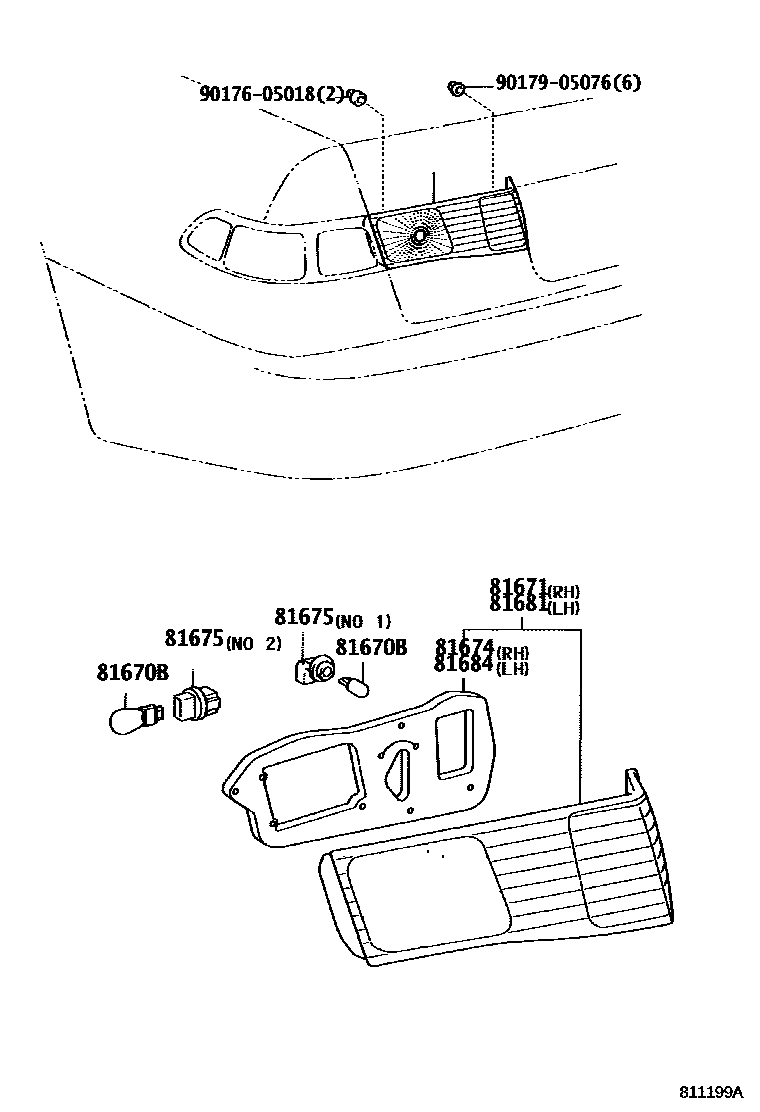

Toyota CAMRY EPC diagram 8112, 倒车灯, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670B | Bulb (for reversing lights) | 90981-11039 · 90981-11059 · 90981-13043 · 90981-13044 · 99132-12050 |
| 81671 | Right reversing light cover | 81581-33020 · 81581-33060 · 81671-33030 · 81671-33080 · 81671-33180 |
| 81674 | Right reversing light body gasket | 81588-33020 · 81674-33030 · 81674-33080 |
| 81675 | Reversing light holder and wiring harness | 81585-33020 · 81675-33080 · 90075-60002 · 90075-99005 |
| 81681 | Left reversing light cover | 81591-33020 · 81591-33060 · 81681-33020 · 81681-33080 · 81681-33130 |
| 81684 | Left reversing light body gasket | 81588-33020 · 81674-33030 · 81674-33080 |
