Toyota CAMRY 后组合灯 — Figure 8111

Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 9 PNC and OE references.

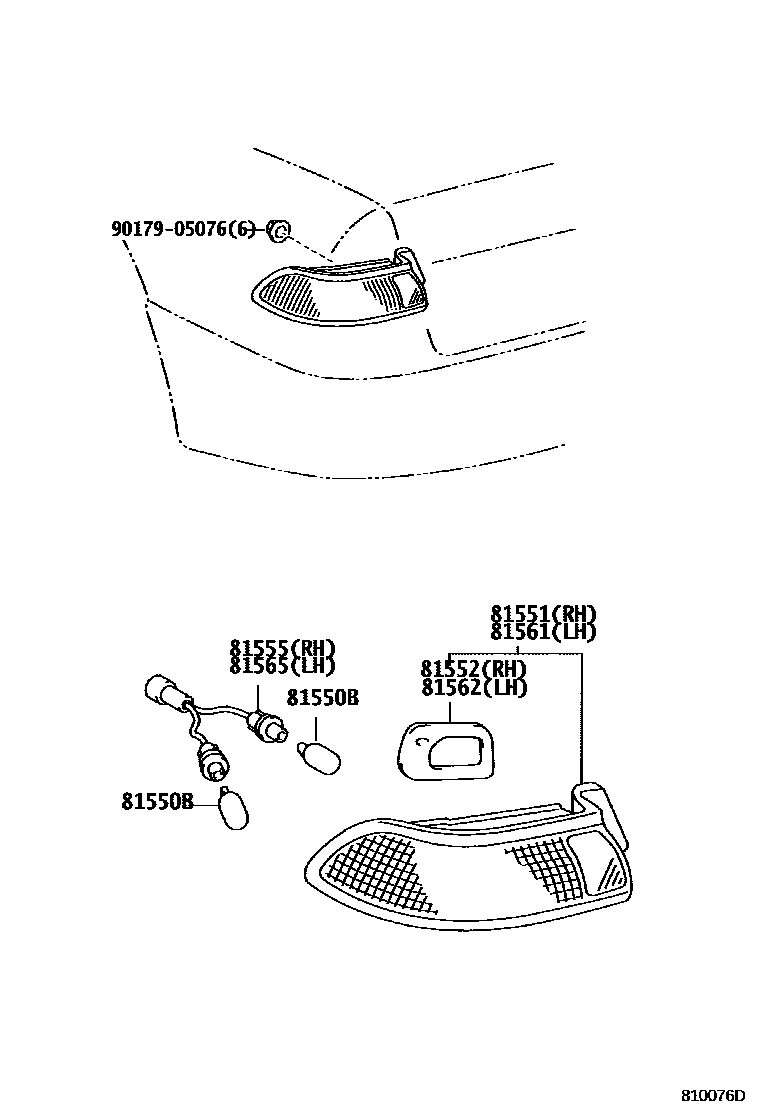

Toyota CAMRY 后组合灯 EPC diagram — 810076D
后组合灯 — 810076D (199612 – 999999)

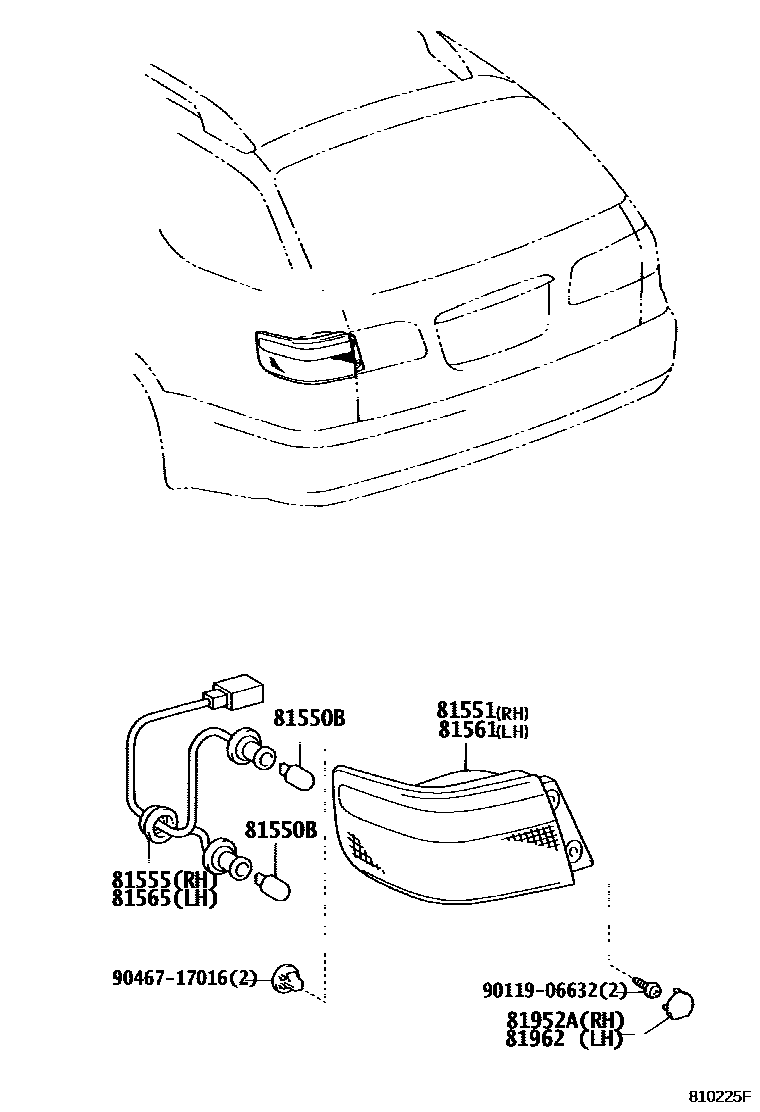

Toyota CAMRY 后组合灯 EPC diagram — 810225F
后组合灯 — 810225F (199612 – 999999)

PNC and OE references

PNCPart nameOE numbers
81550BBulb (for rear combination lights)90981-13043 · 90981-13044
81551Right rear combination lamp shade81551-33030 · 81551-33180 · 81551-33210 · 81551-33240
81552Right rear combination lamp shade gasket81552-33030 · 81552-33210
81555Right rear combination lamp lamp holder and wiring harness sub-assembly81555-33030 · 81555-33180 · 81555-33210
81561Left rear combination lamp shade81561-33030 · 81561-33190 · 81561-33210 · 81561-33240
81562Left rear combination lamp shade gasket81552-33210 · 81562-33030
81565Left rear combination lamp lamp holder and wiring harness sub-assembly81555-33030 · 81555-33180 · 81555-33210
81952ARight rear light cover81952-22010
81962Left rear light cover81952-22010
