Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 6 PNC and OE references.

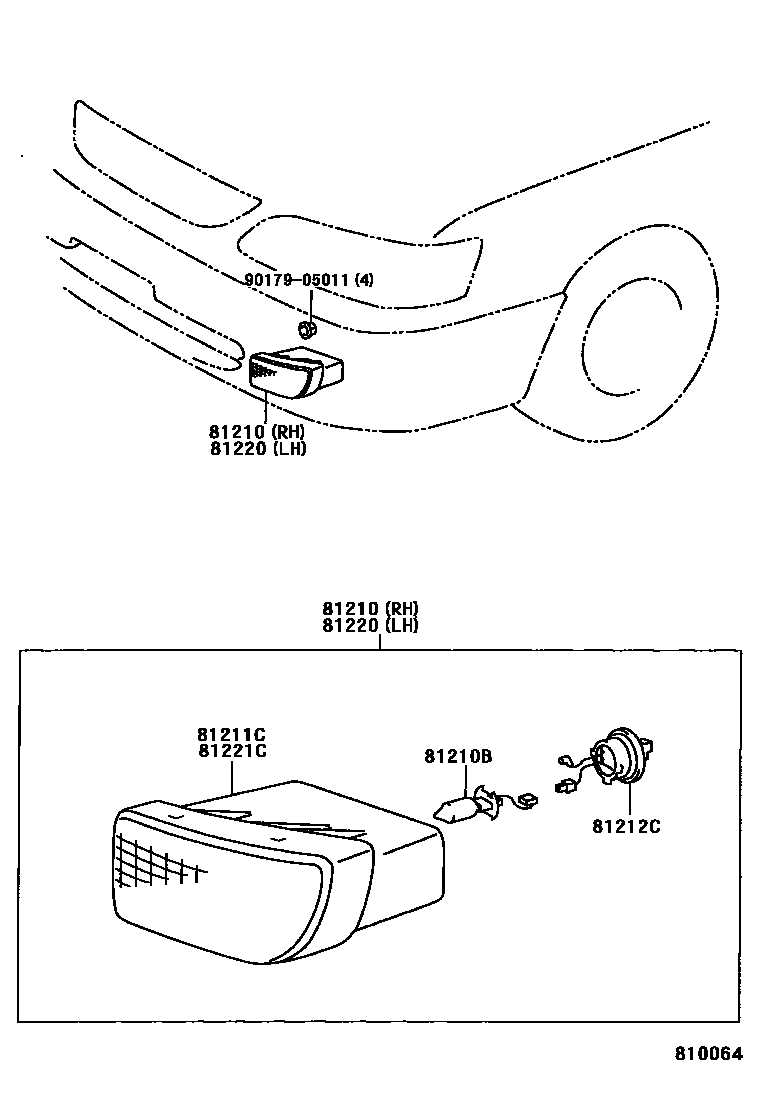

Toyota CAMRY Fog Lamp EPC diagram — 810064
Fog Lamp — 810064 (199612 – 199908)

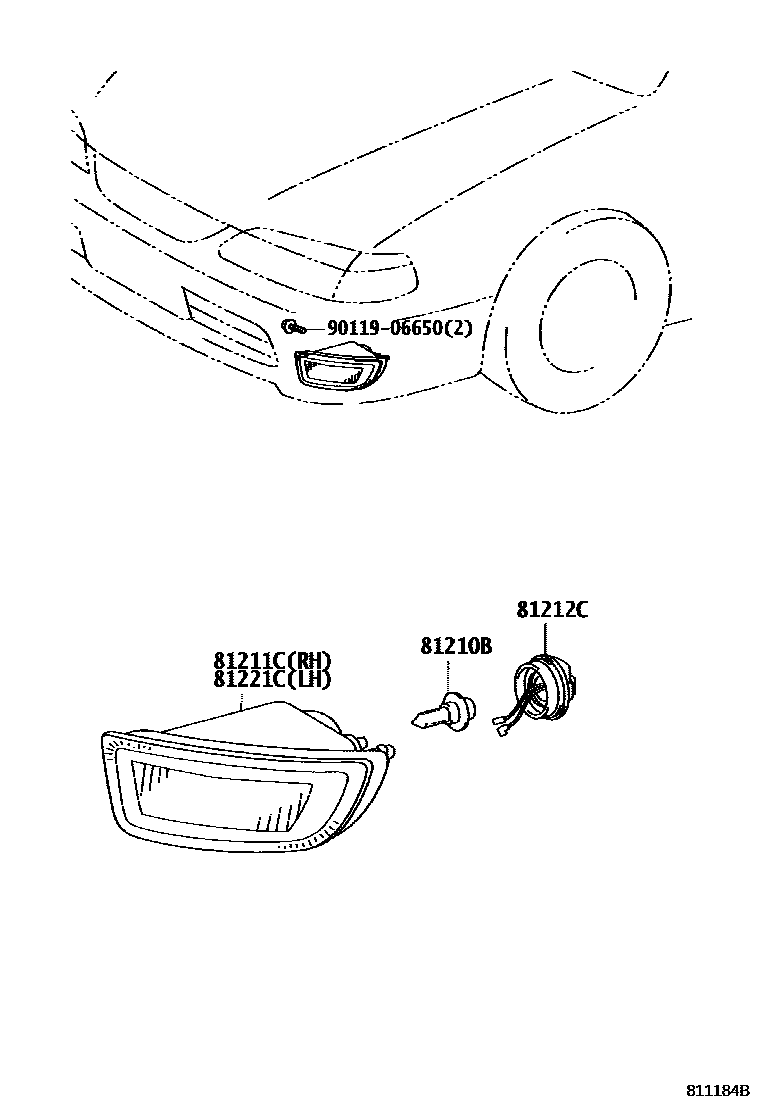

Toyota CAMRY Fog Lamp EPC diagram — 811184B
Fog Lamp — 811184B (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210Fog light assembly81210-33070
81210Bfog light bulb90981-13071
81211CRight fog light assembly81211-33070 · 81211-33110
81212Cfog light cover90075-66001
81220Left fog light assembly81220-33070
81221CLeft fog light assembly81221-33070 · 81221-33110
