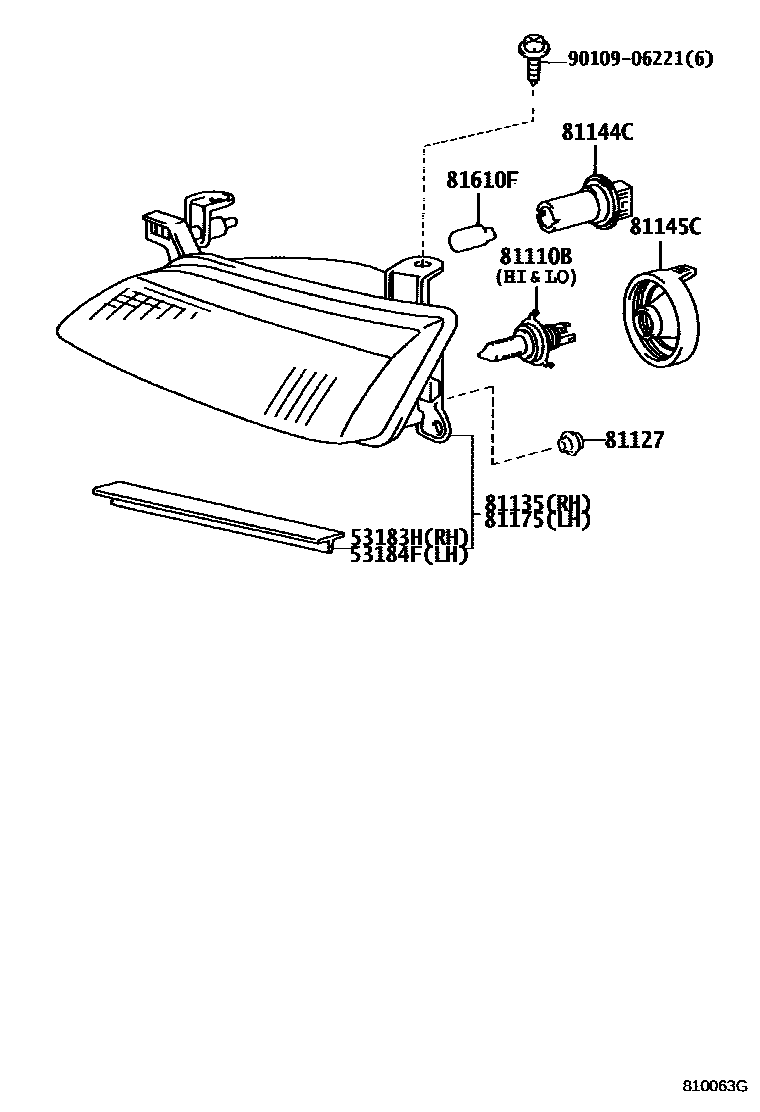

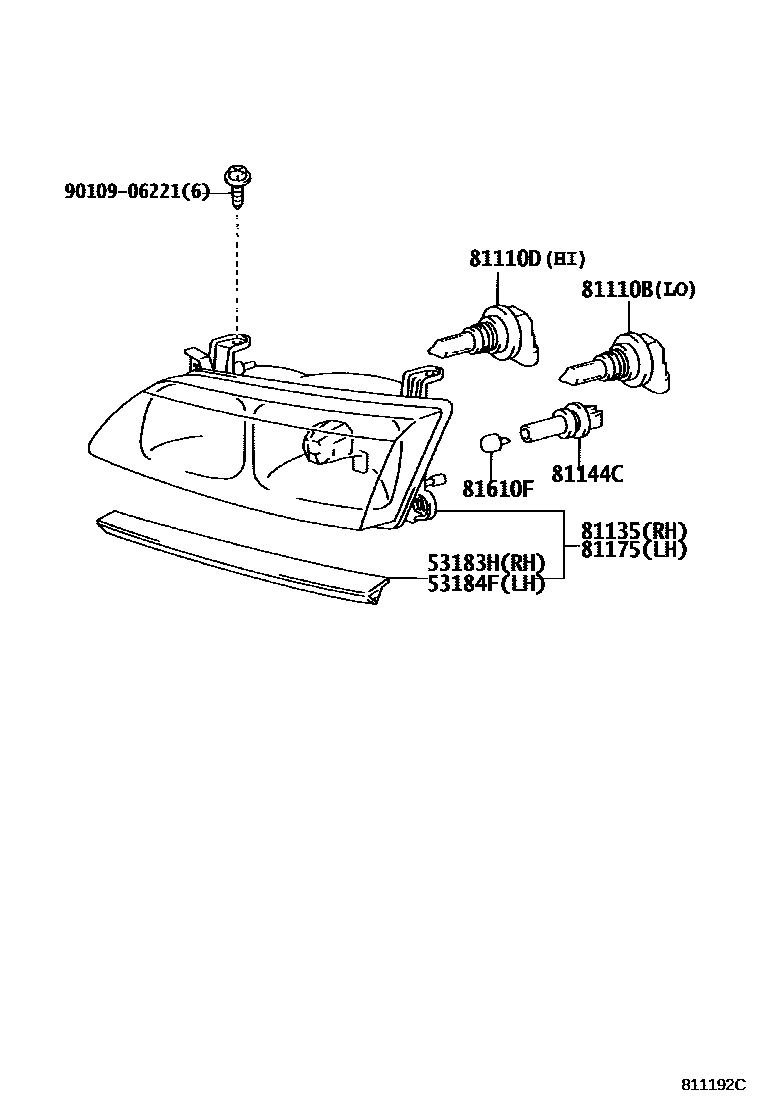

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-33060 · 53183-33070 |
| 53184F | Left headlight cover seal | 53184-33060 · 53184-33070 |
| 81110B | Bulb (for headlight No. 1) | 90080-81040 · 90981-22004 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81127 | No. 1 headlight support | 81128-22630 |
| 81135 | Right headlight assembly | 81130-33270 · 81130-33310 |
| 81144C | Headlight lamp holder cover | 90075-60004 |
| 81145C | No. 2 headlight lamp holder cover | 90075-65012 |
| 81175 | Left headlight assembly | 81170-33270 · 81170-33300 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
