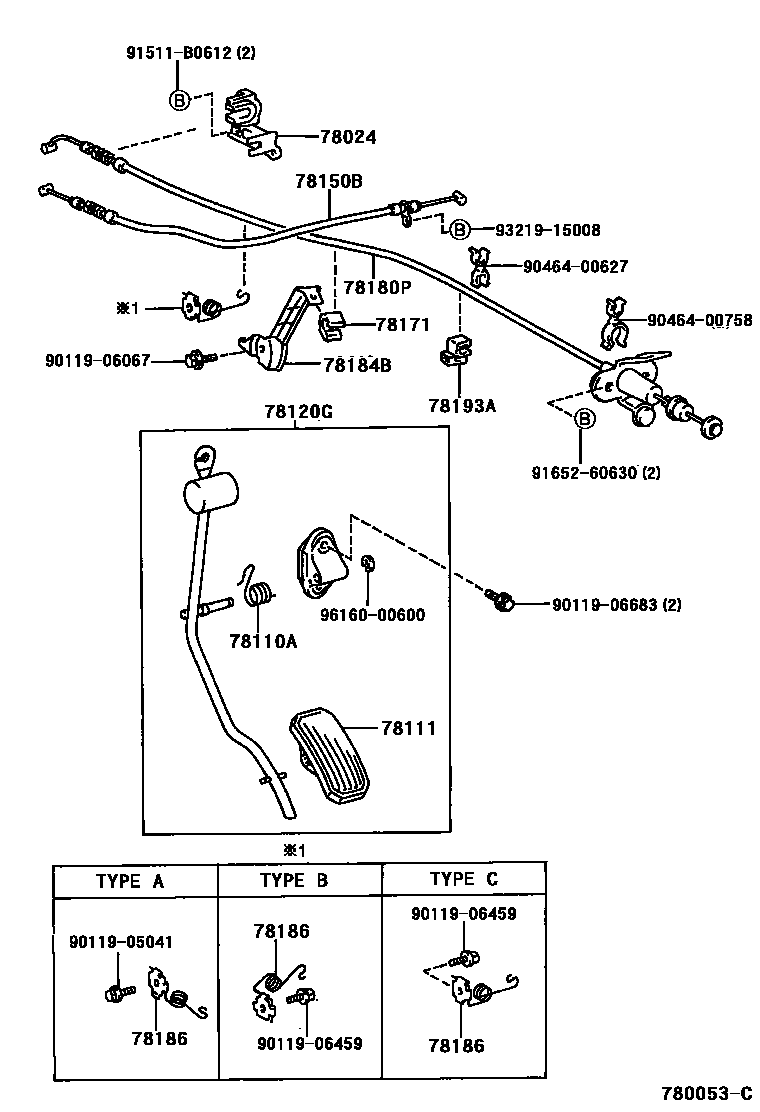

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-33030 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18048 |
| 78111 | accelerator pedal | 78111-20060 · 78111-33020 |
| 78120G | Accelerator pedal lever assembly | 78120-33090 · 78120-33110 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-33080 |
| 78171 | No. 2 accelerator pedal control lever right bracket | 78171-33010 |
| 78180P | Accelerator pedal control cable assembly | 78180-33180 · 78180-33210 · 78180-33230 |
| 78184B | Throttle pedal control cable bracket | 78184-41010 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-33030 · 78186-33040 · 78186-33060 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-33010 |
