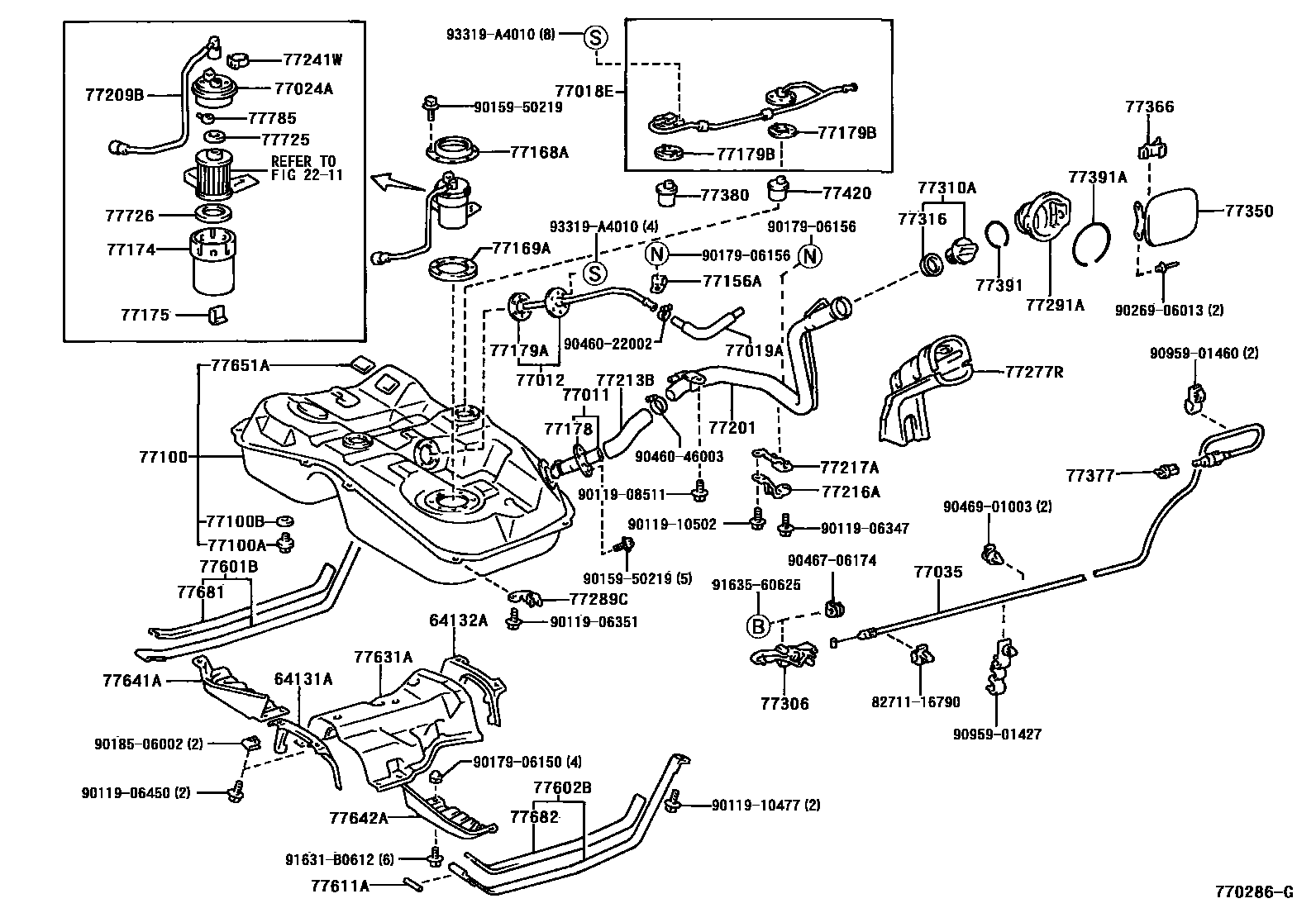

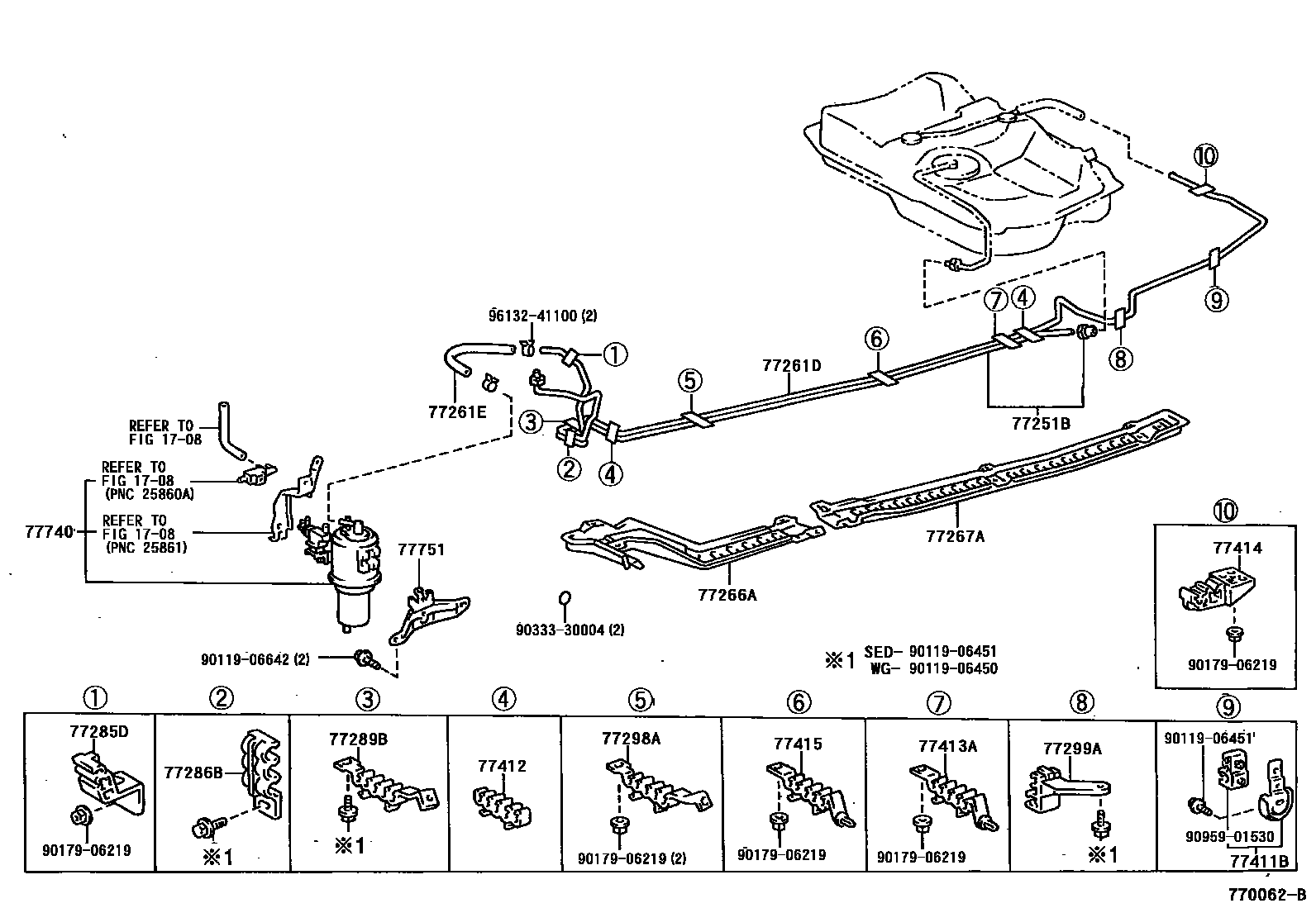

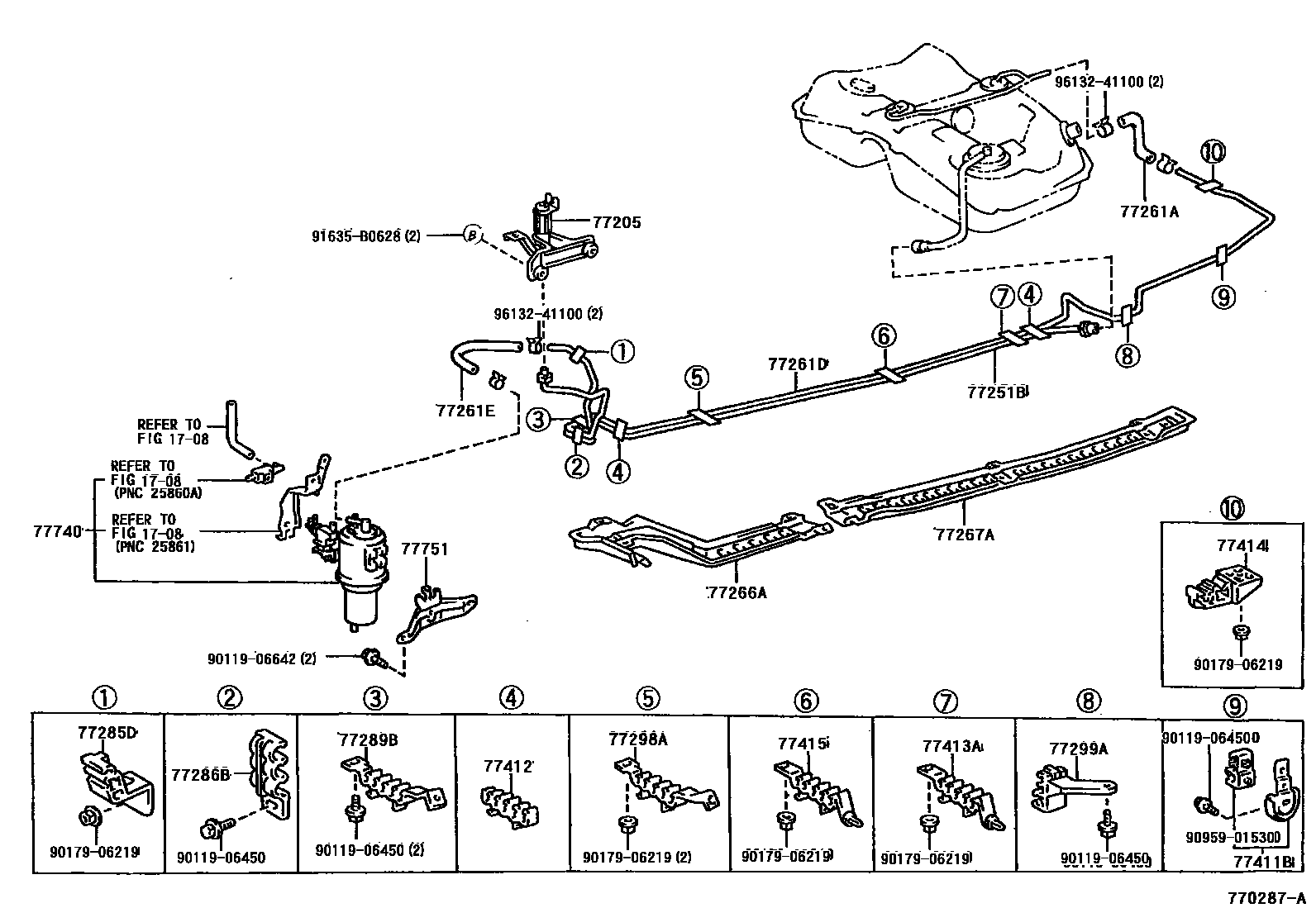

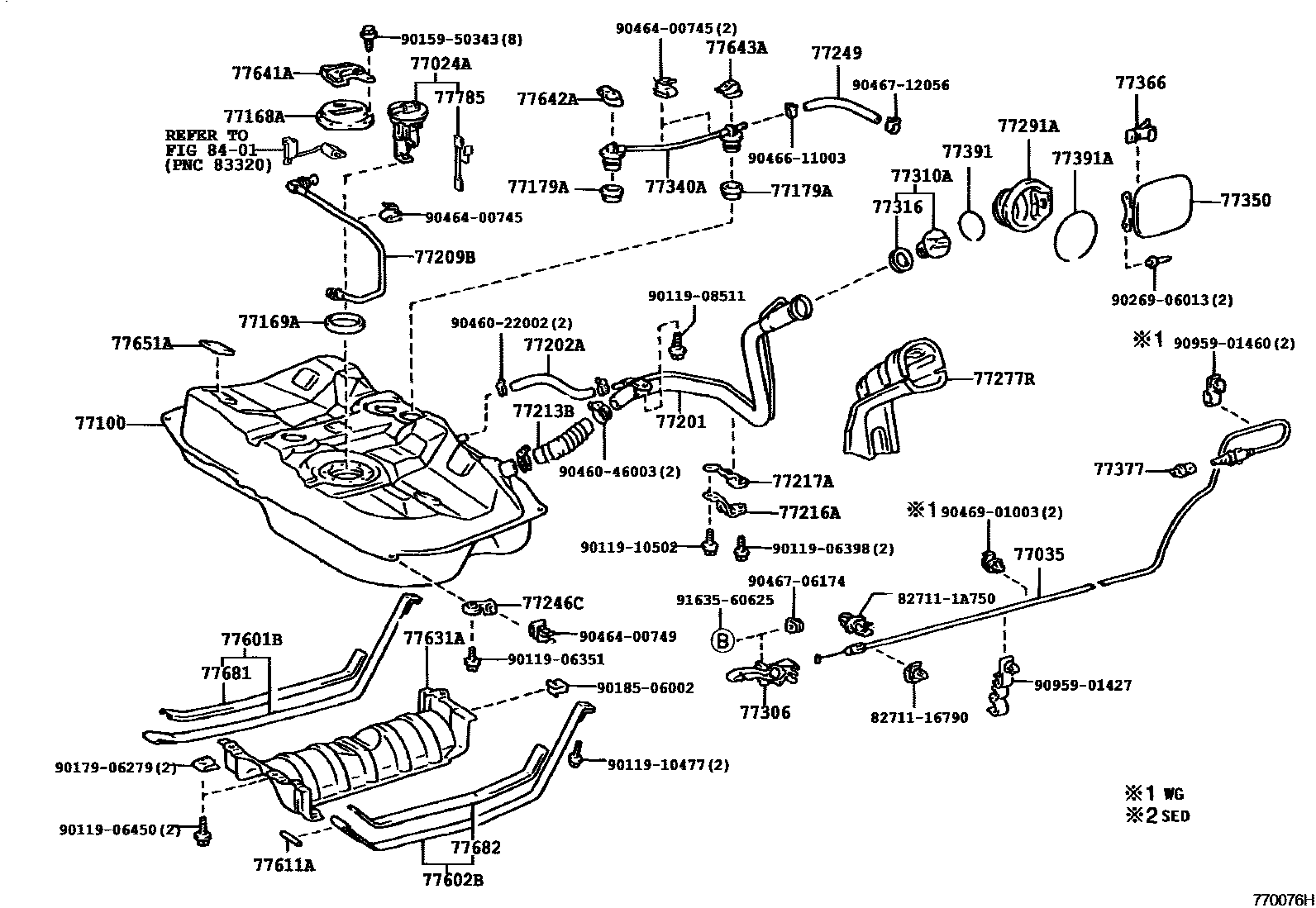

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 4 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64131A | No. 1 fuel tank protective cover upper bracket | 64131-33010 |
| 64132A | No. 2 fuel tank protective cover upper bracket | 64132-33010 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-41010 |
| 77012 | Fuel tank breather pipe sub-assembly | 77012-33040 · 77012-33050 |
| 77018E | Fuel tank evaporation vent pipe sub-assembly | 77018-33020 · 77018-33030 |
| 77019A | No. 1 fuel hose (for fuel expansion tank) | 77019-33040 |
| 77024A | Fuel absorber sub-assembly | 77024-33010 · 77024-33020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-33070 · 77035-33090 |
| 77100 | fuel tank assembly | 77001-33080 · 77001-39335 · 77001-39355 |
| 77100A | Screw plug (for fuel tank) | 90105-12116 |
| 77100B | Gasket (for fuel tank) | 90430-12245 |
| 77156A | No. 2 snorkel support plate | 77156-33010 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33030 · 77168-33040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33010 · 77169-33020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-30050 · 77175-33010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-20040 · 77179-33010 |
| 77179B | Fuel tank evaporative vent pipe gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33040 · 77201-33090 · 77201-33100 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13024 |
| 77205 | Main fuel pipe sub-assembly | 77205-33010 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33010 · 77209-33030 |
| 77213B | Fuel tank to filler pipe hose | 77213-33060 · 77213-33070 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77104-32010 · 77216-33010 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32040 · 77217-33010 |
| 77241W | Pipe joint clip | 77241-33010 · 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-33010 |
| 77249 | fuel drain hose | 95333-06020 |
| 77251B | main fuel pipe | 77251-33050 · 77251-33090 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-33040 · 77261-33070 |
| 77266A | No. 1 fuel line protection device | 77266-33020 |
| 77267A | No. 2 fuel pipe protection device | 77267-33020 |
| 77277R | Fuel tank filler pipe protection device | 77277-33040 · 77277-33041 |
| 77285D | No. 1 fuel pipe clamp | 77285-33020 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-33010 |
| 77289B | No. 3 fuel pipe clamp | 77289-33020 |
| 77289C | No. 4 fuel pipe clamp | 77289-33040 |
| 77291A | Fuel tank filler pipe cover | 77291-33010 · 77291-33030 |
| 77298A | No. 4 fuel pipe clamp | 77298-33020 |
| 77299A | No. 5 fuel pipe clamp | 77299-33020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-21010 |
| 77310A | Fuel tank cap assembly | 77310-16011 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-33020 |
| 77350 | Fuel filler cap assembly | 77350-33030 · 77350-33070 |
| 77366 | Fuel filler cap hinge spring | 77360-22020 · 77360-33020 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20030 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-33020 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-33020 |
| 77413A | No. 3 fuel pipe retaining ring bracket | 77413-33020 |
| 77414 | No. 4 fuel pipe retaining ring bracket | 77414-33020 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-33020 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-26010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33010 · 77601-33020 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33010 · 77602-33020 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-33020 · 77631-33021 · 77631-33030 |
| 77641A | No. 1 fuel tank protective shell | 77641-33010 · 77641-33020 |
| 77642A | No. 2 fuel tank protective shell | 77642-33010 · 77642-33030 |
| 77643A | No. 3 fuel tank protective shell | 77643-33010 |
| 77651A | No. 1 fuel tank liner | 77651-20090 · 77652-32030 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 · 77682-16010 |
| 77725 | No. 1 fuel filter cushion | 77725-33010 |
| 77726 | No. 2 fuel filter cushion | 77726-33010 |
| 77740 | Carbon canister assembly | 77740-33100 |
| 77751 | Carbon canister base bracket | 77751-33050 · 77751-33051 |
| 77785 | fuel pump wiring harness | 77785-33010 · 77785-33020 · 77785-52020 |
