Toyota CAMRY 侧防护条 — Figure 7503

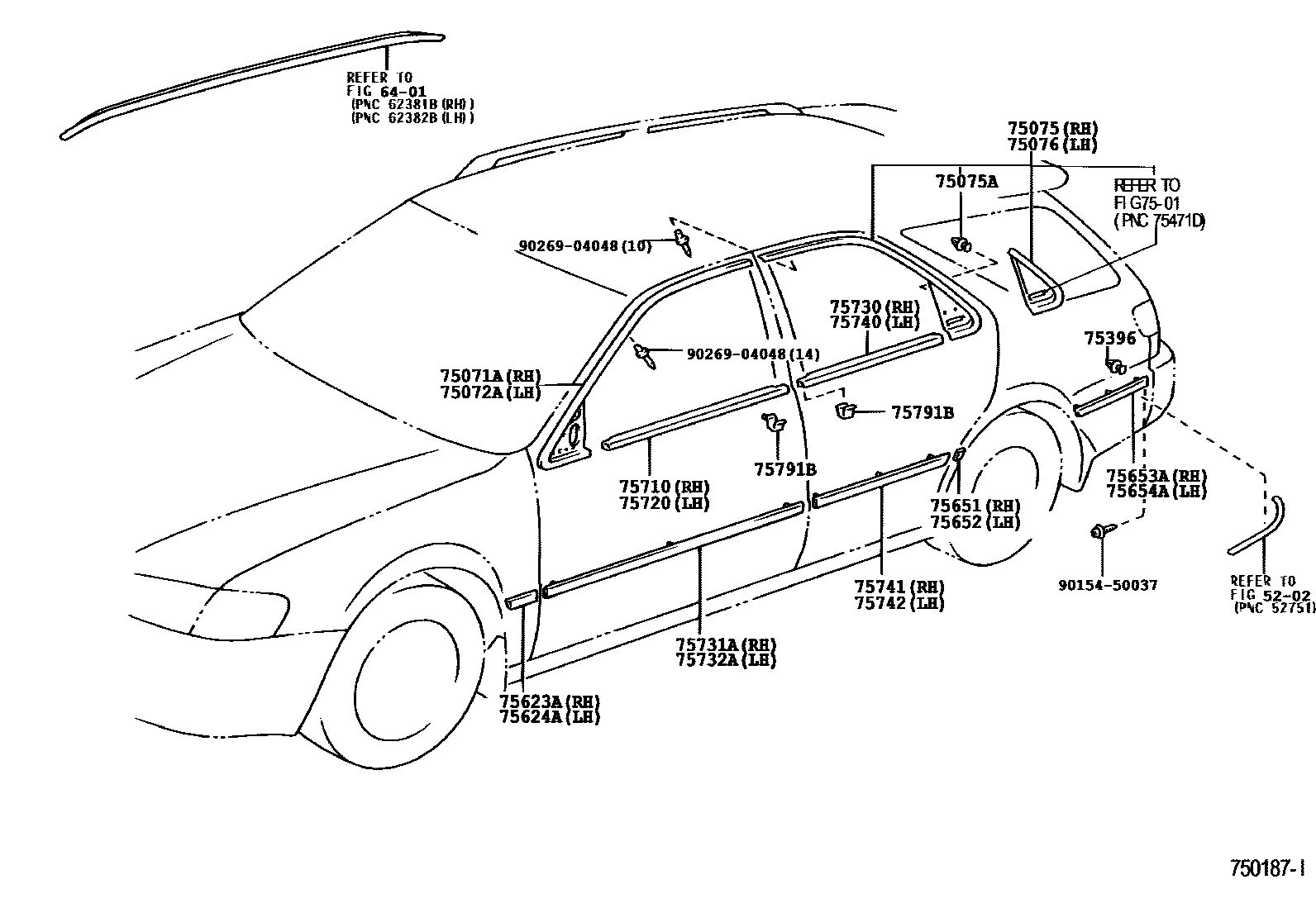

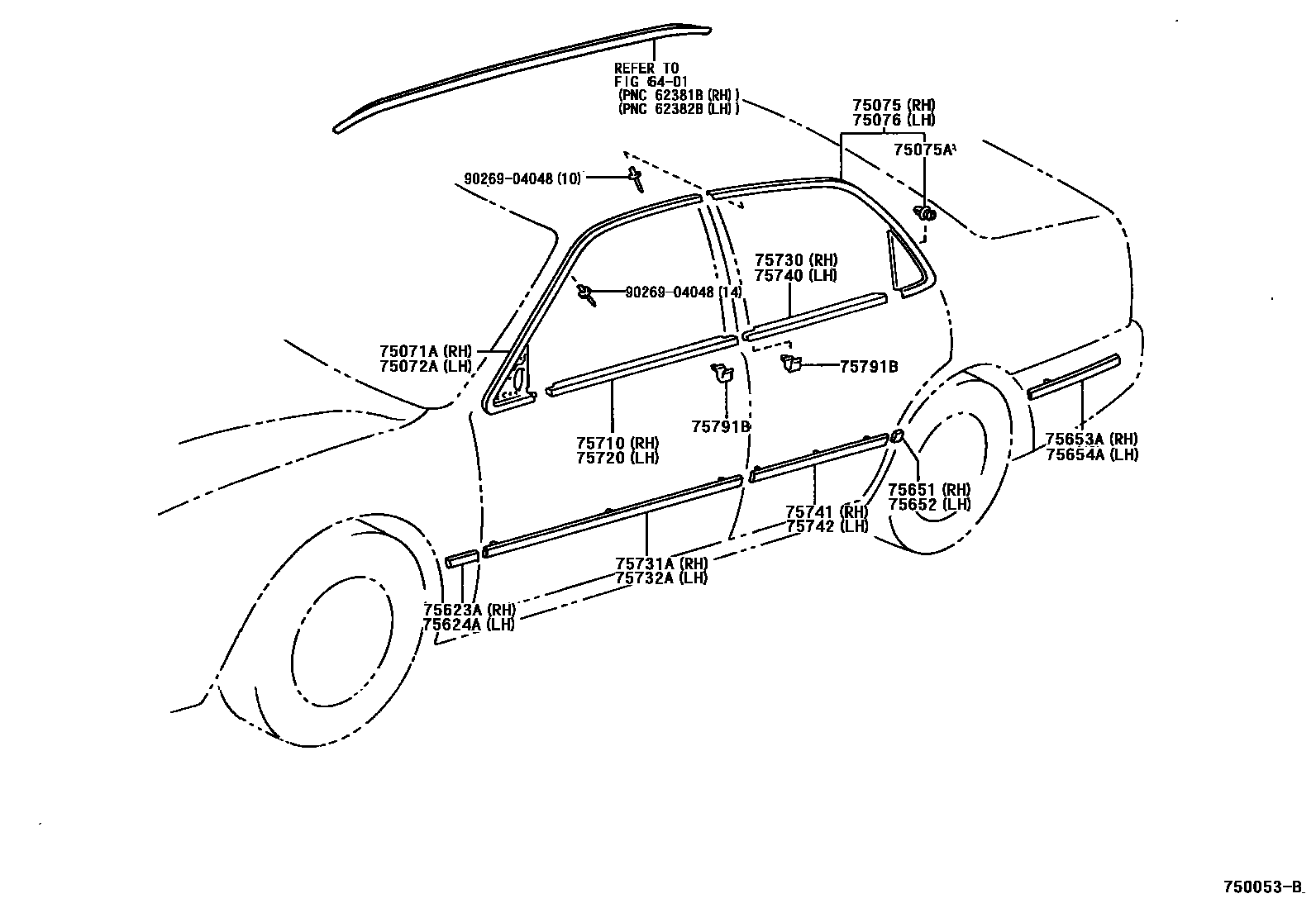

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75071A | Right front door outer protective strip sub-assembly | 75071-33030 · 75071-33040 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-33030 · 75072-33040 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-33040 · 75075-33050 · 75075-33070 · 75075-33080 · 75075-33120 · 75075-33130 |
| 75075A | Clip (for rear door outer protective strip) | 75392-33010 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-33040 · 75076-33050 · 75076-33070 · 75076-33080 · 75076-33120 · 75076-33130 |
| 75396 | No. 2 outer protective strip clip | 75819-12040 |
| 75710 | Right front door waistline protection strip assembly | 75710-33040 · 75710-33050 |
| 75720 | Left front door waistline protection strip assembly | 75720-33040 · 75720-33050 |
| 75730 | Right rear door waistline protection strip assembly | 75730-33040 · 75730-33050 |
| 75740 | Left rear door waistline protection strip assembly | 75740-33040 · 75740-33050 |
| 75791B | Waistline side protective strip clip | 75791-33020 |
