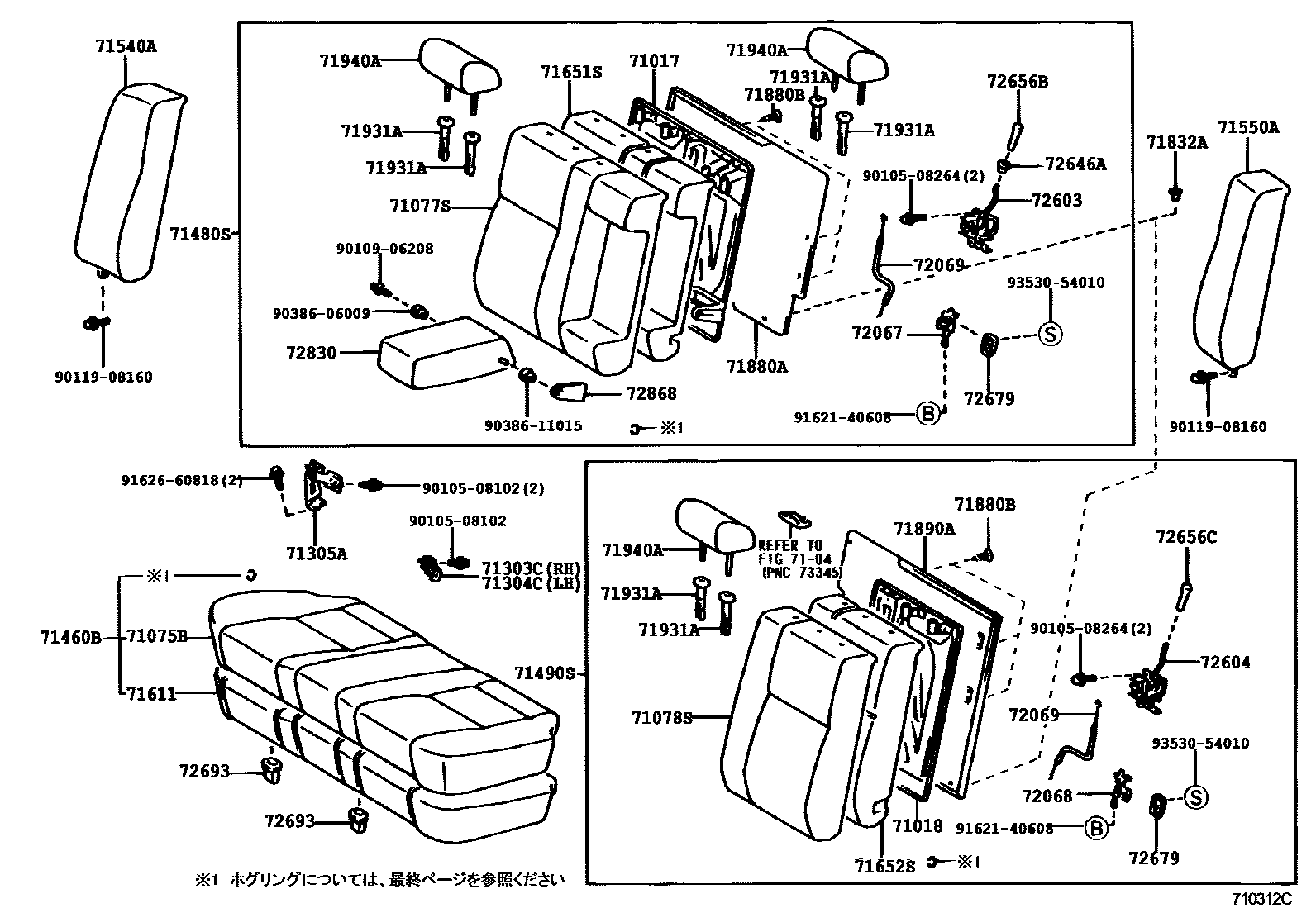

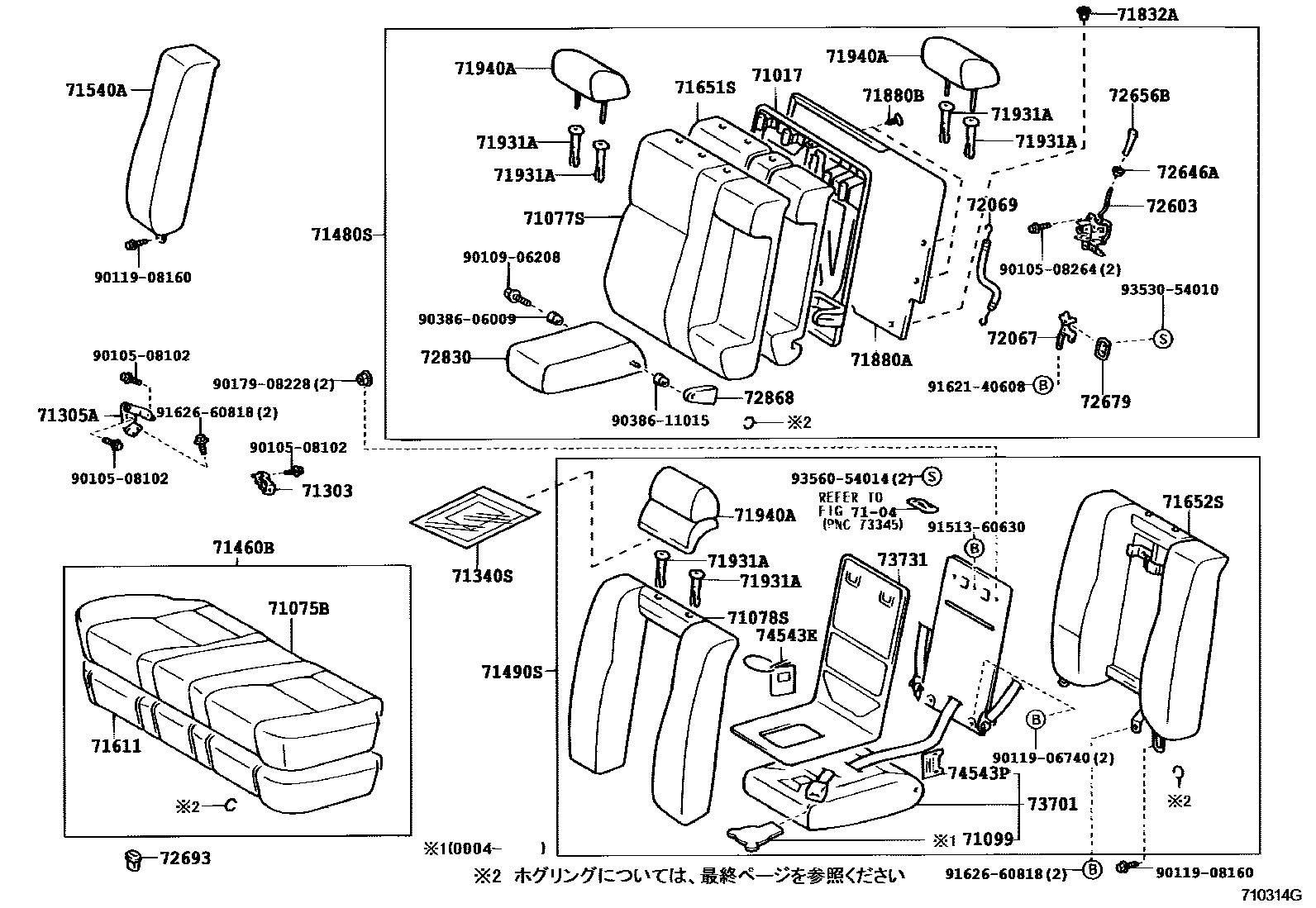

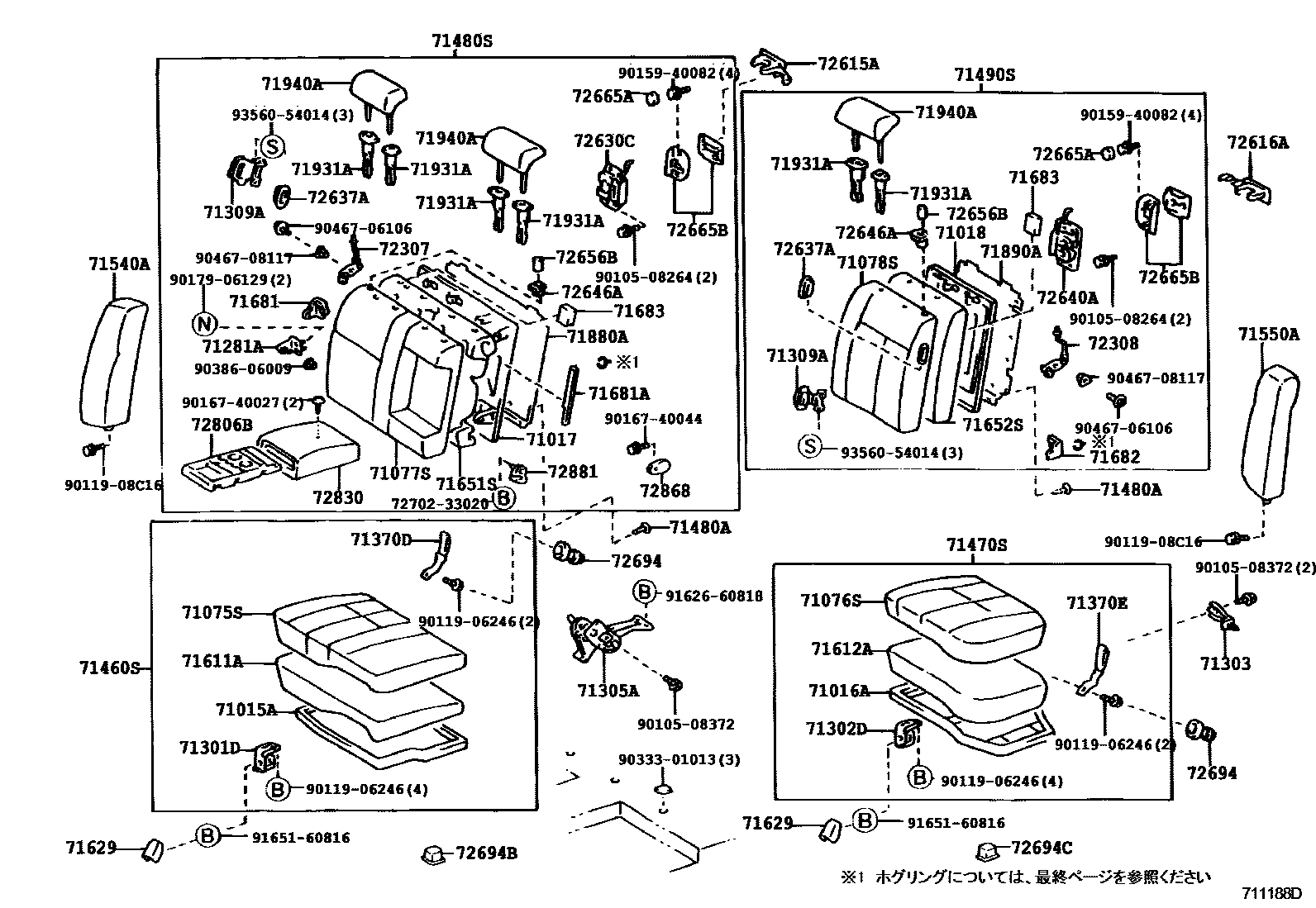

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-33100 · 71017-33110 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33040 · 71018-33050 |
| 71099 | Rear left seat back lower cover sub-assembly | 71099-33010 |
| 71281A | Rear seat center armrest hinge | 71281-33020 |
| 71301D | Rear right seat hinge sub-assembly | 71301-33010 · 71302-33010 |
| 71302D | Rear left seat hinge sub-assembly | 71301-33010 · 71302-33010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-33010 · 71303-33020 · 71303-33030 · 71303-33040 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33010 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-33010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33020 · 71305-33030 · 71305-33040 |
| 71309A | Rear seat backrest retainer bracket sub-assembly | 71309-33010 · 71309-33020 · 71309-33030 · 71309-33040 |
| 71340S | Front center seat cushion cover | 71340-33010 |
| 71480A | Clip (for rear seat back) | 90467-06073 |
| 71611 | Rear seat cushion cushion | 71503-33010 |
| 71611A | Rear right seat cushion | 71611-33020 |
| 71612A | Rear left seat cushion | 71612-33010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33080 · 71651-33100 · 71651-33110 |
| 71652S | Rear left seat back cushion (for split seats) | 71508-33010 · 71652-33030 · 71652-33040 · 71652-33050 |
| 71681 | Rear A seat back corner cushions | 71681-33020 |
| 71681A | Rear right seat back corner cushion | 71681-33010 |
| 71682 | Rear B seat back corner cushions | 71682-33010 |
| 71683 | Rear C seat back corner cushions | 71683-33010 |
| 71880B | Clip (for rear seat back felt cushion) | 90467-09063 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20011 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72067-20011 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-33020 |
| 72307 | Right inclination control link sub-assembly | 72307-33010 |
| 72308 | Left inclination control link sub-assembly | 72308-33010 |
| 72603 | Rear right seat back lock sub-assembly | 72603-33020 |
| 72604 | Rear left seat back lock sub-assembly | 72604-33020 |
| 72615A | Rear right seat back lock cover | 72615-33010 |
| 72616A | Rear left seat back lock cover | 72616-33010 |
| 72630C | Rear right seat back lock assembly | 72630-33040 |
| 72640A | Rear left seat back lock assembly | 72640-33040 |
| 72693 | Rear seat cushion hook | 72693-20060 |
| 72694 | Rear seat cushion lock cover | 72694-33020 |
| 72868 | Right center armrest hinge cover | 72868-33010 |
| 72881 | Rear right seat center armrest bracket | 72881-50030 |
| 74543E | Child Restraint Seat Information Label | 74543-33010 · 74543-33011 |
| 74543P | rear seat warning label | 74543-33040 |
