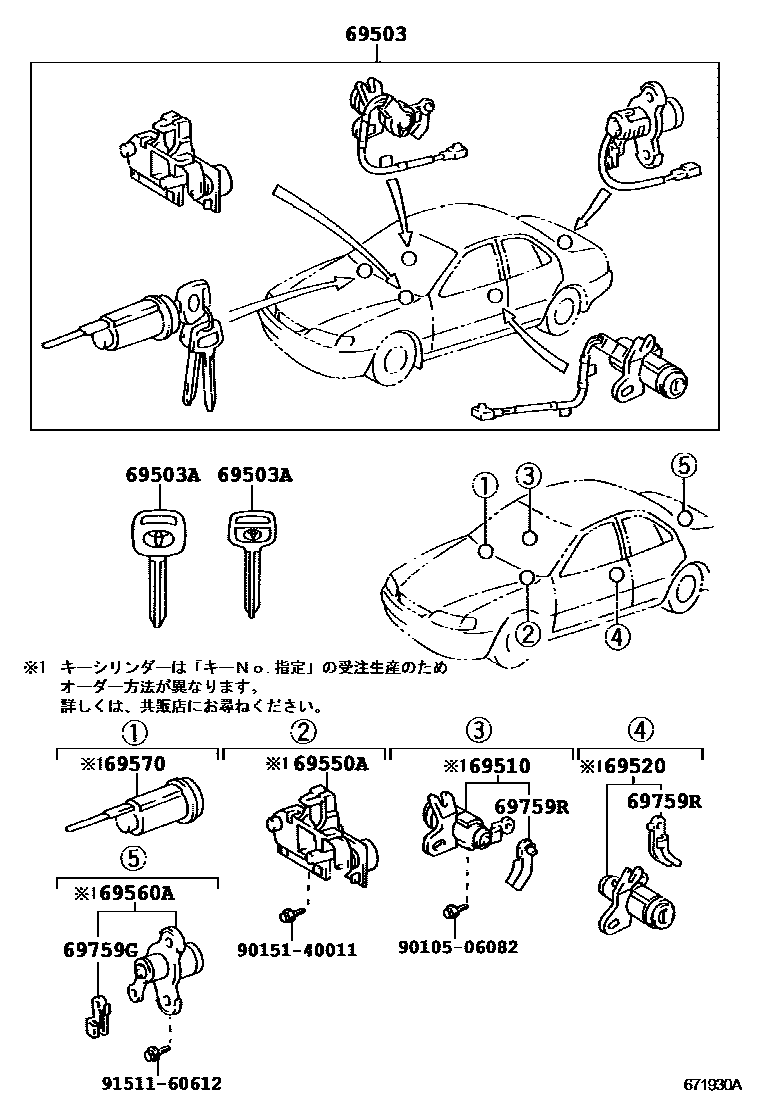

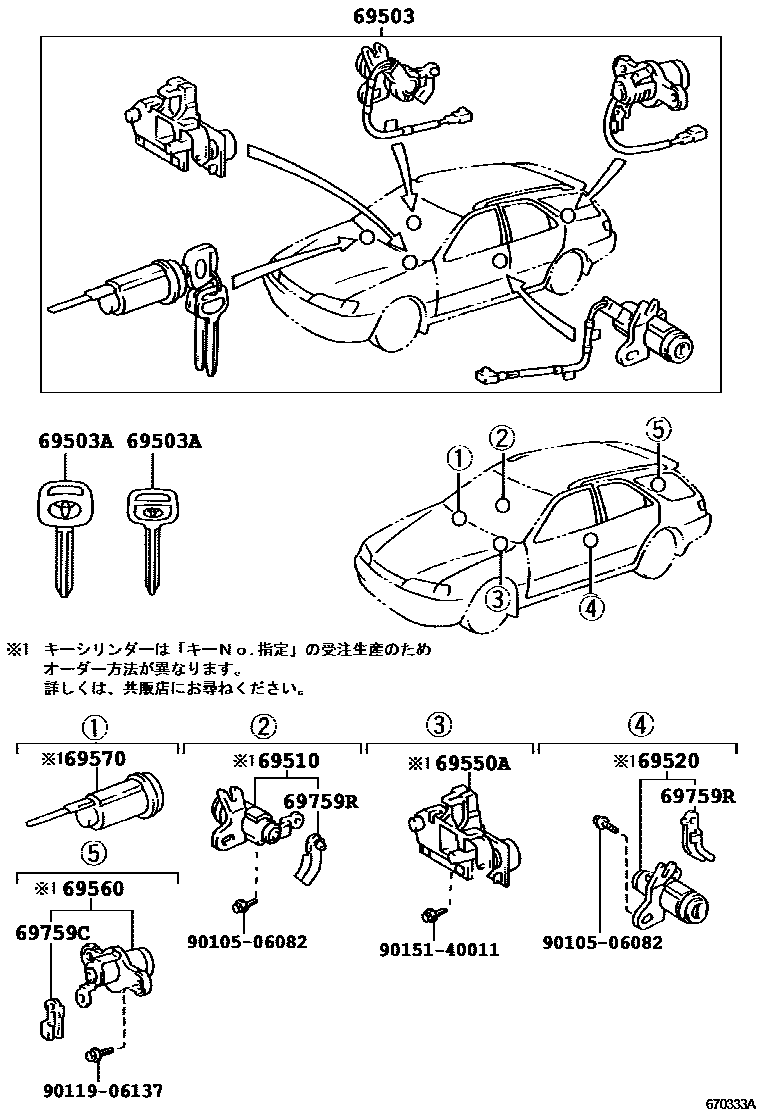

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-33490 · 69005-33491 · 69005-33560 · 69005-33680 · 69005-33790 |
| 69503A | external tooth key | 90999-00194 · 90999-00195 |
| 69510 | Right front door lock cylinder assembly | 69510-33080 |
| 69520 | Left front door lock cylinder assembly | 69520-33090 |
| 69550A | Glove box cover lock cylinder assembly | 69550-33020 |
| 69560 | Rear door lock cylinder assembly | 69560-33140 |
| 69560A | Trunk door lock core assembly | 69560-33100 · 69560-33180 |
| 69570 | Ignition switch lock cylinder assembly | 69570-41010 |
| 69759C | Back door lock cylinder buckle | 69759-20080 |
| 69759G | Trunk door lock core buckle | 69759-20080 · 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
