Toyota CAMRY 背门锁和背门把手 — Figure 6709

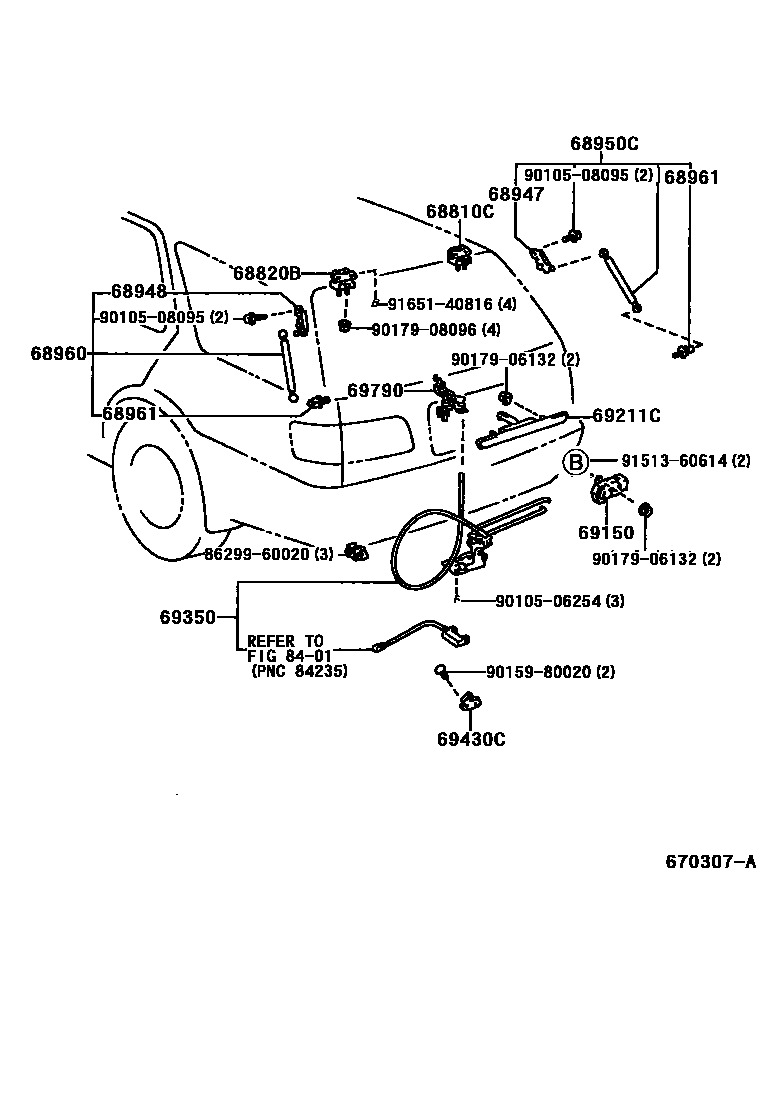

Toyota CAMRY EPC diagram 6709, 背门锁和背门把手, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-21050 · 68810-44010 |
| 68820B | Back door left hinge assembly | 68810-21050 · 68810-44010 |
| 68947 | Back door right damping strut lower bracket | 68945-33010 |
| 68948 | Rear door left damping strut lower bracket | 68946-33010 |
| 68950C | Back door right support rod assembly | 68950-39296 |
| 68960 | Back door left support rod assembly | 68960-39136 |
| 68961 | Rear door support rod bolts | 68961-33010 |
| 69150 | Rear door lock actuator assembly | 69150-33020 |
| 69211C | Back door outer handle | 69023-33010 |
| 69350 | Rear door lock assembly | 69350-33010 |
| 69430C | Back door lock assembly | 69430-33010 |
| 69790 | Rear door lock control assembly | 69790-33010 |
