Toyota CAMRY 背门板和背门玻璃 — Figure 6708

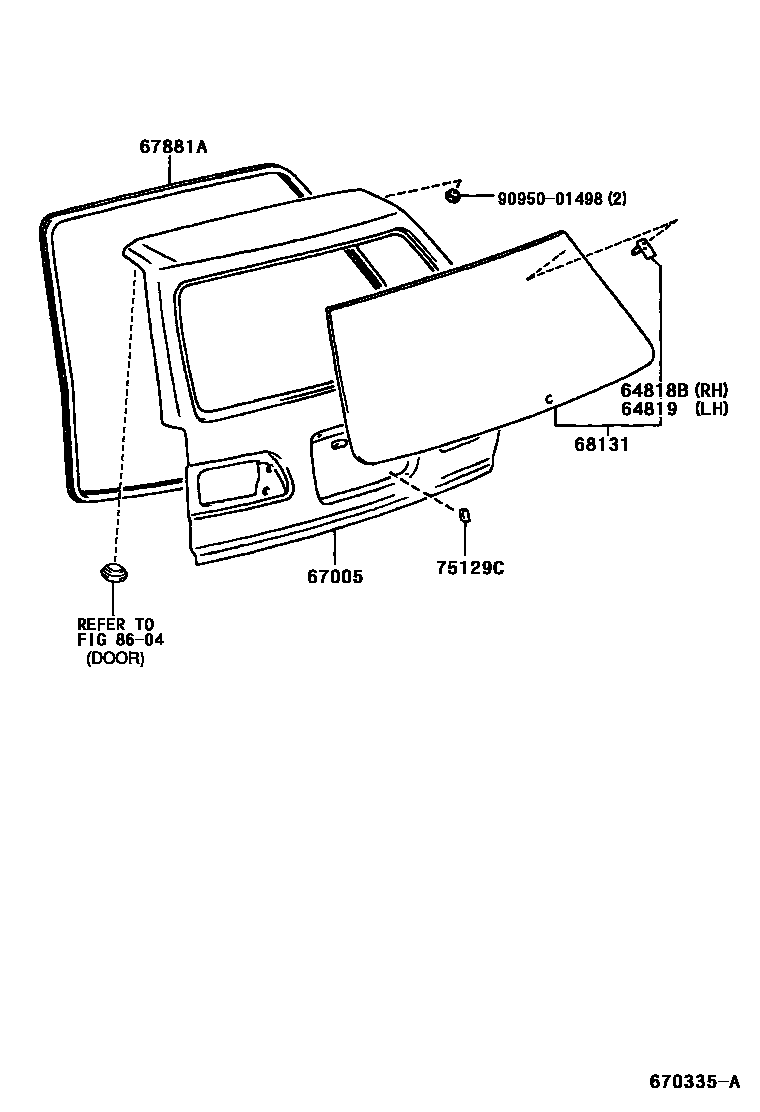

Toyota CAMRY EPC diagram 6708, 背门板和背门玻璃, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64276A | Upper back panel decorative panel bracket | 64276-33020 |
| 64818B | No. 1 back door glass spacer | 64818-33010 |
| 64819 | No. 2 back window glass spacer | 64819-33020 |
| 67005 | Rear door panel sub-assembly | 67005-33010 · 67005-33020 |
| 67881A | Back door seal | 67881-33010 |
| 68131 | back door glass | 68131-33020 · 68131-33040 · 68131-33060 · 68131-33080 · 68131-33090 · 68131-33100 |
| 75129C | rear license plate cushion | 75129-13020 |
