Toyota CAMRY 后门板和后门玻璃 — Figure 6705

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

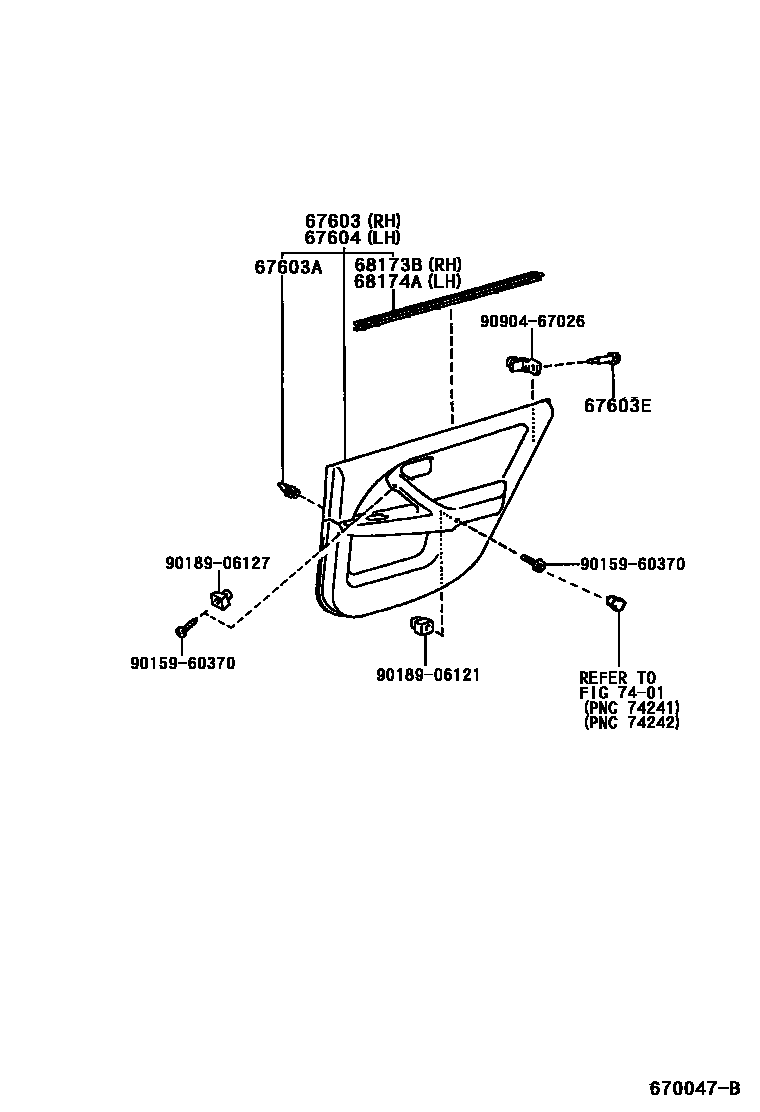

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 670047B
后门板和后门玻璃 — 670047B (199612 – 999999)

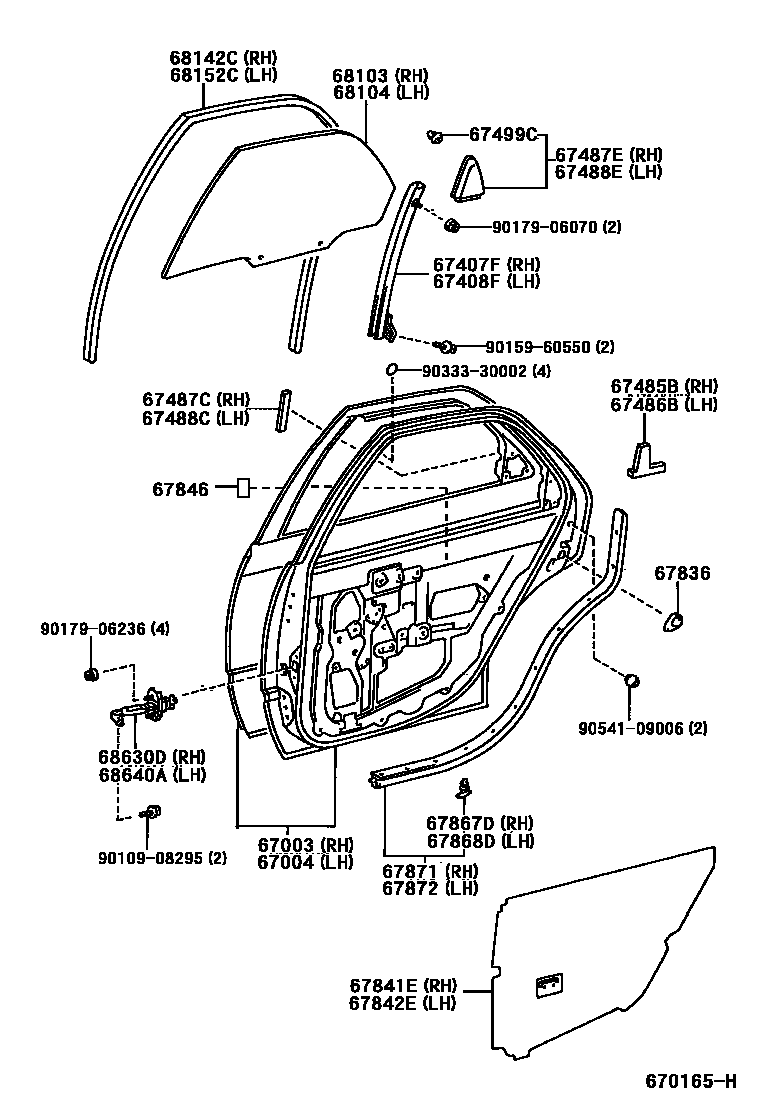

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 670165H
后门板和后门玻璃 — 670165H (199612 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-33060 · 67003-33090
67004Left rear door panel sub-assembly67004-33060 · 67004-33090
67407FRight rear door window rear lower frame sub-assembly67407-33020
67408FLeft rear door window rear lower frame sub-assembly67408-33020
67485BRight rear door divider inner seal67485-33010
67486BLeft rear door divider inner seal67486-33010
67487CRight rear door rear rail seal67487-33030
67487ERight rear door rear rail bracket decorative strip67487-33010
67488CLeft rear door rear rail seal67487-33030
67488ELeft rear door rear guide rail bracket decorative strip67488-33010
67499CFront door lower door frame bracket trim strip fixing67499-12030 · 67499-33010
67603Right rear door decorative panel sub-assembly67630-33300
67603AFixings (for rear door trim)67771-12050
67604Left rear door decorative panel sub-assembly67640-33300
67836Right rear door lock child restraint cover67836-32010
67841ERight rear door access hole cover67841-33030 · 67841-33050
67842ELeft rear door access hole cover67842-33030 · 67842-33050
67846Rear door access hole seal67846-33010
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-33030
67872Left rear door sealing strip67872-33030
68103Right rear door glass sub-assembly68113-33050 · 68113-33070 · 68113-33080 · 68113-33090
68104Left rear door glass sub-assembly68114-33050 · 68114-33070 · 68114-33080 · 68114-33090
68142CRight rear door glass lift slot68142-33030 · 68142-33050
68152CLeft rear door glass lift slot68152-33030 · 68152-33050
68173BRight rear door glass inner sealing strip68173-33010
68174ALeft rear door glass inner sealing strip68173-33010 · 68174-33020
68630DRight rear door opening limiter assembly68630-33030 · 68630-33031
68640ALeft rear door opening limiter assembly68640-33030 · 68640-33031
