Toyota CAMRY 前门锁和车门把手 — Figure 6703

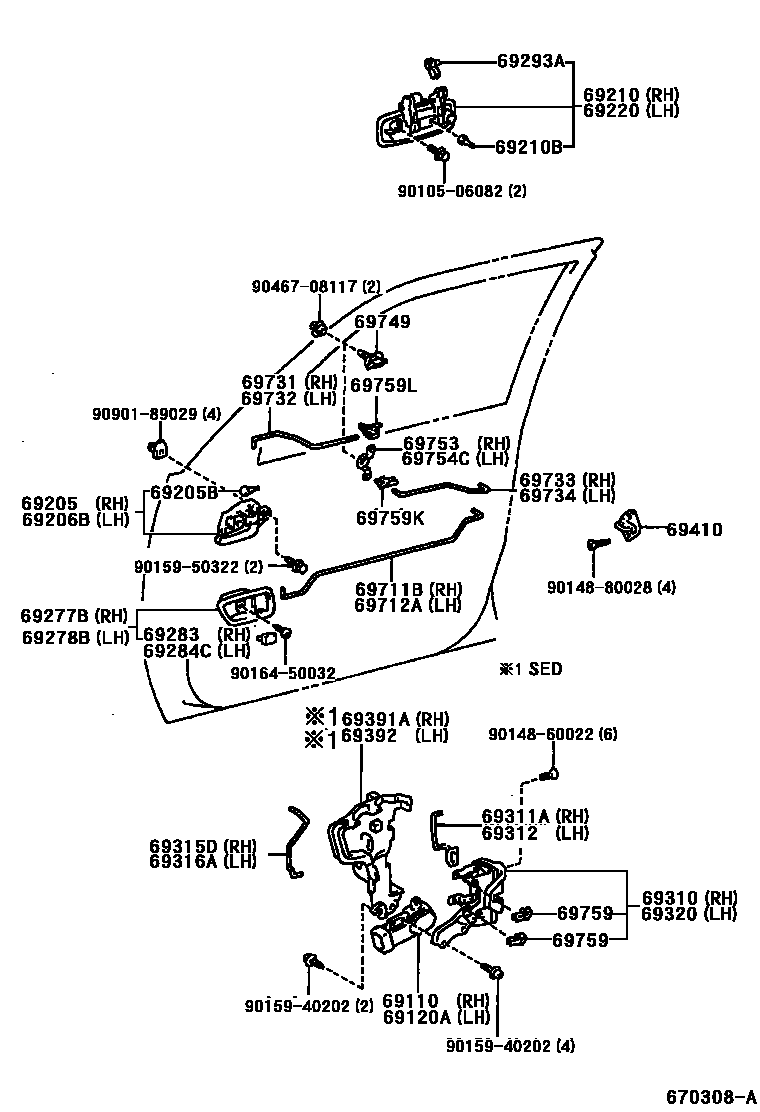

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-33010 |
| 69120A | Left front door lock actuator assembly | 69120-33010 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04018 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 · 69293-33010 · 69293-33020 |
| 69310 | Right front door lock assembly | 69303-33010 |
| 69311A | Right front door lock opening lever | 69311-33020 |
| 69312 | Left front door lock opening lever | 69312-33020 |
| 69315D | Right front door outer locking link | 69315-33010 |
| 69316A | Left front door outer locking link | 69316-33010 |
| 69320 | Left front door lock assembly | 69304-33010 |
| 69391A | Right front door lock outer cover | 69391-33010 |
| 69392 | Left front door lock outer cover | 69392-33010 |
| 69410 | Front door lock plate assembly | 69410-20070 |
| 69711B | Right front door lock remote control lever | 69711-33030 |
| 69712A | Left front door lock remote control lever | 69712-33030 |
| 69731 | Right front door No. 1 inner locking link | 69731-33020 |
| 69732 | Left front door No. 1 inner locking link | 69732-33020 |
| 69733 | Right front door inner locking link | 69733-33030 |
| 69734 | Left front door inner locking link | 69734-33020 |
| 69749 | Front door lock link clip | 69749-32030 · 69749-33010 |
| 69753 | Right-hand door lock control right-angle lever | 69753-33030 |
| 69754C | Left door lock control right angle lever | 69753-33030 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-24050 · 69759-24060 |
| 69759K | Door lock control link buckle | 69759-24080 · 69759-24090 |
| 69759L | Door lock control link buckle | 69759-20410 |
