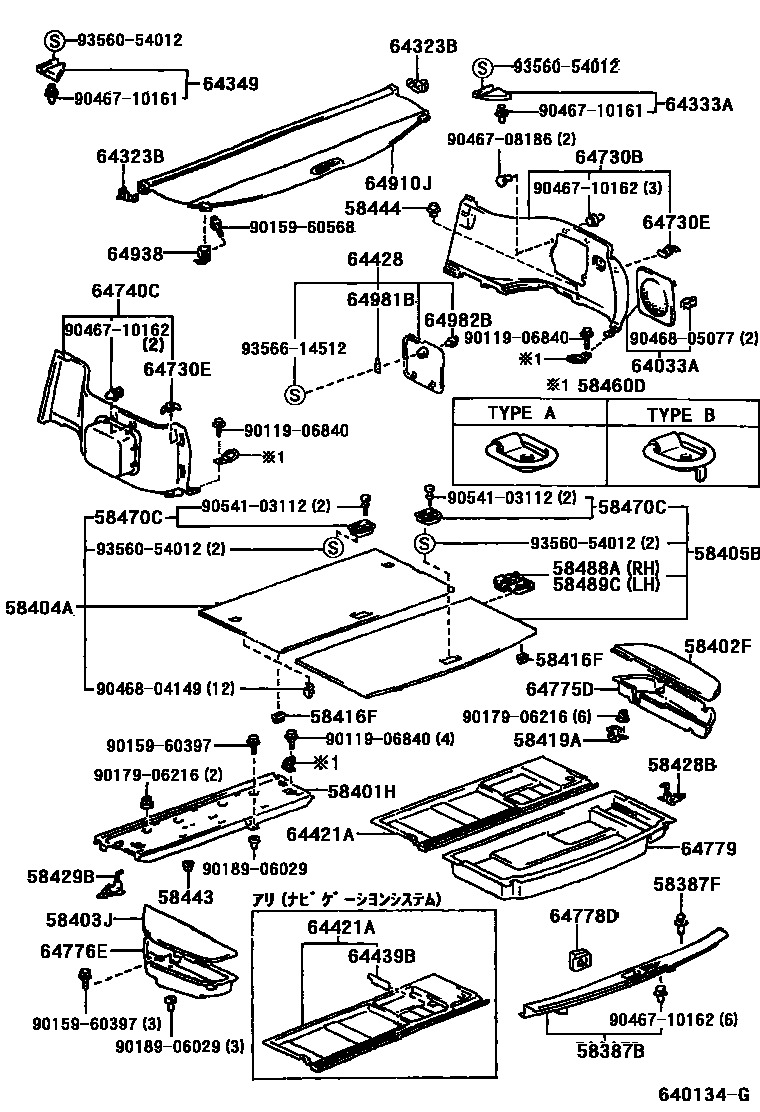

Toyota CAMRY 底板和底板装饰罩 — Figure 6404
Toyota CAMRY EPC diagram 6404, 底板和底板装饰罩, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58419A | No. 3 base plate bracket | 58419-33010 · 58419-33020 · 58419-33030 · 58419-33040 |
| 58428B | No. 5 bottom plate right bracket | 58428-33020 |
| 58429B | No. 5 base plate left bracket | 58429-33020 |
| 58443 | Base plate cushion No. 1 | 58443-33010 |
| 58444 | Base plate cushion No. 2 | 58444-33010 |
| 58460D | Luggage fixing belt lock assembly | 58460-33010 · 58460-33020 |
| 58488A | Base plate right spring | 58488-33010 |
| 58489C | Base plate left spring | 58489-33010 |
| 64323B | Luggage cover card holder | 64323-33020 |
| 64421A | luggage carrier | 64421-33010 · 64421-33020 |
| 64439B | Trunk right side cover | 64439-33010 |
| 64730E | Clip (for bottom panel side decorative panel) | 67771-33060 |
| 64775D | Spare tire protection device | 64775-33020 |
| 64776E | No. 2 spare tire protection device | 64776-33020 |
| 64778D | Spare tire protection device | 64778-33020 |
| 64779 | Spare tire cover bracket | 64779-33020 · 64779-33030 |
| 64981B | Bottom panel side decorative cover stopper | 64981-16021 |
