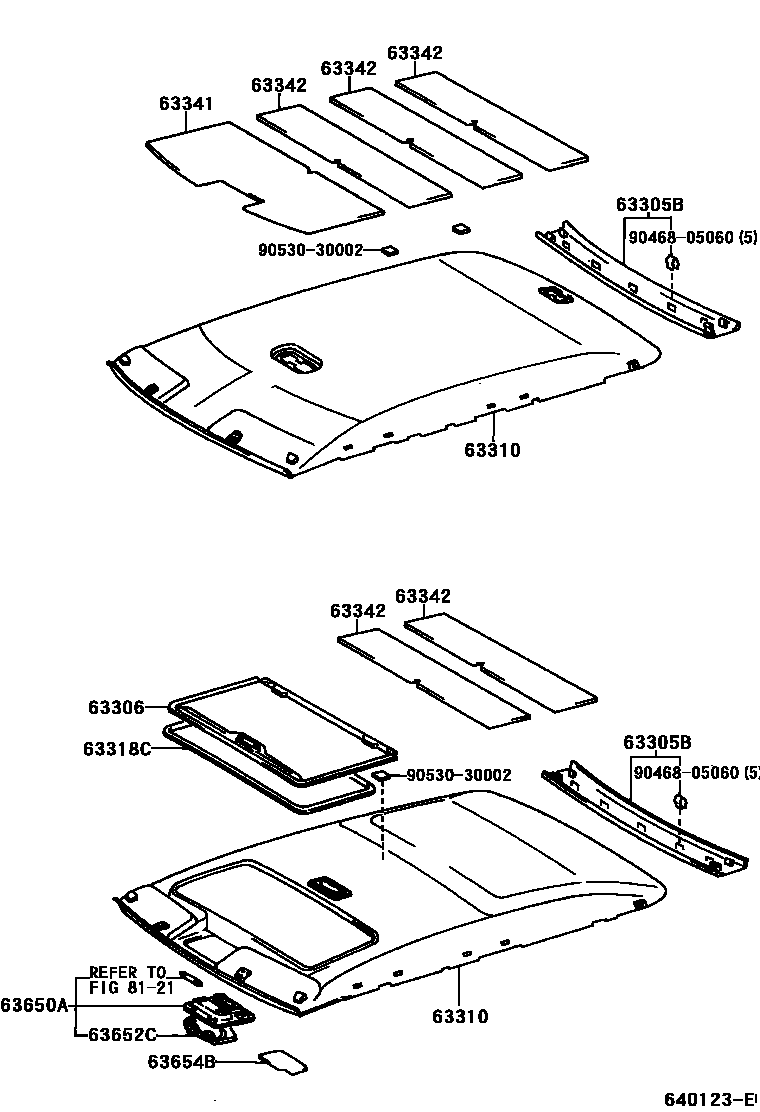

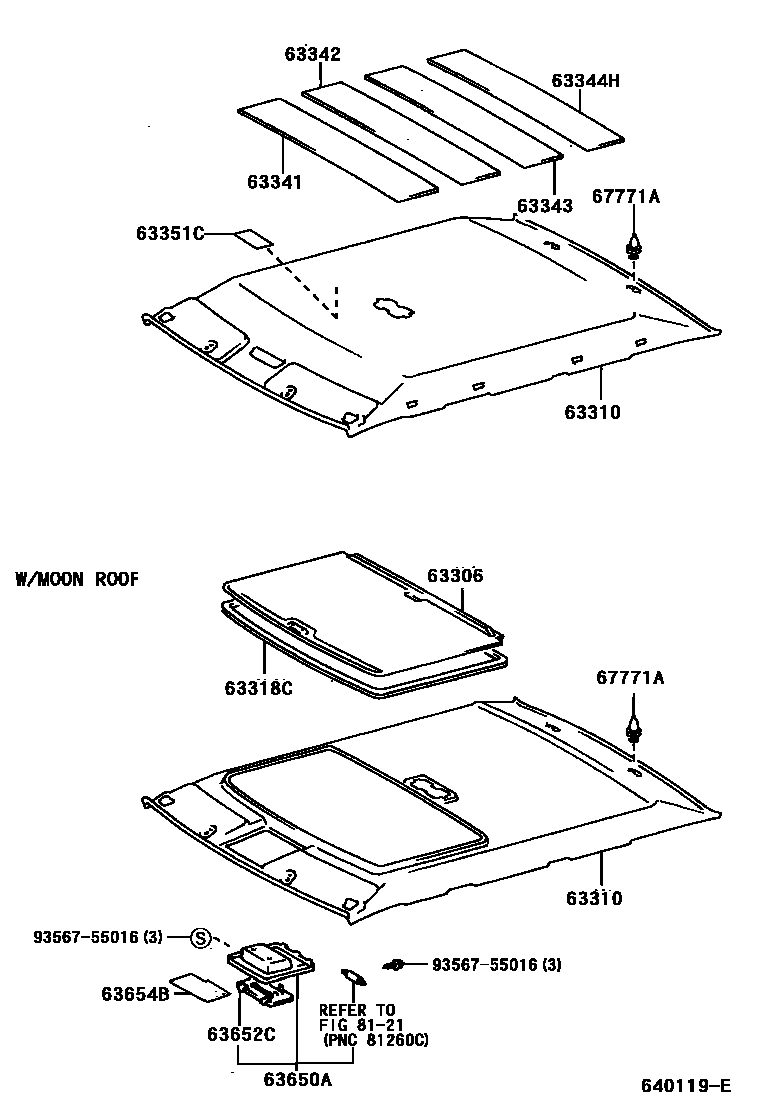

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63318C | Skylight opening decorative strip | 63318-33010 |
| 63341 | No. 1 roof silencer mat | 63341-33010 · 63343-32070 |
| 63342 | No. 2 roof muffler pad | 63342-33040 · 63343-32070 |
| 63343 | No. 3 roof muffler pad | 63343-32070 |
| 63344H | No. 4 roof silencer mat | 63343-32070 |
| 63351C | roof lining pads | 63351-33010 |
| 63654B | Roof console inner cover | 63654-33010 |
| 67771A | headliner fixings | 67771-12040 |
