Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

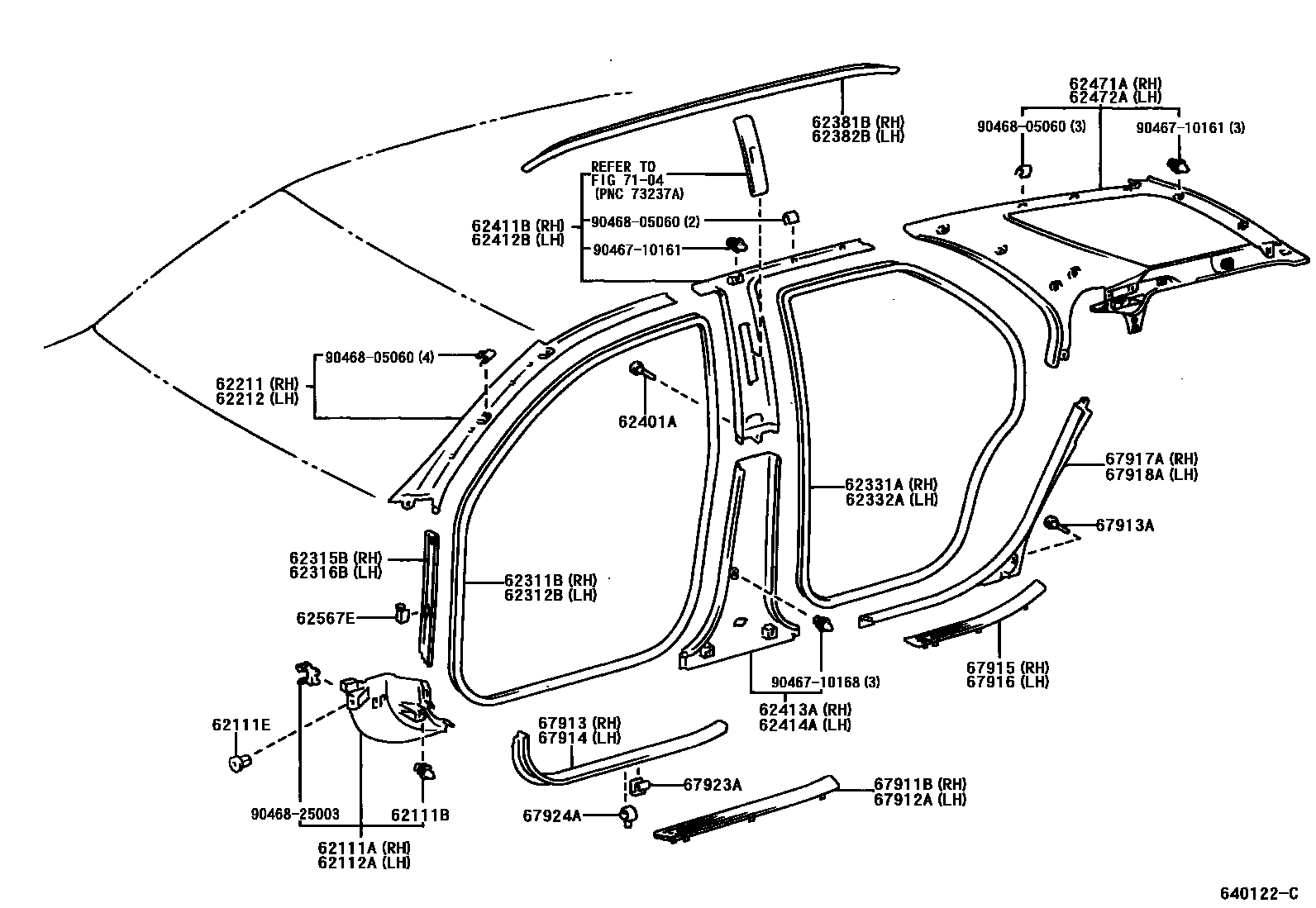

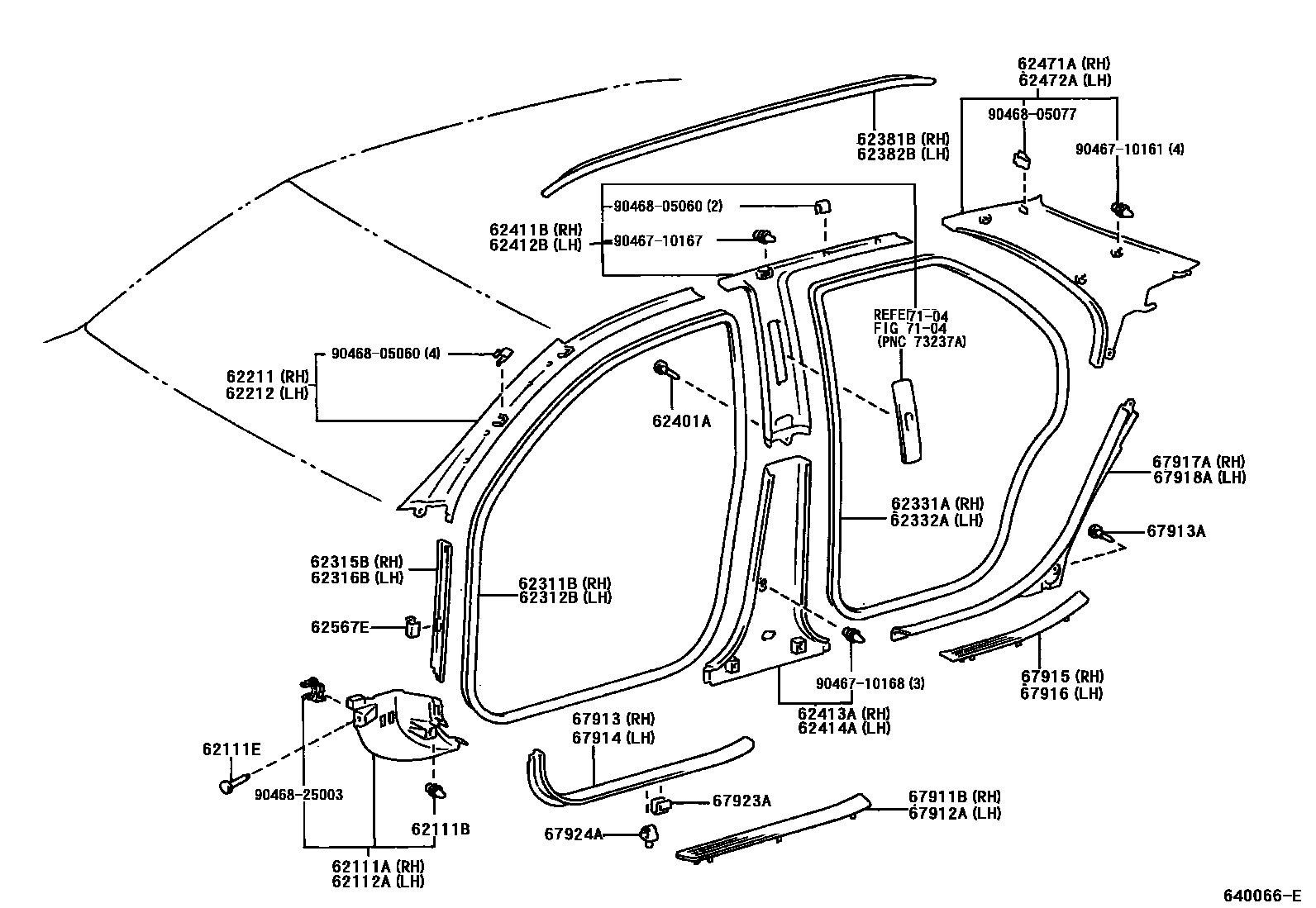

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 67771-33040 · 90467-11083 |
| 62311B | Right front door opening waterproof tape | 62311-33030 · 62311-33031 |
| 62312B | Left front door opening waterproof tape | 62312-33030 · 62312-33031 |
| 62331A | Right rear door opening waterproof tape | 62331-33030 · 62331-33031 · 62331-33050 · 62331-33051 |
| 62332A | Left rear door opening waterproof tape | 62332-33030 · 62332-33031 · 62332-33050 · 62332-33051 |
| 62381B | Roof right side rail seal strip | 62381-33020 · 62381-33040 |
| 62382B | Roof left side rail seal strip | 62382-33020 · 62382-33040 |
| 62401A | Clips (for decorative panels on center pillars) | 90167-50057 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33010 · 62567-33020 |
| 67911B | Right front door outer wear plate | 67911-33010 |
| 67912A | Left front door outer wear plate | 67912-33010 |
| 67915 | Right rear door outer wear plate | 67915-33010 |
| 67916 | Left rear door outer wear plate | 67916-33010 |
| 67923A | Car door No. 1 wear plate clip | 62567-33010 · 62567-33020 |
| 67924A | Door No. 2 wear plate clip | 67924-33010 |
