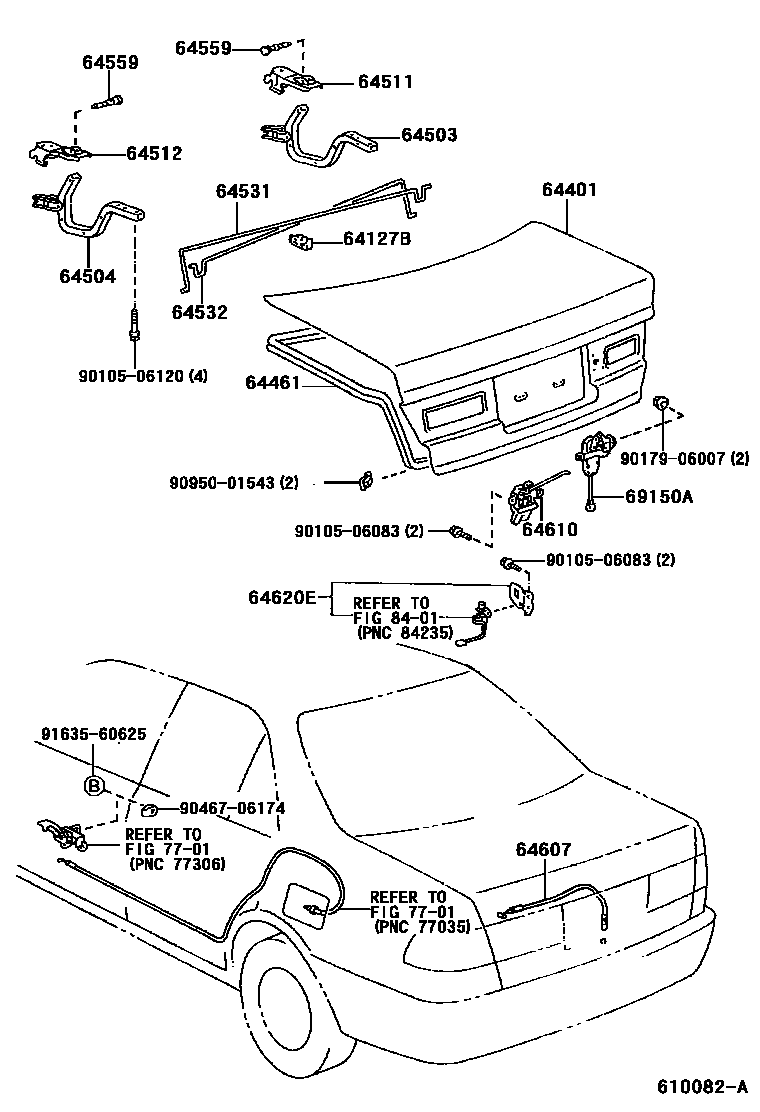

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-33180 · 64401-33230 |
| 64461 | Trunk door seal | 64461-33030 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-33030 · 64503-33060 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-33030 · 64503-33060 |
| 64511 | Trunk door right hinge bracket | 64511-33030 |
| 64512 | Trunk door left hinge bracket | 64512-33030 |
| 64531 | Trunk door right hinge torsion bar | 64531-33040 · 64531-33100 · 64531-33110 · 64531-33130 · 64531-33160 |
| 64532 | Trunk door left hinge torsion bar | 64532-33040 · 64532-33100 · 64532-33110 · 64532-33130 · 64532-33160 |
| 64559 | Trunk door hinge pin | 64559-32020 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-33060 |
| 64610 | Trunk door lock assembly | 64610-33030 · 64610-33040 |
| 64620E | Trunk door lock assembly | 64620-33010 |
| 69150A | Rear door lock actuator assembly | 69150-33010 |
