Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

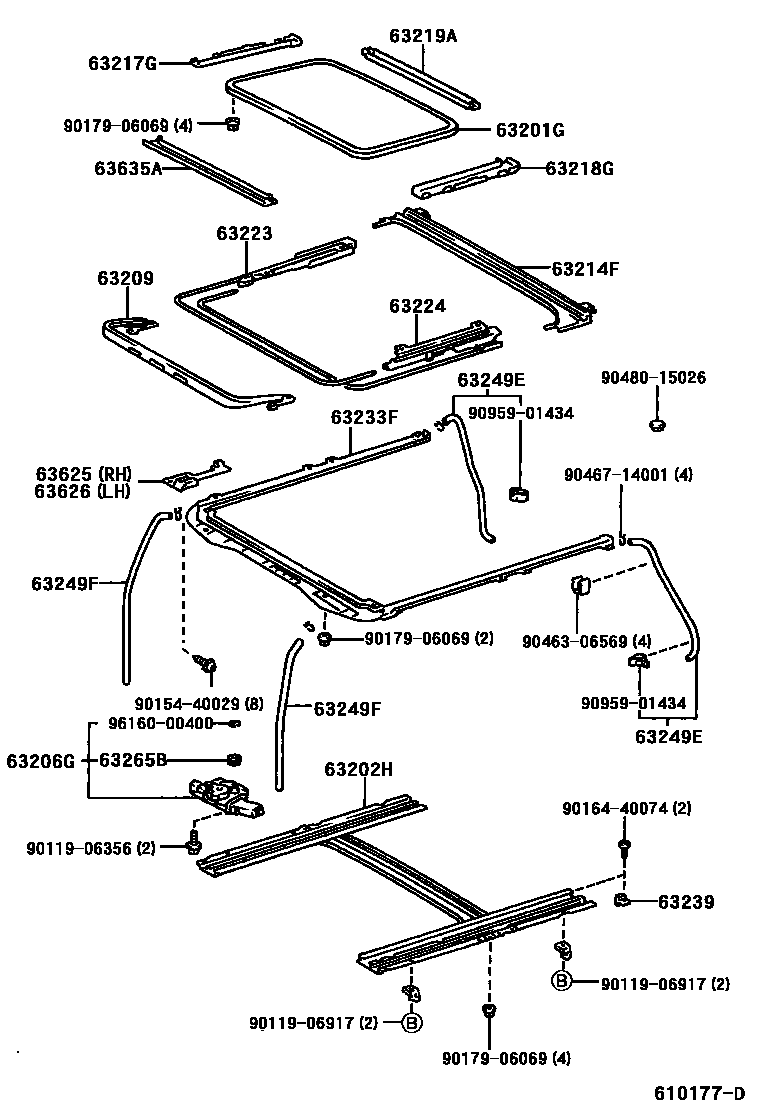

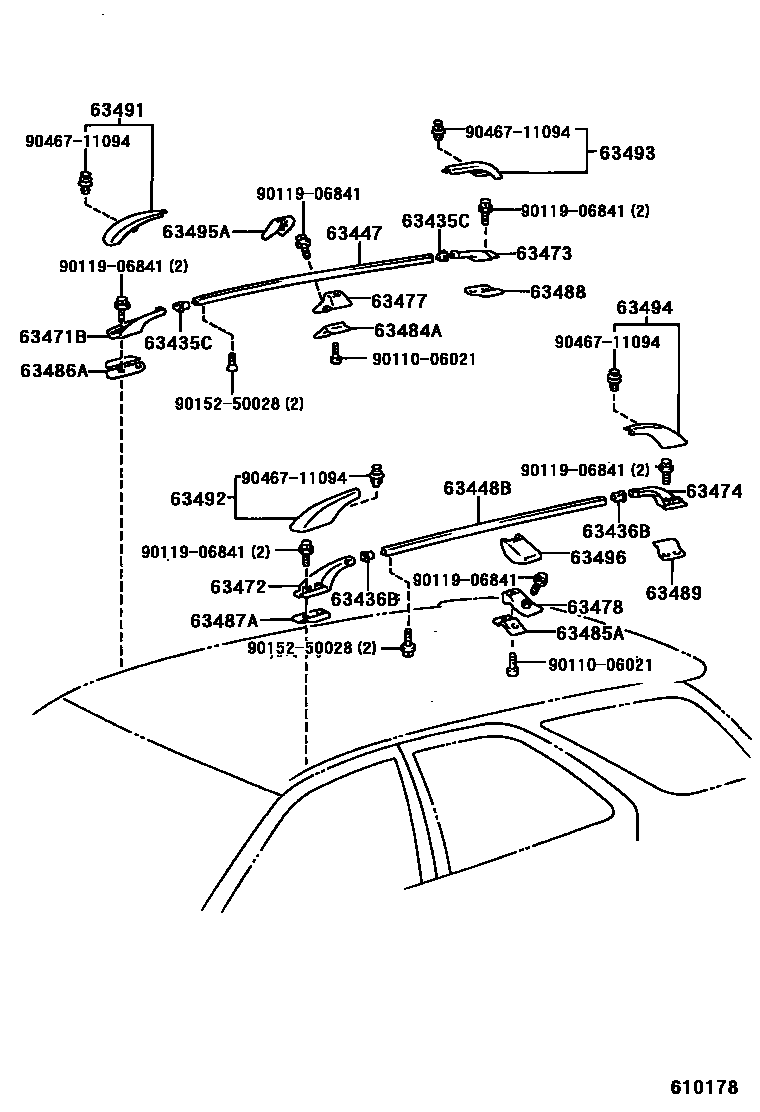

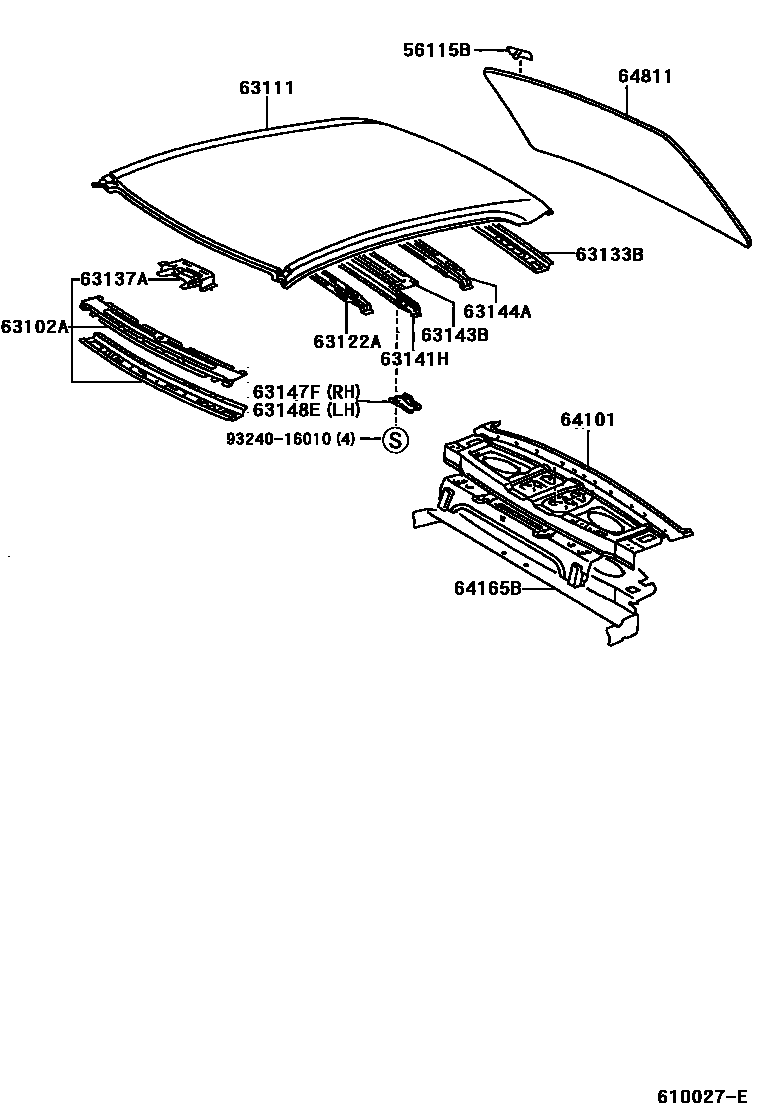

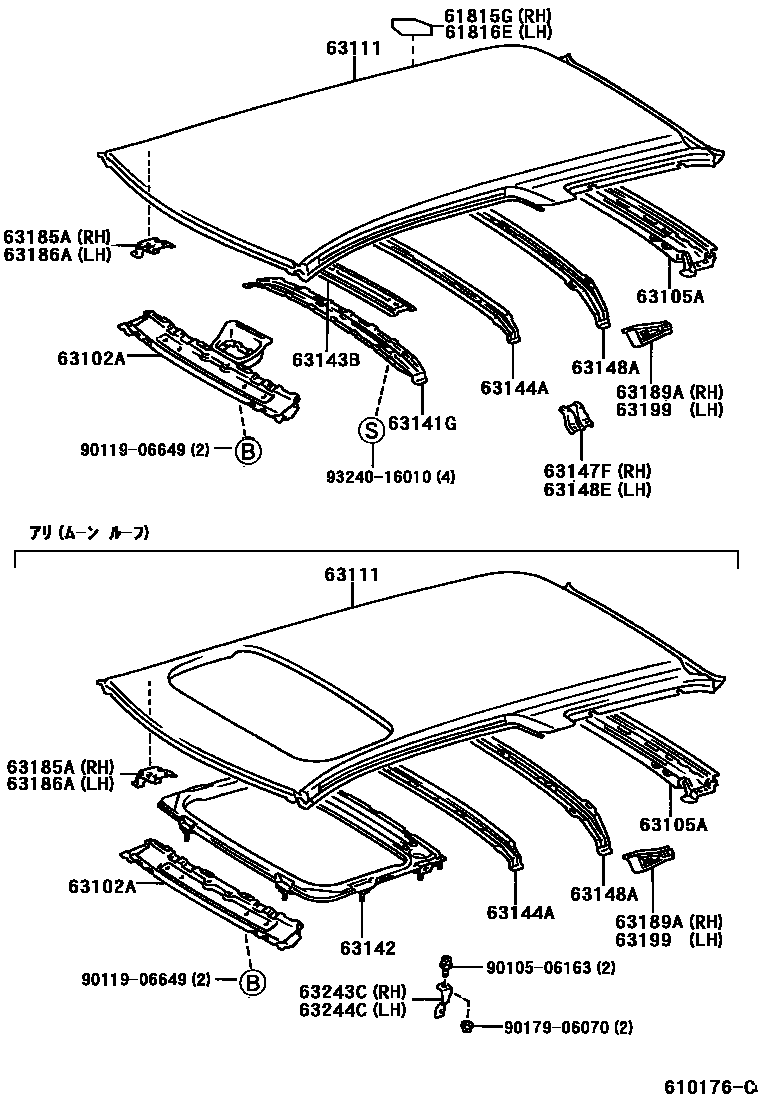

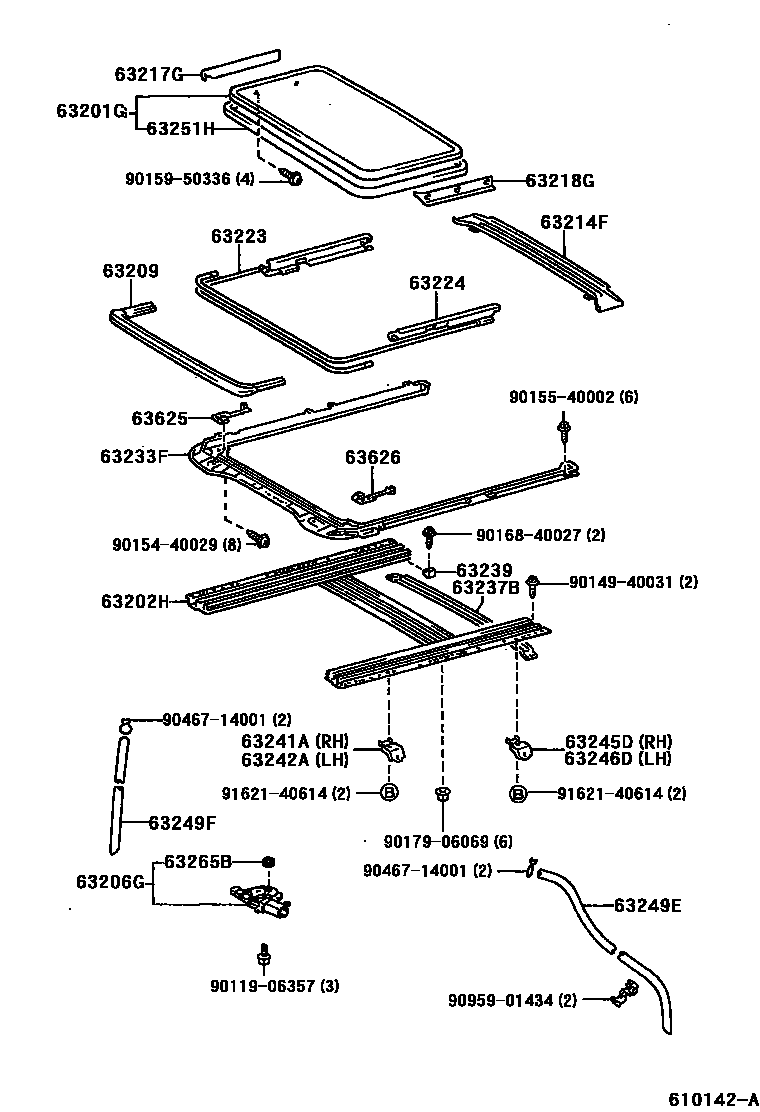

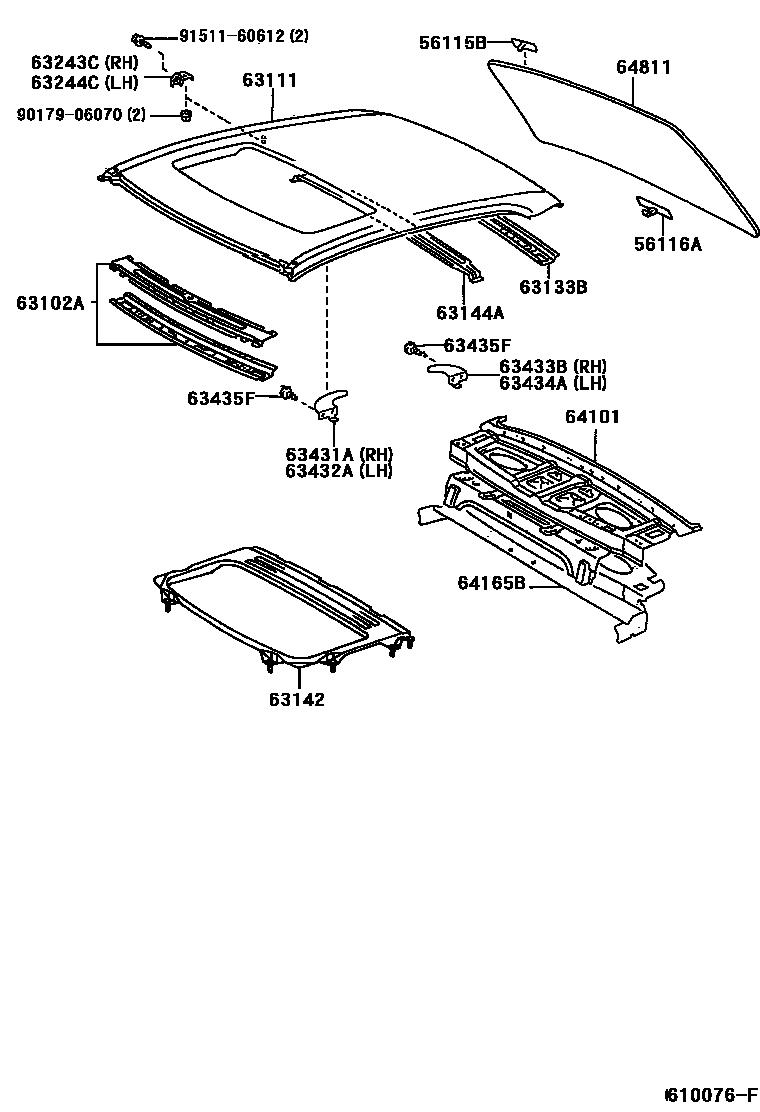

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 6 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56116-35040 |
| 56116A | windshield spacer | 56116-35040 |
| 61815G | Roof left inner upper cover | 61816-33020 |
| 61816E | Roof left inner upper cover | 61816-33020 |
| 63102A | Windshield roof sub-assembly | 63102-33060 · 63102-33061 · 63102-33070 · 63102-33071 · 63102-33100 · 63102-33110 |
| 63105A | Back door opening frame sub-assembly | 63105-33010 |
| 63111 | roof panel | 63111-33110 · 63111-33120 · 63111-33150 · 63111-33160 |
| 63122A | Front roof panel reinforcement | 63122-AA010 |
| 63133B | back window frame | 63133-AA020 · 63133-AA030 |
| 63137A | No. 1 ceiling light bracket | 63137-33040 |
| 63141G | No. 1 roof panel reinforcement | 63141-33040 |
| 63141H | Center roof panel reinforcement | 63141-AA010 · 63141-AA021 |
| 63142 | No. 2 roof panel reinforcement | 63142-33020 · 63142-33030 |
| 63143B | No. 3 roof panel reinforcement | 63143-33040 · 63143-AA020 |
| 63144A | No. 4 roof panel reinforcement | 63144-33060 · 63144-AA020 · 63144-AA030 |
| 63147F | Right roof panel reinforcement bracket | 63147-33010 · 63147-33020 |
| 63148A | No. 7 roof panel reinforcement | 63148-33020 |
| 63148E | Left roof panel reinforcement bracket | 63147-33010 · 63147-33020 |
| 63185A | Right front roof rack bracket | 63185-33020 |
| 63186A | Left front roof rack bracket | 63186-33020 |
| 63189A | Center roof rack bracket | 63189-33020 |
| 63199 | Left center roof rack bracket | 63199-33020 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-22110 · 63201-33050 · 63201-33051 · 63201-33070 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-33010 · 63202-33030 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-33010 |
| 63209 | Roof deflector sub-assembly | 63209-22040 · 63209-33030 · 63209-33040 · 63209-33050 · 63209-33080 |
| 63214F | Roof rear drain channel | 63214-33020 |
| 63217G | Right sliding sunroof trim | 63217-22040 · 63217-33030 |
| 63218G | Sliding sunroof trim, left | 63217-33030 · 63218-22040 |
| 63219A | Rear sliding sunroof trim | 63219-22040 |
| 63223 | Right sliding sunroof transmission cable | 63223-33020 · 63223-33030 |
| 63224 | Left sliding sunroof transmission cable | 63224-33020 · 63224-33030 |
| 63233F | Removable skylight frame | 63233-33030 · 63233-33031 · 63233-33040 |
| 63237B | Rear sliding sunroof frame | 63237-33010 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-33020 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-33020 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-33050 · 63243-33070 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-33050 · 63243-33070 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-33020 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-33020 |
| 63249E | Sliding skylight drain hose | 63249-33030 · 63249-33031 · 63249-33040 |
| 63251H | Sliding skylight seal | 63251-33020 · 63251-33021 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63431A | No. 1 roof right inner luggage rack bracket | 63431-33010 · 63431-33020 |
| 63432A | No. 1 roof left inner luggage rack bracket | 63432-33010 · 63432-33020 |
| 63433B | No. 2 roof right inner luggage rack bracket | 63433-33010 |
| 63434A | No. 2 roof left inner luggage rack bracket | 63434-33010 |
| 63435C | Roof right storage rack No. 1 seal | 63435-33010 |
| 63435F | Roof rack No. 1 seal | 63435-12030 |
| 63436B | Roof left storage rack No. 1 seal | 63436-33010 |
| 63484A | Right center roof rack foot cushion | 63484-33010 |
| 63485A | Left center roof rack foot cushion | 63485-33010 |
| 63486A | Right front roof rack support foot cushion | 63486-33010 |
| 63487A | Left front roof rack support foot cushion | 63487-33010 |
| 63488 | Right rear roof rack foot cushion pad | 63488-33010 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-33010 |
| 63625 | Right sliding sunroof guide block | 63625-33020 · 63625-33030 |
| 63626 | Left sliding sunroof guide block | 63626-33020 · 63626-33030 |
| 63635A | Front sliding sunroof trim | 63635-22040 |
| 64101 | Upper back panel sub-assembly | 64101-33140 · 64101-33230 · 64101-33240 |
| 64165B | No. 1 upper back panel hole cover | 64165-33040 |
| 64811 | back window glass | 64811-33250 · 64811-33260 · 64811-33900 · 64811-33904 |
