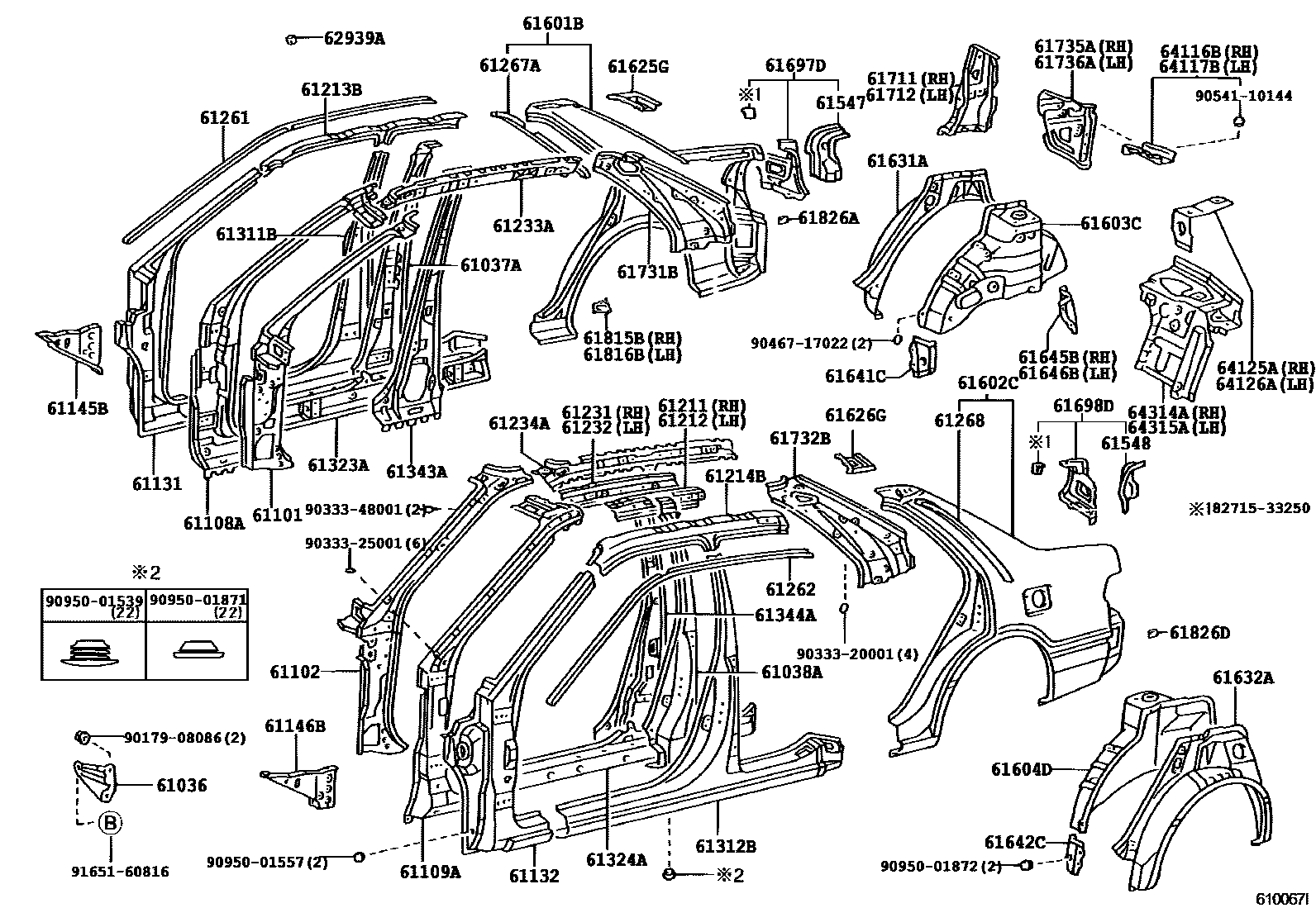

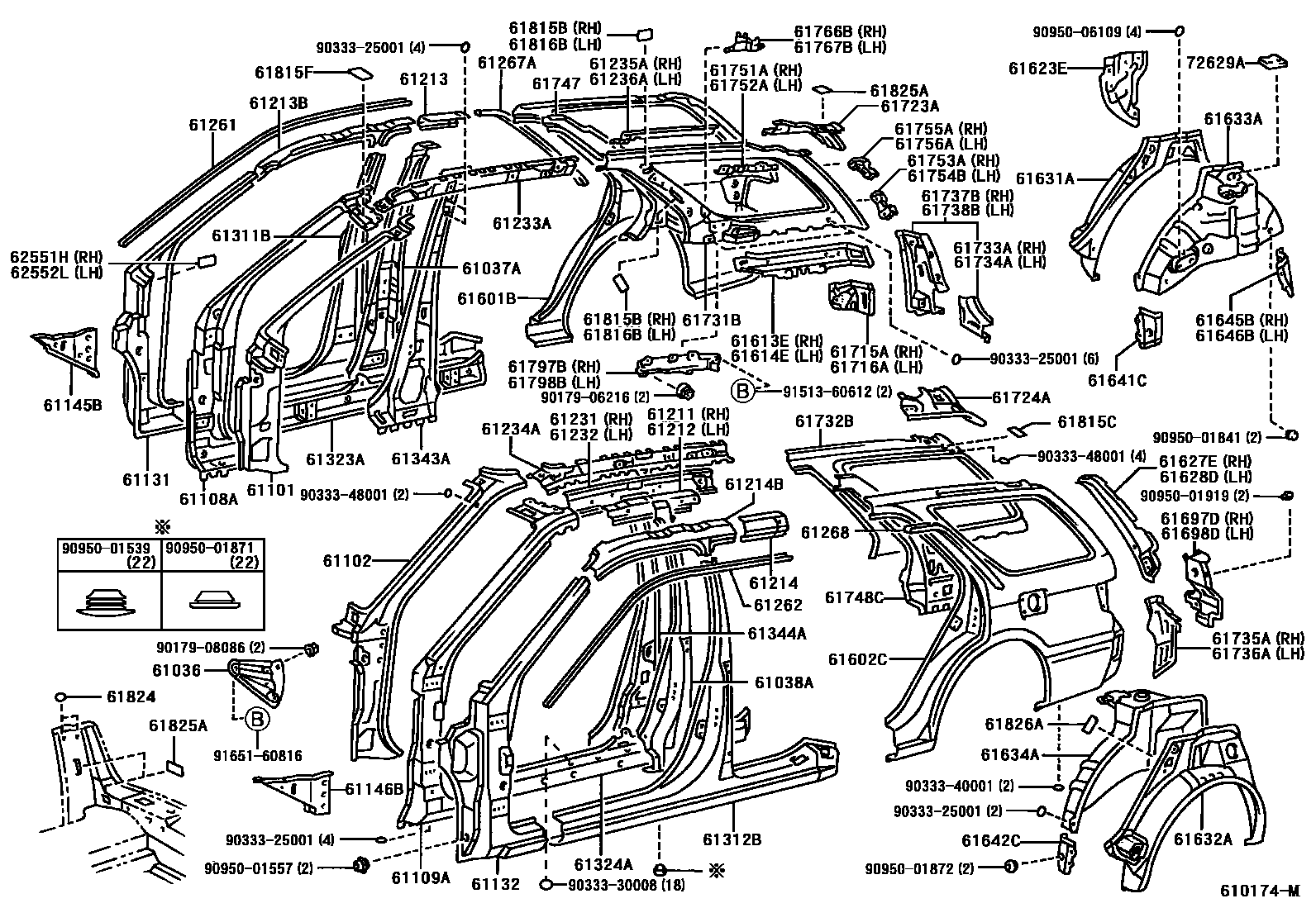

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 100 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-33020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61047-33030 · 61047-33031 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61048-33030 · 61048-33031 |
| 61101 | Right front wall side panel sub-assembly | 61101-33030 |
| 61102 | Left front wall side panel sub-assembly | 61102-33040 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61106-33010 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61107-33010 |
| 61131 | Right body outer front upper pillar | 61131-33020 |
| 61132 | Left body outer front upper pillar | 61132-33020 |
| 61145B | Right body front pillar lower corner panel | 61145-33020 |
| 61146B | Left body front pillar lower corner panel | 61146-33020 |
| 61211 | Roof right outer longitudinal beam | 61211-AA020 |
| 61212 | Roof left outer longitudinal beam | 61212-AA020 |
| 61213 | Right rear roof outer longitudinal beam | 61213-33010 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-33020 · 61213-33040 |
| 61214 | Left rear roof rail | 61214-33010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-33020 · 61214-33040 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-33050 · 61231-33051 · 61231-AA020 · 61231-AA021 |
| 61232 | Roof left inner longitudinal beam | 61232-33050 · 61232-33051 · 61232-AA020 · 61232-AA021 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-33020 · 61233-33021 · 61233-33070 · 61233-33071 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-33060 · 61234-33061 · 61234-33070 · 61234-33071 |
| 61235A | No. 3 longitudinal beam inside the right side of the roof | 61235-33010 |
| 61236A | No. 3 longitudinal beam on the inner left side of the roof | 61236-33010 |
| 61261 | Drainage channel on the right side of the roof | 61261-33010 · 61261-33030 |
| 61262 | Drainage channel on the left side of the roof | 61262-33010 · 61262-33030 |
| 61267A | Roof right rear gutter | 61267-33020 · 61267-33040 |
| 61268 | Roof left rear gutter | 61268-33020 · 61268-33040 |
| 61311B | Right body outer center pillar | 61311-33010 |
| 61312B | Left body outer center pillar | 61312-33010 |
| 61323A | Right body center pillar lower reinforcement | 61305-33010 |
| 61324A | Left body center pillar lower reinforcement | 61306-33010 |
| 61343A | Right body inner center pillar | 61307-33010 · 61307-33020 · 61307-33021 |
| 61344A | Left body inner center pillar | 61308-33010 · 61308-33020 · 61308-33021 |
| 61547 | Inner right corner window pillar reinforcement | 61547-AA010 |
| 61548 | Inner left corner window pillar reinforcement | 61548-AA010 |
| 61601B | Right side enclosure sub-assembly | 61601-33908 · 61601-33914 |
| 61602C | Left side enclosure sub-assembly | 61602-33904 · 61602-33908 |
| 61603C | Right wheel cover sub-assembly | 61607-33901 |
| 61604D | Left side wheel cover sub-assembly | 61608-33901 |
| 61613E | Right side inner panel | 61613-33010 |
| 61614E | Left side inner panel | 61614-33010 |
| 61623E | Right rear side panel inner panel extension | 61623-33010 |
| 61625G | Right rear side panel extension | 61625-33020 · 61625-33021 |
| 61626G | Left rear side panel extension | 61626-33020 · 61626-33021 |
| 61627E | Right rear side panel lower extension | 61627-33900 |
| 61628D | Left rear side panel lower extension | 61628-33900 |
| 61631A | Right wheel cover outer panel | 61631-33900 · 61631-33901 |
| 61632A | Left side wheel cover outer panel | 61632-33900 · 61632-33901 |
| 61633A | Right wheel housing lining panel | 61607-33903 |
| 61634A | Left side wheel housing lining panel | 61608-33903 |
| 61641C | Right front side wheel housing corner panel | 61641-33010 |
| 61642C | Left front side wheel housing corner panel | 61642-33010 |
| 61645B | Right rear side wheel housing corner panel | 61645-33010 |
| 61646B | Left rear side wheel housing corner panel | 61646-33010 |
| 61697D | Right side enclosure end cover | 61697-33040 · 61697-33900 · 61697-33902 |
| 61698D | Left side enclosure end cover | 61698-33040 · 61698-33900 · 61698-33902 |
| 61711 | Roof right side outer panel | 61711-33020 |
| 61712 | Roof left outer panel | 61712-33020 |
| 61715A | Roof right inner upper extension | 61715-33010 · 61715-33011 |
| 61716A | Roof left inner upper extension | 61716-33010 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-33010 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-33010 |
| 61731B | Roof right inner panel | 61731-33060 · 61731-33061 · 61731-33080 |
| 61732B | Roof left inner panel | 61732-33050 · 61732-33051 · 61732-33070 |
| 61733A | Right front roof inner panel | 61733-33010 |
| 61734A | Left front roof inner panel | 61734-33010 |
| 61735A | Right rear roof inner panel | 61735-33010 · 61735-33011 · 61735-33012 · 61735-33030 |
| 61736A | Left rear roof inner panel | 61736-33010 · 61736-33012 · 61736-33030 |
| 61737B | Right inner lower panel of the roof | 61737-33900 |
| 61738B | Roof left inner lower panel | 61738-33900 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-33010 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-33010 |
| 61751A | Right side decorative panel fixing | 61751-33010 |
| 61752A | Left side decorative panel fixing | 61752-33010 |
| 61753A | Side panel lower fixings | 61753-33010 |
| 61754B | Left side decorative panel lower fixing piece | 61754-33010 |
| 61755A | Upper fixing piece for the decorative part on the right side of the base plate | 61755-33010 |
| 61756A | Upper fixing piece for the decorative part on the left side of the floor panel | 61756-33010 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-33020 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-33020 |
| 61797B | Right rear fender outer panel rear stay | 61797-33010 |
| 61798B | Left rear fender outer panel rear stay | 61798-33010 |
| 61815B | Right inner upper cover of the roof | 61815-16030 · 61815-33040 |
| 61815C | Inner roof cover | 61825-20180 |
| 61815F | No. 2 inner cover on the right side of the roof | 61815-16030 |
| 61816B | Roof left inner upper cover | 61815-16030 · 61815-33040 |
| 61824 | Noise Control Panel No. 1 | 61824-20100 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61826A | Noise Control Panel No. 3 | 61825-12010 · 61826-30030 |
| 61826D | Noise Control Panel No. 3 | 61825-12010 · 61826-30030 |
| 62551H | No. 1 right column pad | 62939-32020 |
| 62552L | No. 1 left column pad | 62939-32020 |
| 62939A | Side ventilation silencers | 62939-32020 |
| 64116B | Right rear upper reinforcement | 64116-33030 |
| 64117B | Left rear upper reinforcement | 64117-33030 |
| 64125A | Upper right back panel bracket | 64125-33020 |
| 64126A | Upper left back panel bracket | 64126-33020 |
| 64314A | Glove box bracket right reinforcement | 64304-33900 |
| 64315A | Glove box bracket left reinforcement | 64305-33900 |
| 72629A | Rear seat back lock silencer | 72629-33010 |
