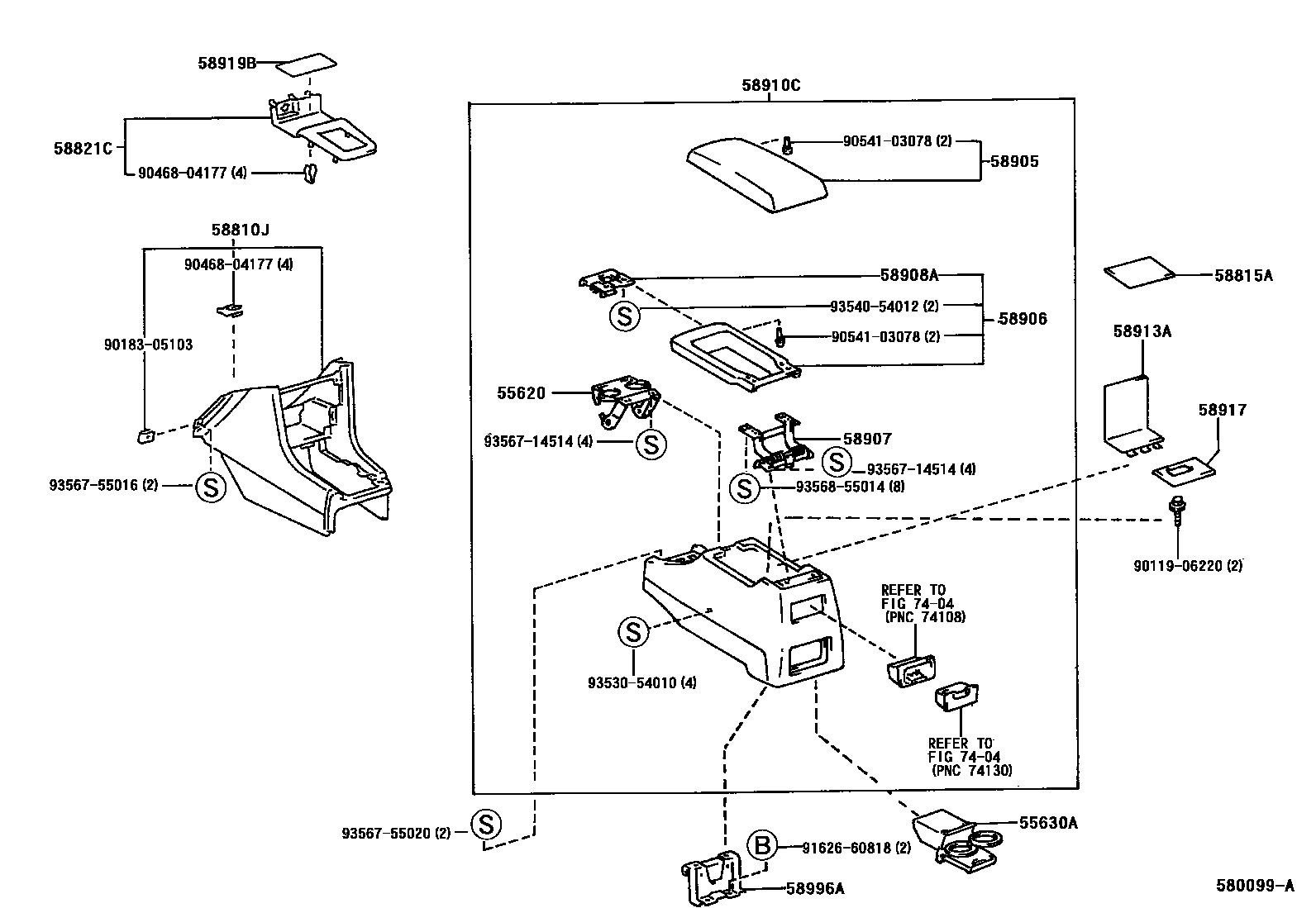

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-33070 |
| 58821C | Armrest box upper panel | 58804-33100 · 58804-33120 · 58804-33230 · 58804-33250 · 58804-33260 · 58804-33270 |
| 58905 | Armrest box cover sub-assembly | 58905-33170 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-33060 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58910C | Rear armrest box assembly | 58910-33180 |
| 58913A | Armrest box panel No. 3 | 58913-33030 |
| 58917 | Armrest box bottom pad No. 2 | 58917-33050 |
| 58919B | Armrest box nameplate | 58919-33020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-33020 |
