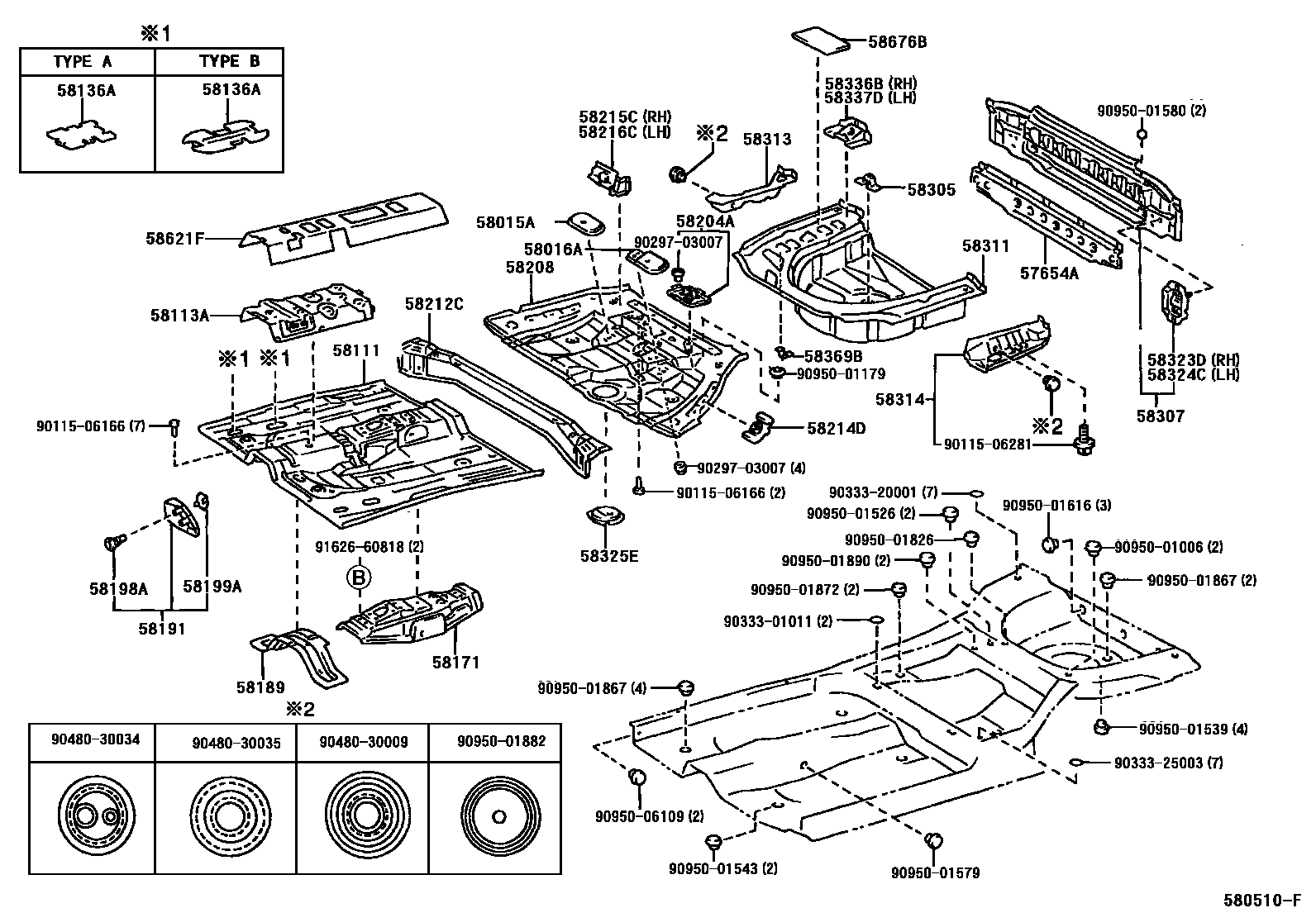

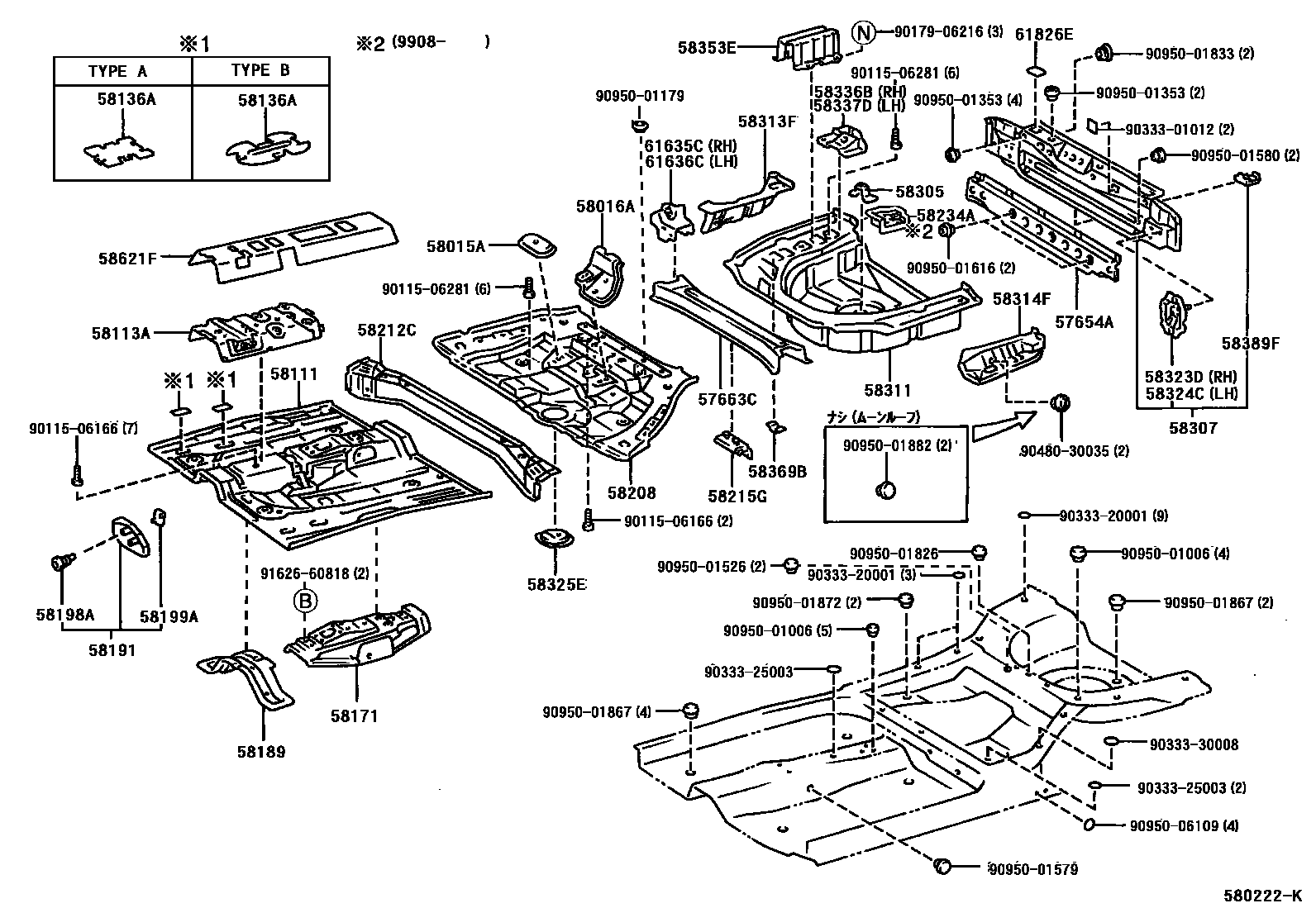

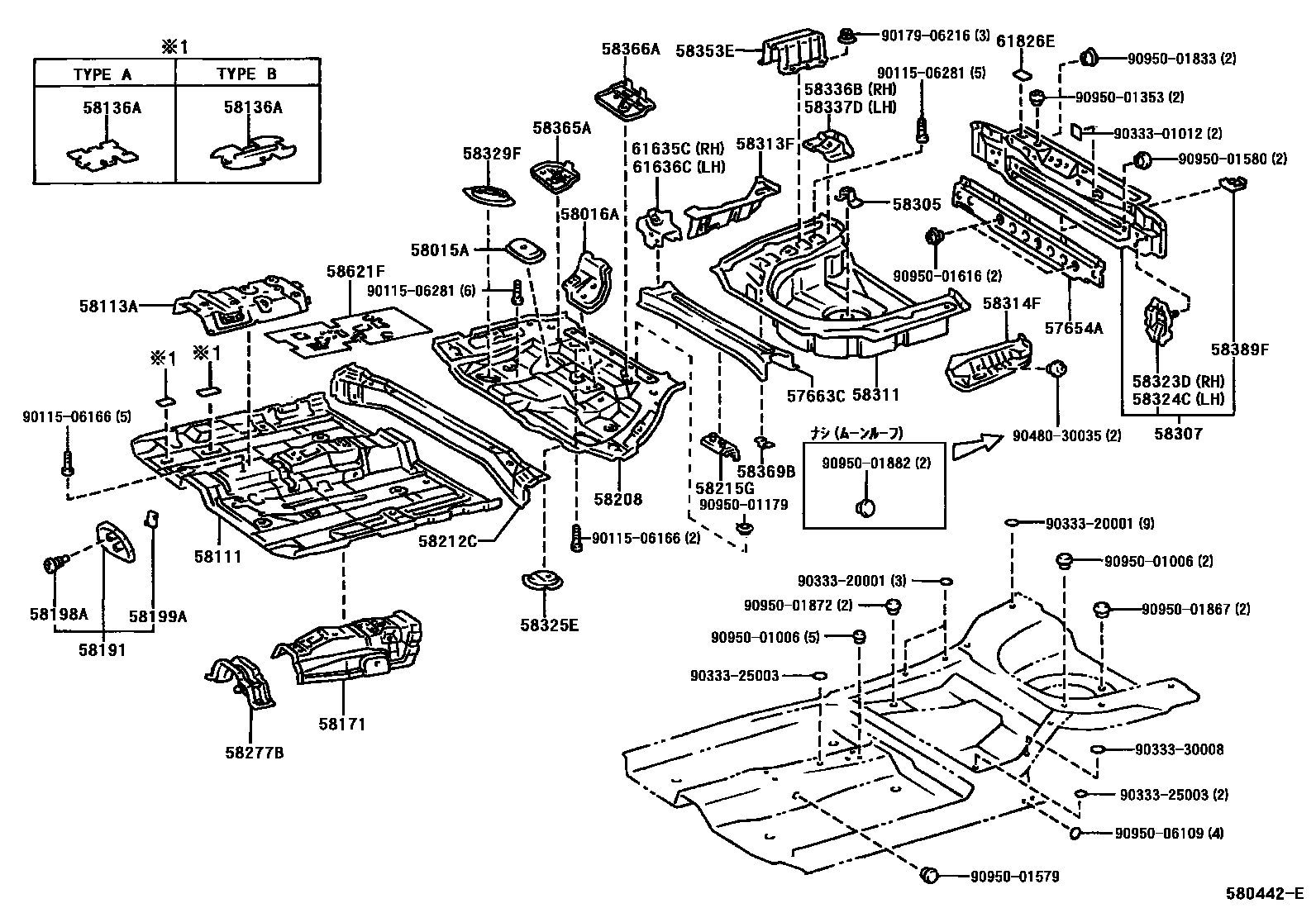

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57654A | Rear floor beam No. 3 | 57654-33010 |
| 57663C | Rear floor center cross member | 57663-33010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-33020 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-33030 · 58016-33050 |
| 58111 | front floor pan | 58111-33030 · 58111-33040 |
| 58113A | front floor center panel | 58013-33040 · 58013-33050 |
| 58136A | Front floor access hole cover | 58136-12020 · 58136-33010 |
| 58171 | Parking brake base reinforcement | 58107-33030 · 58107-33050 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33020 |
| 58191 | Front floor footrest | 58191-33030 |
| 58198A | No. 1 footrest clip | 58198-33010 |
| 58199A | Footrest clip No. 2 | 58199-33010 · 58199-33020 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-33020 |
| 58208 | central floor base | 58211-33060 · 58211-33080 · 58211-33081 · 58211-33090 · 58211-33091 · 58211-33120 |
| 58212C | Center floor front floor | 58212-33010 · 58212-33020 |
| 58214D | Center floor No. 1 left reinforcement | 58214-33020 |
| 58215C | Center floor No. 2 right reinforcement | 58203-33020 · 58215-33020 |
| 58215G | Rear seat No. 1 mounting bracket | 58215-33030 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33020 |
| 58234A | Exhaust pipe mounting bracket | 58234-41010 |
| 58277B | Drive shaft center bracket reinforcement | 58277-33010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-33070 · 58307-33090 |
| 58311 | rear floor pan | 58311-33030 · 58311-33040 |
| 58313 | Rear floor right panel | 58305-33020 |
| 58313F | Rear floor pan to right side apron extension | 58305-33030 |
| 58314 | rear floor left panel | 58314-33020 · 58314-33021 · 58314-33031 |
| 58314F | Rear floor pan to left side apron extension | 58314-33050 |
| 58323D | Rear bumper arm bracket reinforcement | 58323-33050 · 58323-AA010 |
| 58324C | Rear bumper arm left bracket reinforcement | 58324-33030 · 58324-AA010 |
| 58325E | Rear floor access hole cover | 58325-33020 · 58325-33030 |
| 58329F | Rear floor manhole cover No. 2 | 58329-33010 |
| 58336B | Rear floor pan reinforcement | 58336-33010 |
| 58337D | Rear floor bottom left reinforcement | 58337-33020 |
| 58353E | Rear floor right bracket | 58353-33010 |
| 58365A | Fuel tank right side bracket | 58365-33010 |
| 58366A | Fuel tank left bracket | 58366-33010 |
| 58369B | No. 3 fuel pipe bracket | 58369-32010 |
| 58389F | Rear lower cover bracket | 58389-30020 |
| 58621F | Center console silencer No. 1 | 58621-33030 · 58621-33040 |
| 58676B | Rear floor No. 1 right muffler pad | 58676-33010 |
| 61635C | Right wheel cover bracket | 61635-33020 |
| 61636C | Left side wheel cover bracket | 61636-33020 |
| 61826E | Noise Control Panel No. 3 | 61815-16030 |
