Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

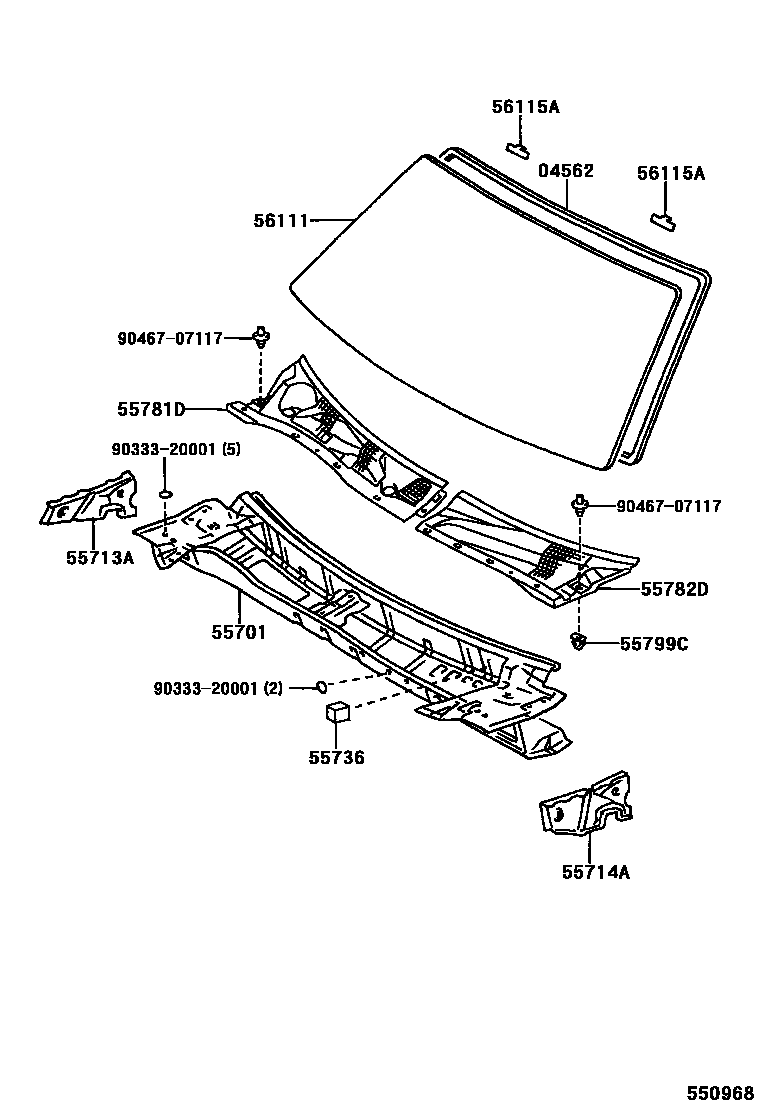

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55701 | Front apron sub-assembly | 55700-33100 |
| 55713A | Right front wall upper side panel | 55713-33020 |
| 55714A | Left front wall upper side panel | 55714-33020 |
| 55736 | Waterproof cover plate seal | 55736-33010 |
| 55781D | Ventilation grille on right front apron | 55781-33130 · 55781-33131 · 55781-33161 |
| 55782D | Ventilation grille on left front apron | 55782-33130 · 55782-33131 · 55782-33132 · 55782-33162 · 55782-33211 |
| 55799C | Ventilation grille clips on front apron | 55799-33010 |
| 56111 | windshield | 56101-0W020 · 56101-0W021 · 56101-33170 · 56101-33171 · 56101-33290 |
| 56115A | Windshield block No. 1 | 56115-30100 · 56115-33020 · 56115-33040 |
