Toyota CAMRY 后保险杠及附件 — Figure 5202

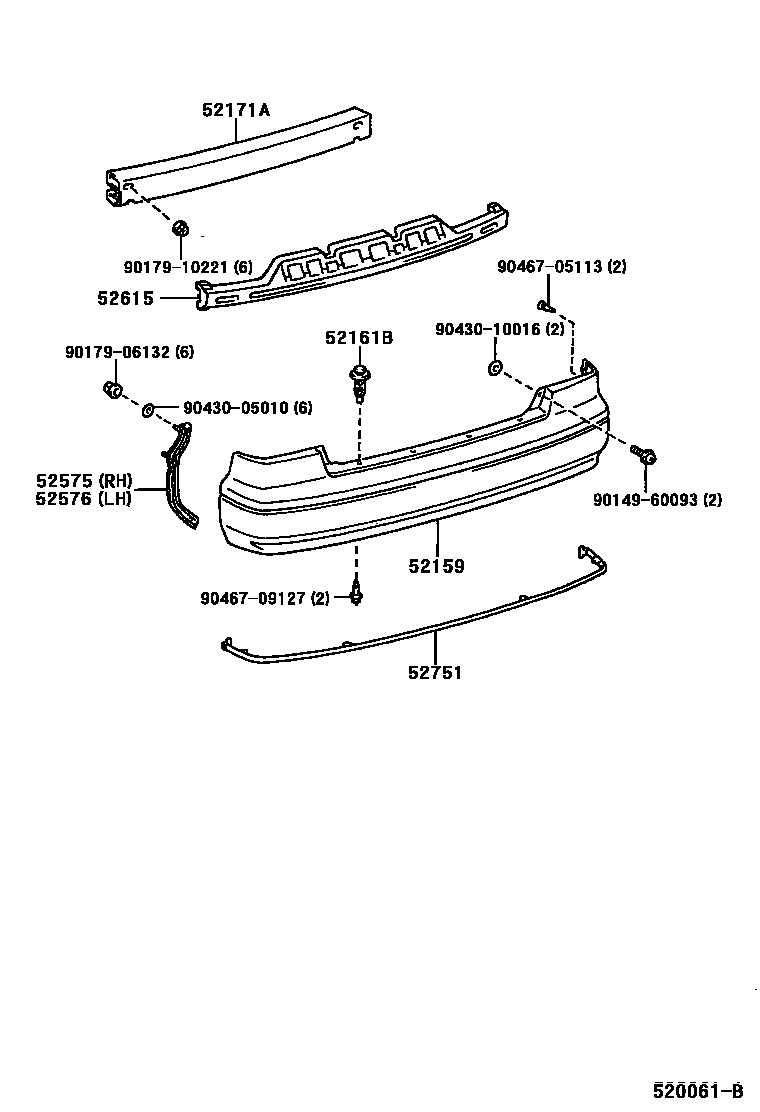

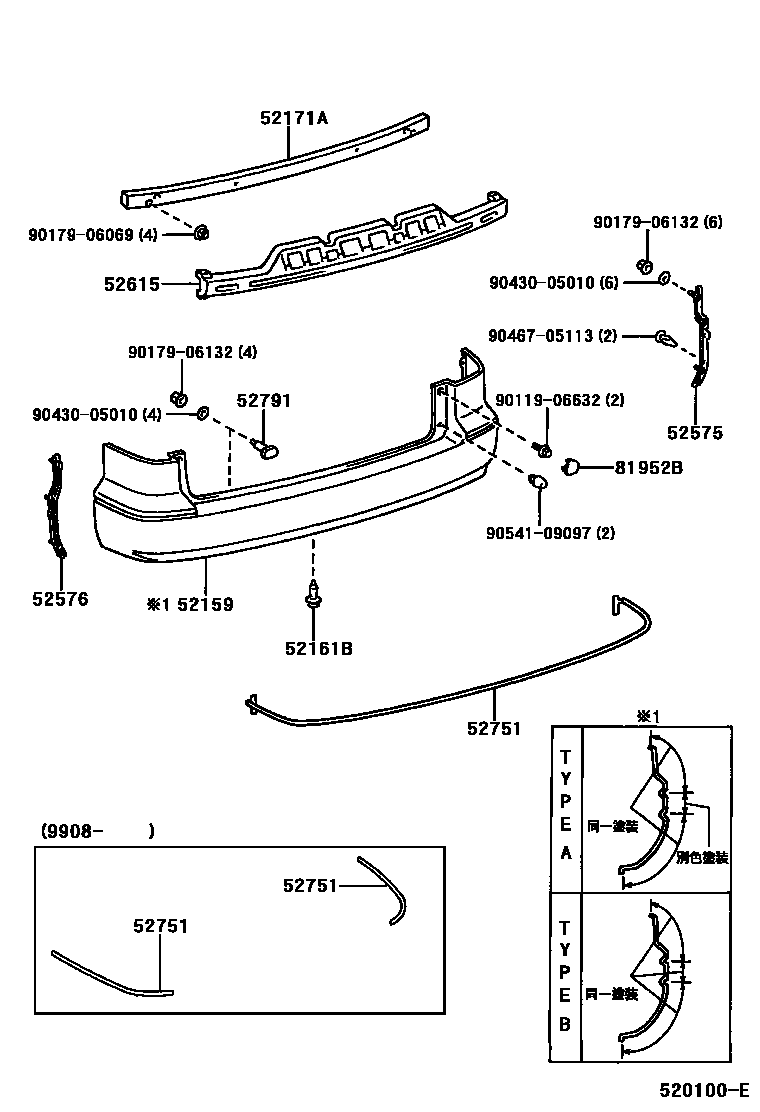

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161B | Rear bumper insert | 52161-16010 · 90467-09127 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-33030 · 52171-33050 · 52171-33060 |
| 52575 | Rear bumper right side fixing bracket | 52575-33050 · 52575-33060 · 52575-33080 · 52575-AA010 |
| 52576 | Rear bumper left side fixing bracket | 52576-33050 · 52576-33060 · 52576-33070 · 52576-AA010 |
| 52615 | Rear bumper energy absorber | 52615-33050 · 52615-33070 |
| 52751 | Rear bumper protection strip | 52751-33010 · 52751-33020 · 52751-33030 · 52751-33040 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12010 · 52791-33010 |
| 81952B | rear light cover | 81952-22010 |
