Toyota CAMRY 前保险杠及附件 — Figure 5201

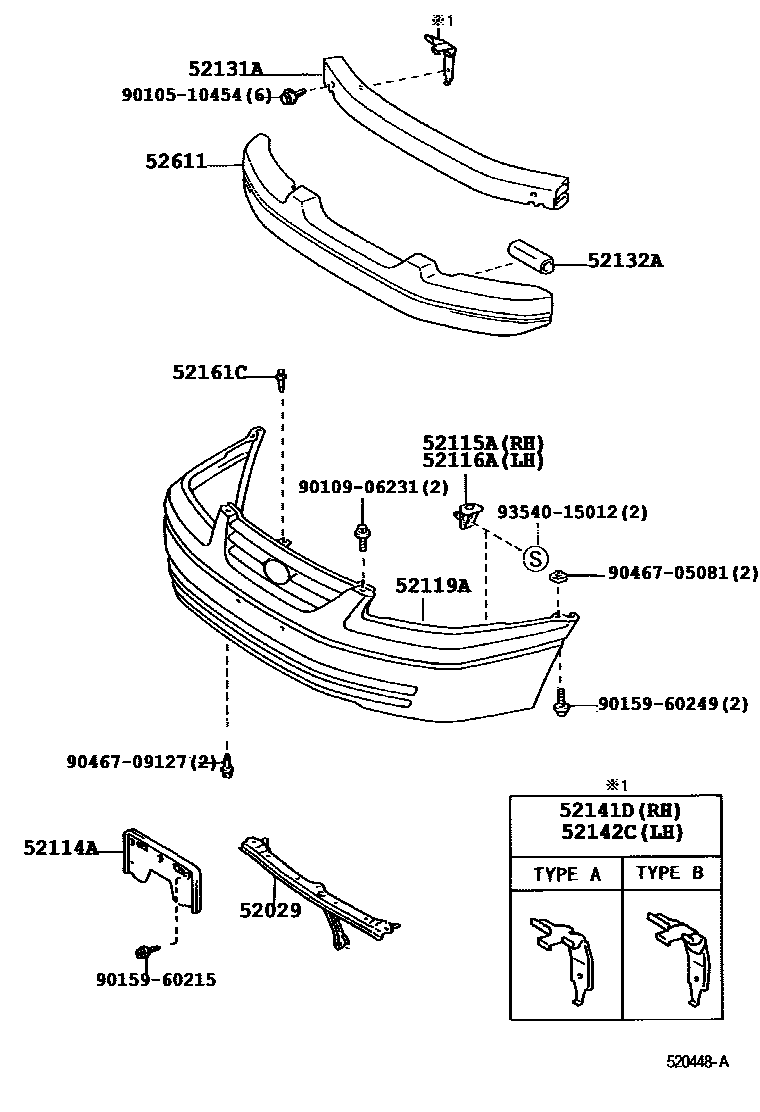

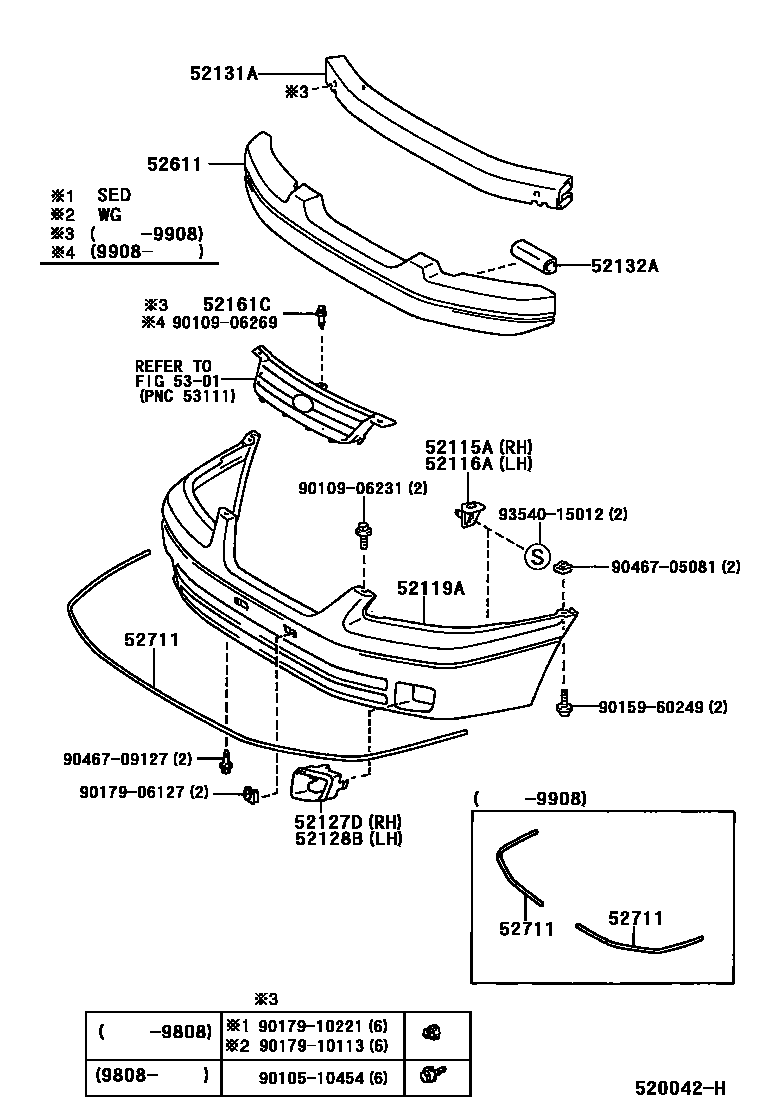

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-33050 |
| 52114A | Front bumper extension mounting bracket | 52114-33100 |
| 52115A | Front bumper right side bracket | 52115-33030 · 52115-33050 |
| 52116A | Front bumper left bracket | 52115-33030 · 52116-33040 |
| 52131A | Front bumper reinforcement | 52131-33020 · 52131-33050 · 52131-33080 |
| 52132A | No. 2 front bumper reinforcement | 52132-33020 |
| 52141D | Front bumper right side stay | 52081-33010 |
| 52142C | Front bumper left stay | 52082-33010 |
| 52161C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-33040 · 52611-33060 · 52611-33110 |
| 52711 | Front bumper protection strip | 52711-33040 · 52711-33070 |
