Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

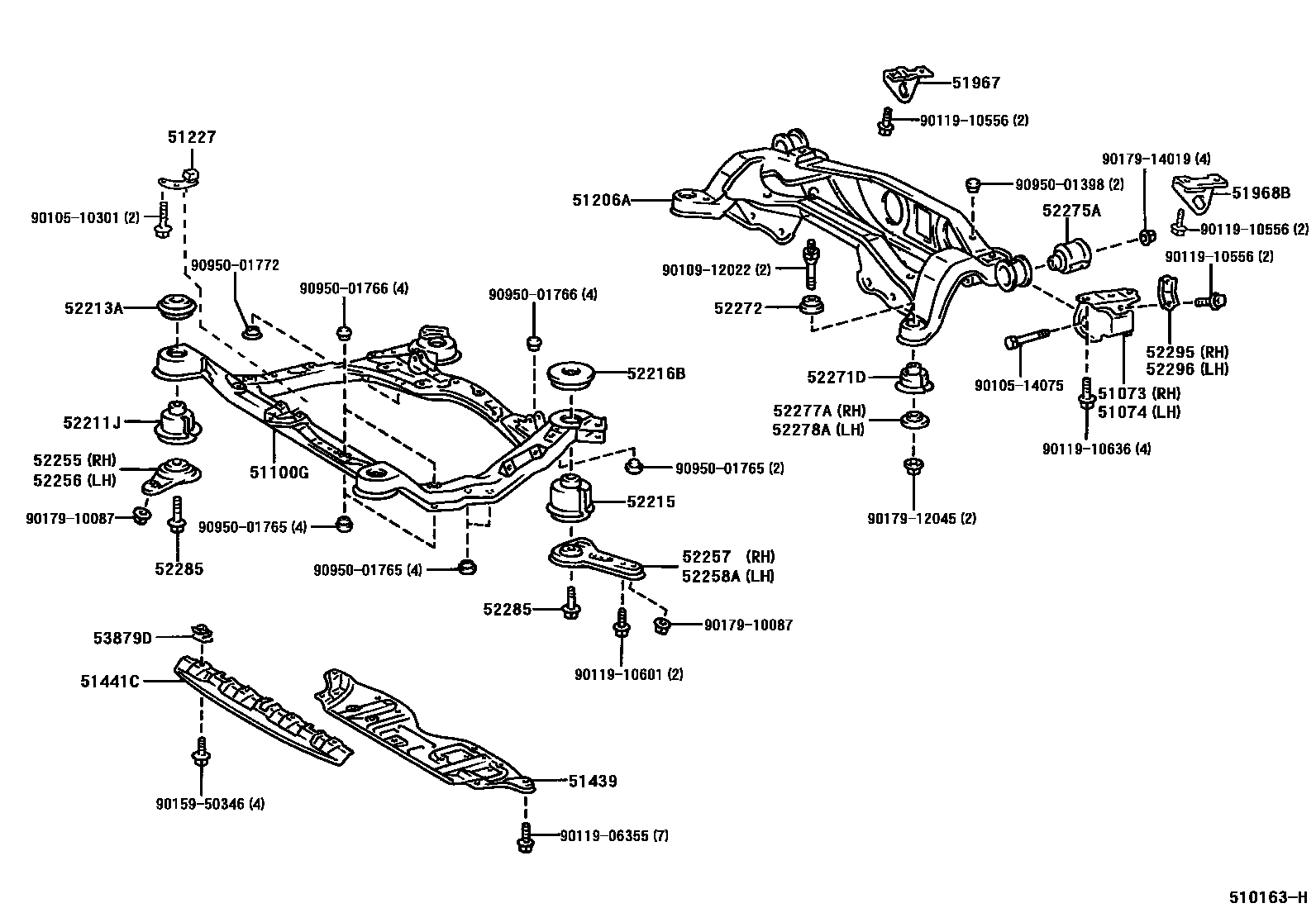

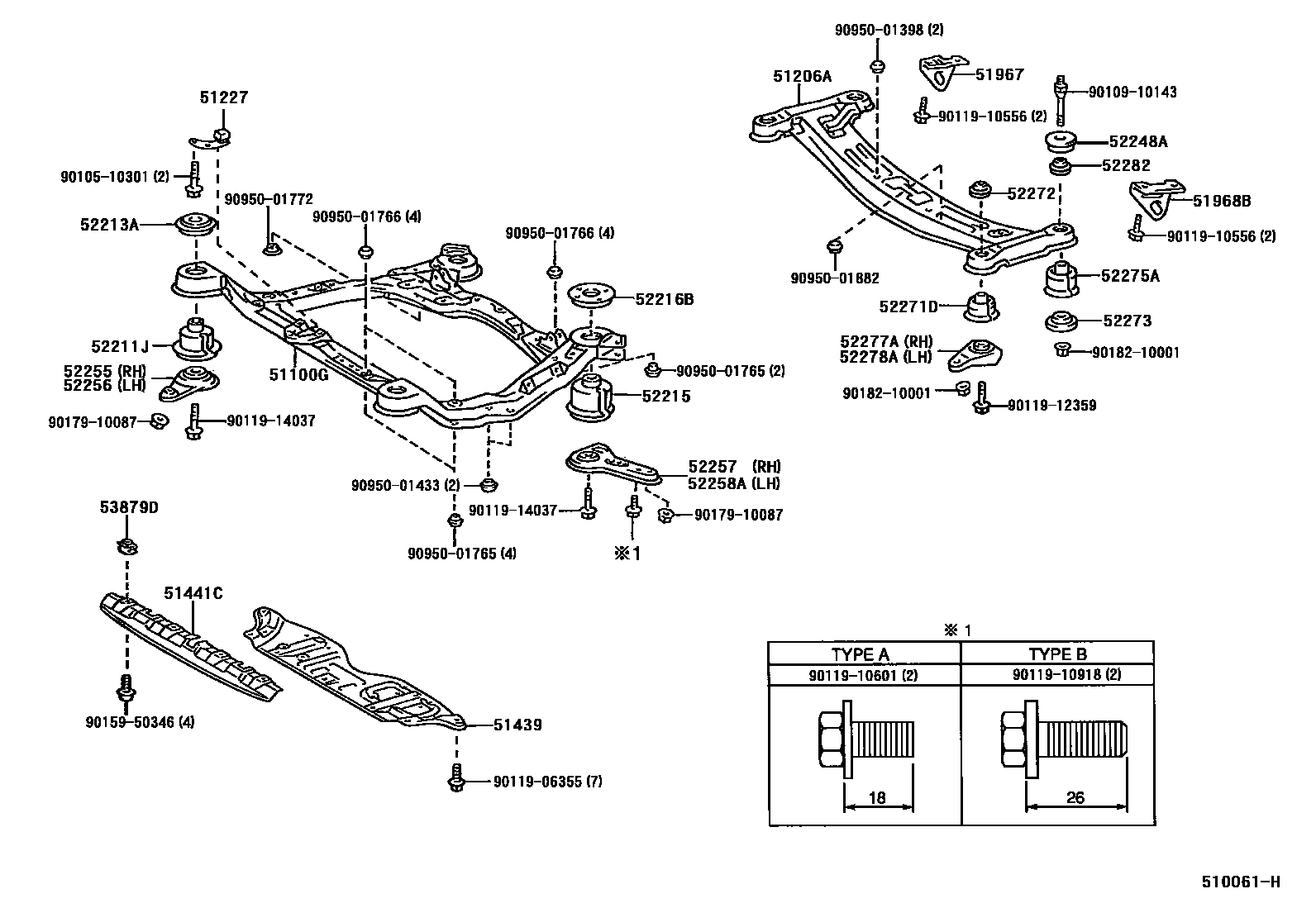

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-32010 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-32010 |
| 51100G | Front frame assembly | 51100-33020 · 51100-33030 · 51100-33040 · 51100-33050 · 51100-48010 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33020 · 51206-33021 · 51206-33022 · 51206-33030 · 51206-33040 · 51206-33050 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-33030 · 51227-33060 |
| 51439 | Engine rear side baffle | 51439-33010 · 51439-33030 |
| 51441C | Engine right bottom cover | 51441-33030 |
| 51967 | Rear transport hook | 51968-33010 |
| 51968B | Left rear transport hook | 51968-33010 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-33010 · 52211-33050 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-33010 · 52213-33050 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-33010 · 52215-33050 · 52215-33060 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-33020 · 52216-33050 |
| 52248A | Rear body installation collar | 52248-33010 |
| 52255 | Right front suspension cross member front bracket | 52255-33020 · 52255-33030 · 52255-33040 |
| 52256 | Left front suspension cross member front bracket | 52256-33020 · 52256-33030 · 52256-33040 |
| 52257 | Right front suspension cross member rear bracket | 51023-33010 · 51023-33020 · 51023-33030 |
| 52258A | Left front suspension cross member rear bracket | 51024-33010 · 51024-33020 · 51024-33030 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-32050 · 52271-33020 |
| 52272 | Rear suspension cross member upper block | 52272-32010 · 52272-33010 |
| 52273 | Rear suspension cross member lower block | 52273-32010 · 52273-33010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-32050 · 52275-33030 · 52275-33040 |
| 52277A | Right rear suspension cross member lower block fixing piece | 52203-33010 · 52203-33020 · 52277-32010 |
| 52278A | Left rear suspension cross member lower block fixing piece | 52204-33010 · 52204-33020 · 52277-32010 |
| 52282 | Differential support beam upper stop | 52282-33030 |
| 52285 | No. 1 differential support beam mounting bolts | 52285-33010 |
| 52295 | Right rear suspension cross member bracket | 52295-32010 · 52295-33010 |
| 52296 | Left rear suspension cross member bracket | 52296-32010 · 52296-33010 |
| 53879D | Front fender lining fixing parts | 53879-20020 |
