Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

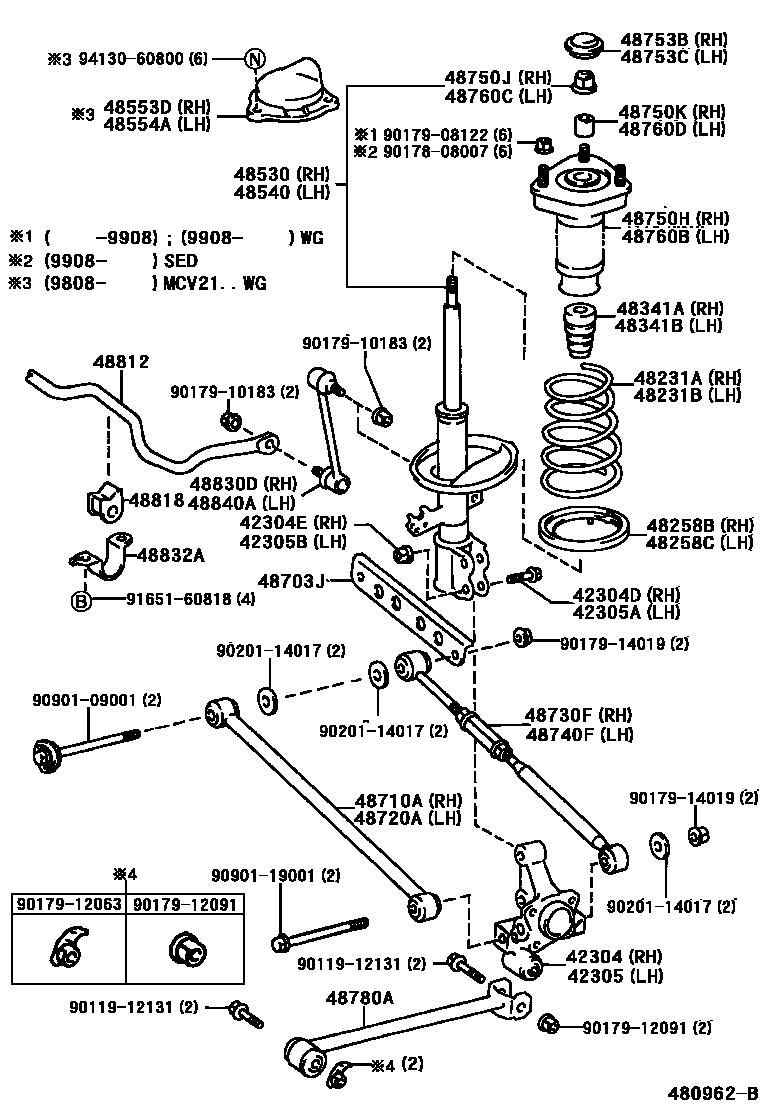

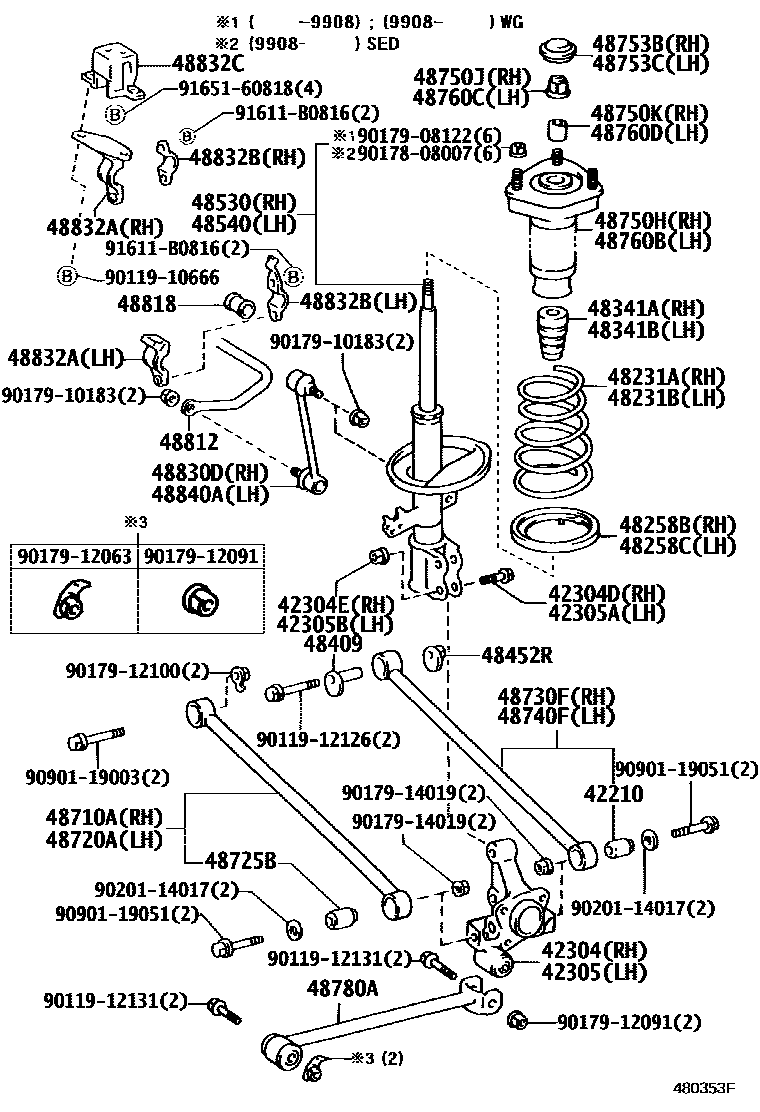

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42210 | Lower steel ball bushing assembly | 42210-14010 |
| 42304 | Rear axle right bracket sub-assembly | 42304-20090 · 42304-33020 |
| 42304D | Bolt (for rear axle right bracket) | 90105-15001 · 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15001 · 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-20090 · 42305-33020 |
| 42305A | Bolt (for left rear axle bracket) | 90105-15001 · 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15001 · 90179-15001 |
| 48231A | Right rear coil spring | 48231-33200 · 48231-33210 · 48231-33350 · 48231-33360 · 48231-33370 · 48231-33400 · 48231-33410 · 48231-33450 · 48231-33460 · 48231-33470 · 48231-33620 · 48231-AA060 |
| 48231B | Left rear coil spring | 48231-33200 · 48231-33210 · 48231-33350 · 48231-33360 · 48231-33370 · 48231-33400 · 48231-33410 · 48231-33450 · 48231-33460 · 48231-33470 · 48231-33620 · 48231-AA060 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-32020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-32020 |
| 48341A | No. 1 right rear spring buffer block | 48341-32052 · 48341-32053 · 48341-32071 · 48341-33010 |
| 48341B | No. 1 left rear spring buffer block | 48341-32052 · 48341-32053 · 48341-32071 · 48341-33010 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-32030 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32030 |
| 48530 | Right rear shock absorber assembly | 48530-39356 · 48530-39395 · 48530-39435 · 48530-39445 · 48530-39455 · 48530-39495 · 48530-39545 · 48530-39565 · 48530-39585 |
| 48540 | Left rear shock absorber assembly | 48540-39236 · 48540-39275 · 48540-39295 · 48540-39305 · 48540-39315 · 48540-39325 · 48540-39335 · 48540-39345 · 48540-39365 |
| 48553D | Right rear shock absorber cover | 48553-33030 |
| 48554A | Left rear shock absorber cover | 48554-33030 |
| 48703J | Washer No. 2 (for rear suspension arm) | 48715-33020 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-32080 · 48710-33050 · 48710-33060 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-32080 · 48710-33050 · 48710-33060 |
| 48725B | Rear suspension No. 1 arm bushing | 42210-14010 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-32090 · 48730-33050 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-32090 · 48740-33060 |
| 48750H | Right rear suspension support assembly | 48750-33020 · 48750-33040 · 48750-33041 · 48750-33050 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90177-14001 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-33010 |
| 48753C | Left rear suspension support cover No. 1 | 48753-33010 |
| 48760B | Left rear suspension support assembly | 48760-33020 · 48760-33040 · 48760-33041 · 48760-33050 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90177-14001 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-32060 · 48780-33010 · 48780-33020 |
| 48812 | rear stabilizer bar | 48812-33090 · 48812-33100 · 48812-33150 · 48812-33160 |
| 48818 | Rear stabilizer bar bushing | 48818-20290 · 48818-32090 · 48818-33040 · 48818-33050 |
| 48830D | Right rear stabilizer bar link assembly | 48830-32040 · 48830-33010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-32050 · 48832-32070 · 48832-33020 |
| 48832B | Rear stabilizer bar bracket No. 2 | 48832-32080 · 48832-33030 |
| 48832C | Rear stabilizer bar No. 3 bracket | 48832-32090 |
| 48840A | Left rear stabilizer bar link assembly | 48830-32040 · 48830-33010 |
