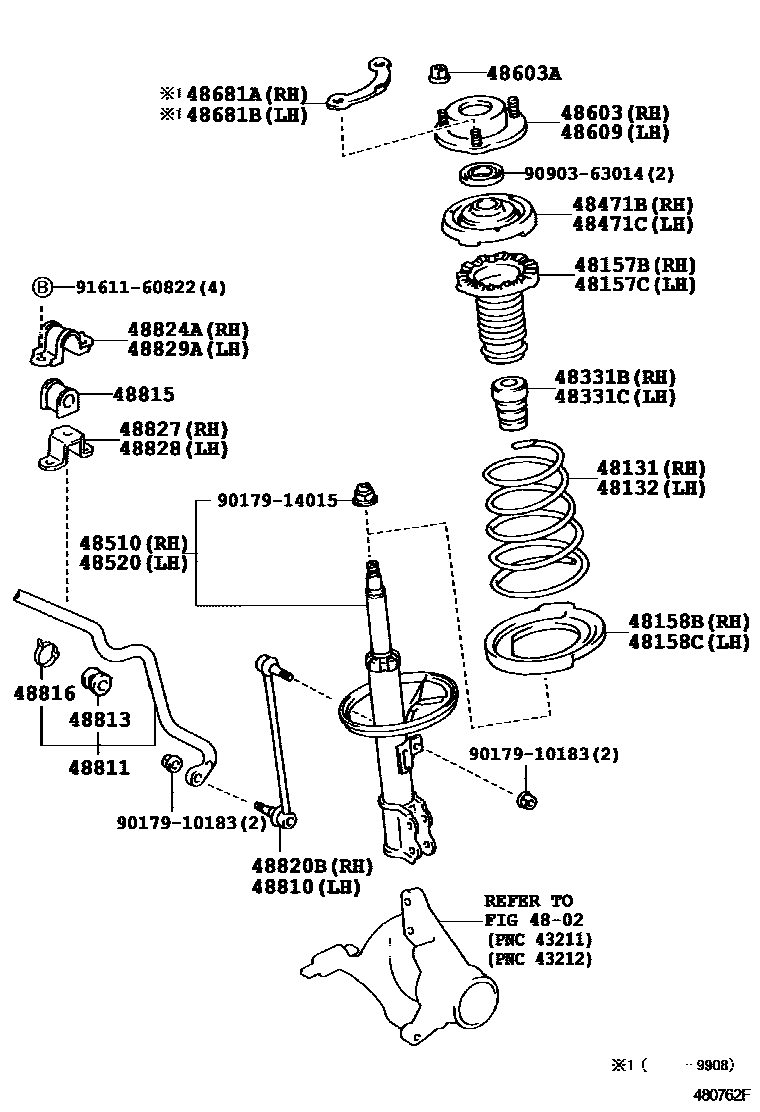

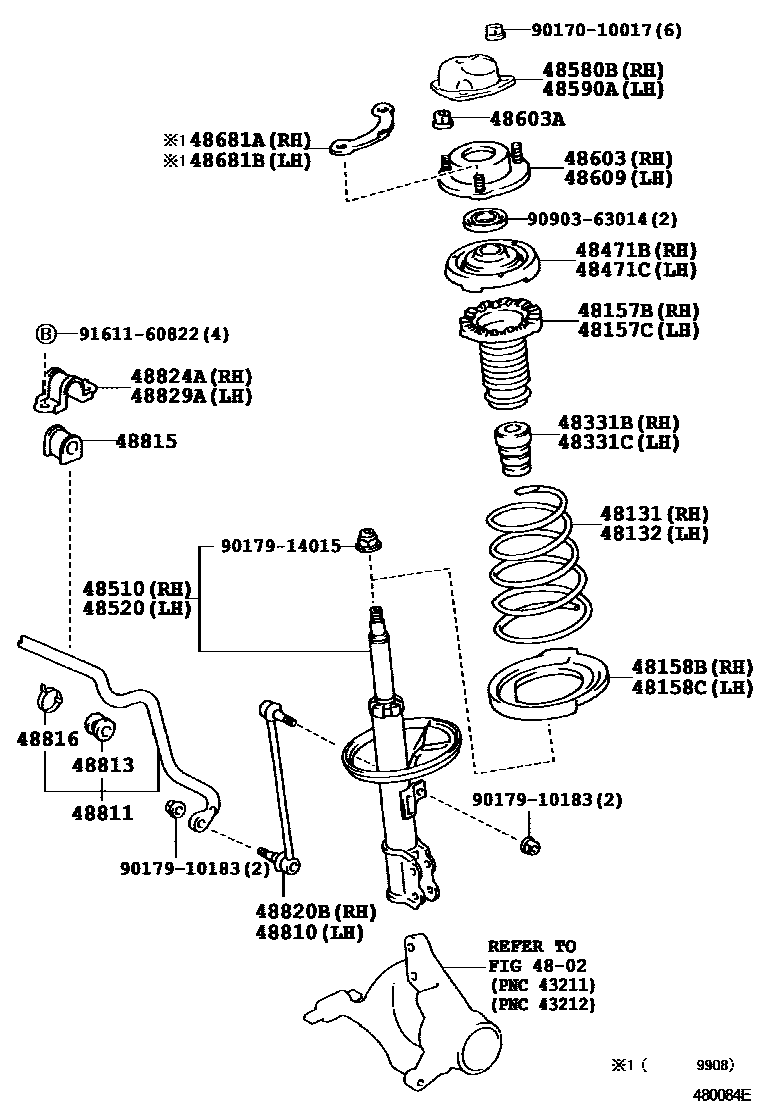

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-33750 · 48131-33770 · 48131-33890 · 48131-3T010 · 48131-3T030 · 48131-3T040 · 48131-3T050 · 48131-3T070 · 48131-3T100 · 48131-3T110 · 48131-3T140 · 48131-3T170 · 48131-3T180 · 48131-3T190 · 48131-3T200 |
| 48132 | Left front coil spring | 48131-33750 · 48131-33770 · 48131-33890 · 48131-3T010 · 48131-3T030 · 48131-3T040 · 48131-3T050 · 48131-3T070 · 48131-3T100 · 48131-3T110 · 48131-3T140 · 48131-3T170 · 48131-3T180 · 48131-3T190 · 48131-3T200 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-33030 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-33030 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-33020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-33020 |
| 48331B | Right front spring buffer block | 48331-33020 |
| 48331C | Left front spring buffer block | 48331-33020 |
| 48471B | Front coil spring upper right seat | 48471-41010 |
| 48471C | Front coil spring upper left seat | 48471-41010 |
| 48510 | Right front shock absorber assembly | 48510-39486 · 48510-39515 · 48510-39615 · 48510-39635 · 48510-39645 · 48510-39745 |
| 48520 | Left front shock absorber assembly | 48520-39166 · 48520-39195 · 48520-39255 · 48520-39275 · 48520-39285 · 48520-39315 |
| 48580B | Right front shock absorber cover assembly | 48580-33030 · 48580-33031 |
| 48590A | Left front shock absorber cover assembly | 48590-33020 · 48590-33021 |
| 48603 | Right front suspension bearing sub-assembly | 48603-06011 · 48603-33010 · 48603-33021 |
| 48603A | Nut (for front suspension mount) | 90178-10008 · 90178-10017 · 90178-10018 · 90179-10095 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06061 · 48609-33110 · 48609-33121 |
| 48681A | Right front suspension mount pad | 48681-33010 |
| 48681B | Left front suspension mount pad | 48681-33010 |
| 48810 | Left front stabilizer bar link assembly | 48810-33010 |
| 48811 | front stabilizer bar | 48811-07010 · 48811-33080 · 48811-33100 · 48811-33110 |
| 48813 | Front stabilizer bar stop | 48813-33020 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-33050 · 48815-33060 · 48815-33070 |
| 48816 | Front stabilizer bar block clip | 48816-33010 |
| 48820B | Right front stabilizer bar link assembly | 48820-33020 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-33020 · 48824-33030 |
| 48827 | Right front stabilizer bar bracket No. 2 | 48827-33010 |
| 48828 | Left front stabilizer bar bracket No. 2 | 48827-33010 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-33020 · 48824-33030 |
