Toyota CAMRY 制动配管和卡箍 — Figure 4708

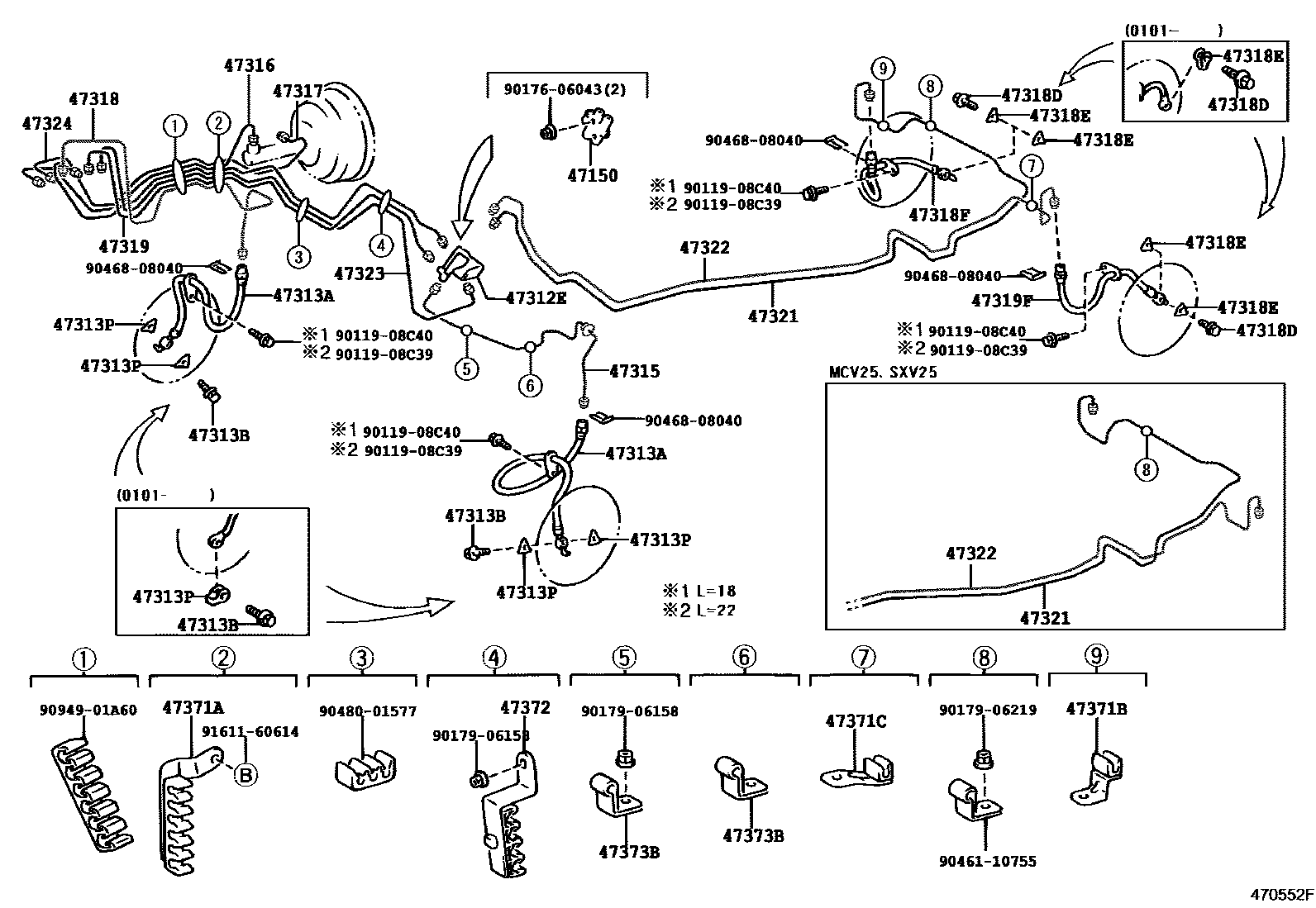

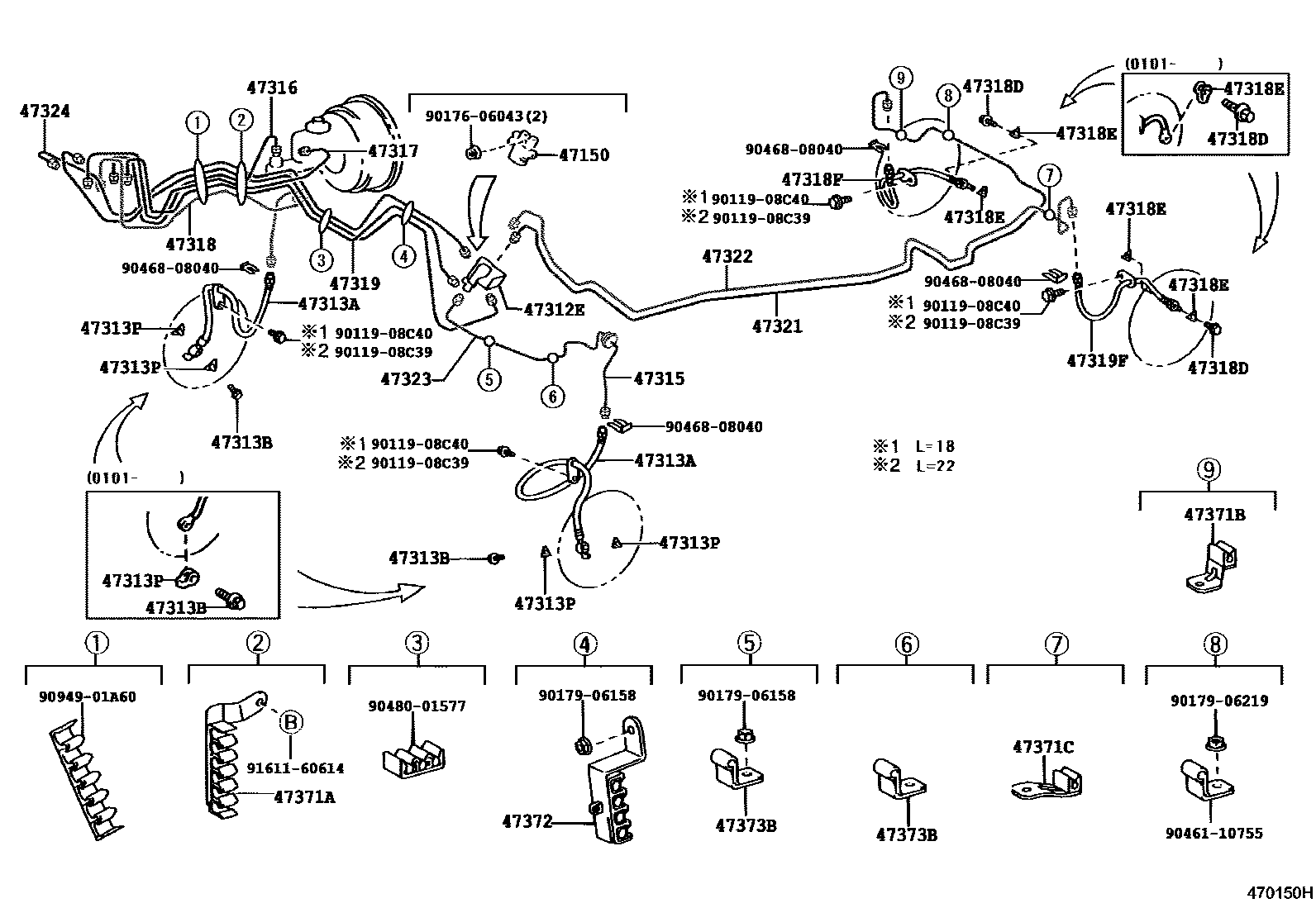

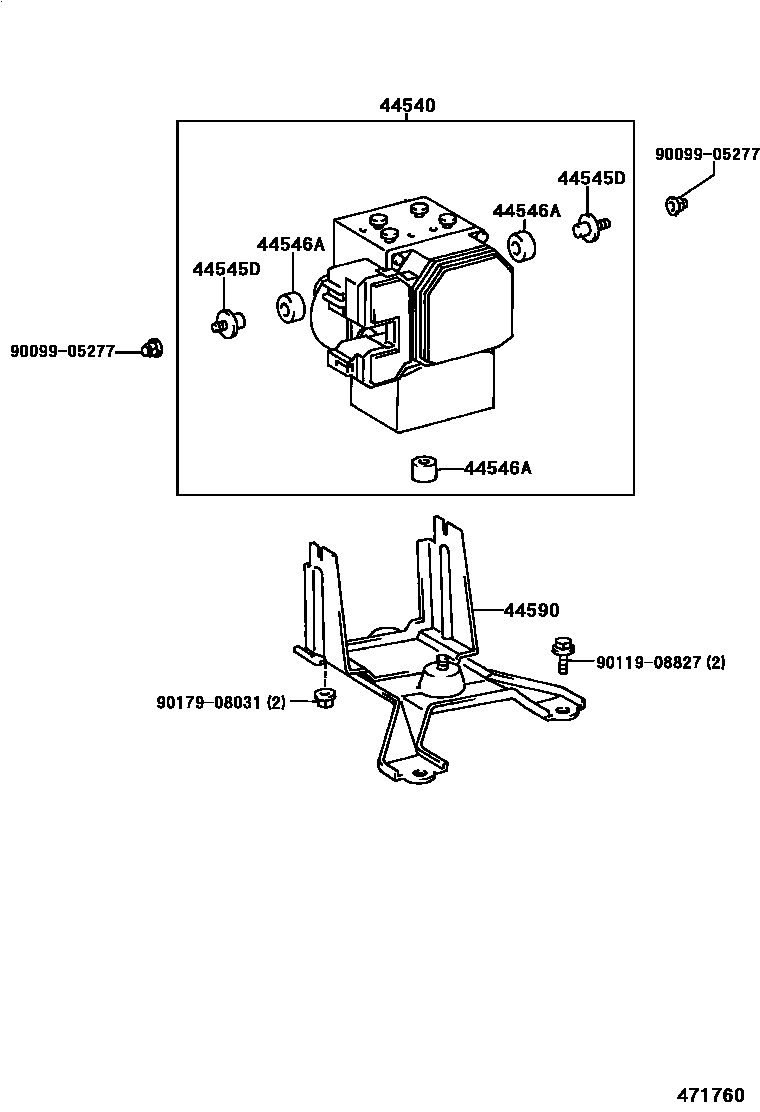

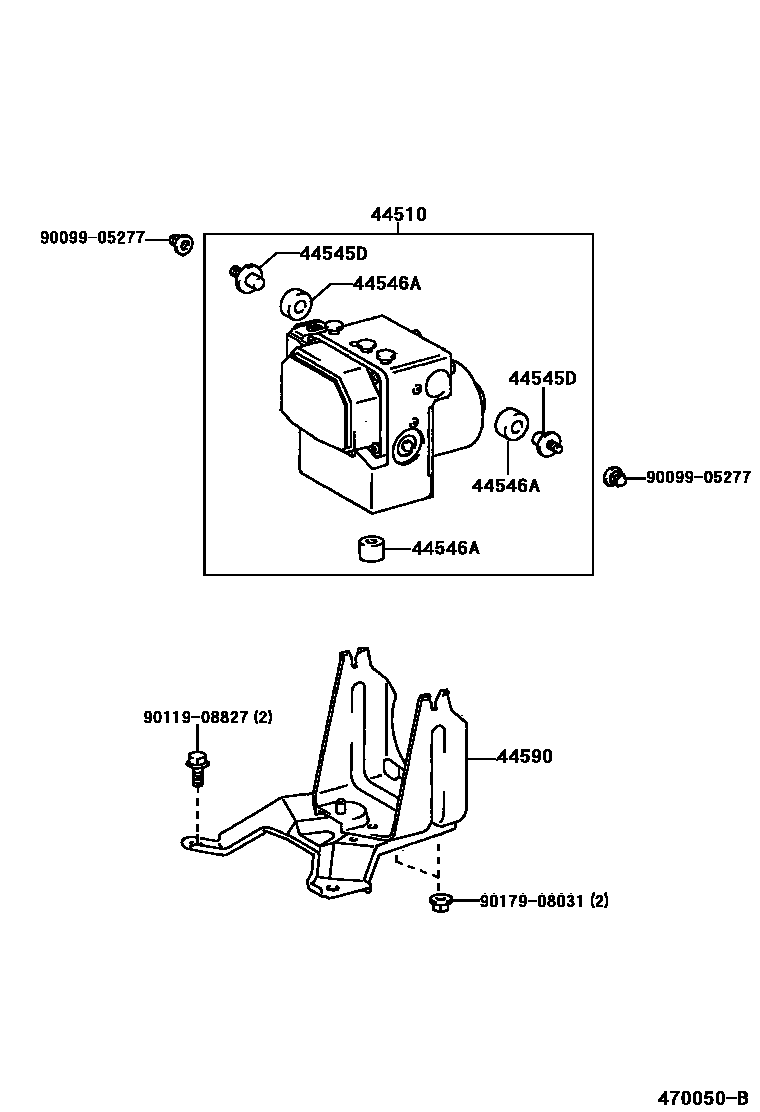

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33020 · 44510-33070 |
| 44540 | ABS and traction actuator assembly | 44050-33030 · 44540-33010 |
| 44545D | Brake actuator bolt mount | 44545-42020 |
| 44546A | Brake actuator bolt cushion | 44546-42020 |
| 44590 | Brake actuator bracket assembly | 44590-33030 |
| 47150 | Proportional valve assembly | 47150-33020 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12038 |
| 47313A | No. 1 front flexible hose | 90947-02875 · 90947-02876 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-30010 · 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-33100 |
| 47316 | No. 6 front brake pipe | 47316-33080 · 47316-33090 |
| 47317 | No. 7 front brake pipe | 47317-33070 · 47317-33080 |
| 47318 | No. 8 front brake pipe | 47318-33040 · 47318-33050 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-30010 · 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02877 · 90947-02970 |
| 47319 | No. 9 front brake pipe | 47319-33060 · 47319-33070 |
| 47319F | Left rear flexible hose | 90947-02878 · 90947-02971 |
| 47321 | No. 1 rear brake pipe | 47321-33020 · 47321-33060 · 47321-33120 |
| 47322 | No. 2 rear brake pipe | 47322-33020 · 47322-33060 |
| 47323 | No. 3 rear brake pipe | 47323-33070 · 47323-33080 |
| 47324 | No. 4 rear brake pipe | 47324-33070 · 47324-33080 |
| 47371A | No. 1 brake pipe clamp | 47371-33100 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47372 | No. 2 brake pipe clamp | 47371-33260 |
| 47373B | No. 3 brake pipe clamp | 90461-10755 |
