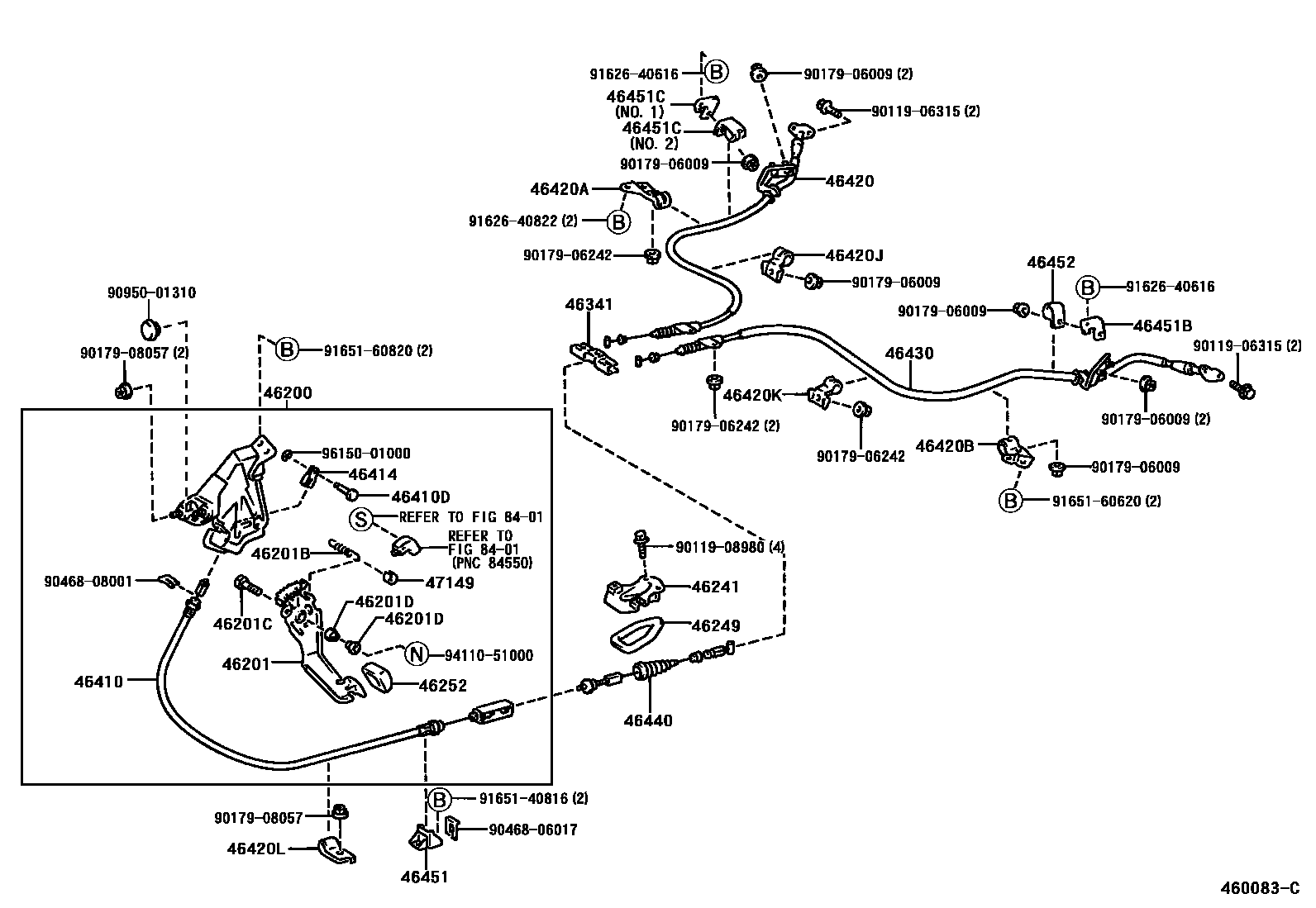

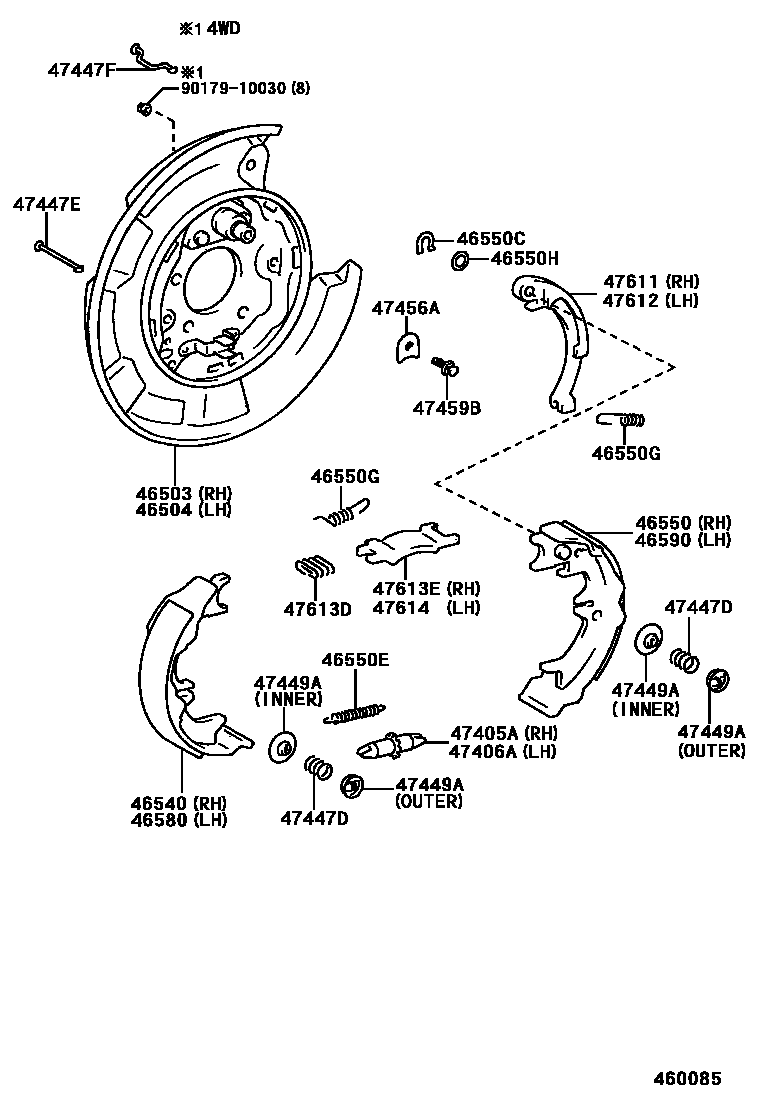

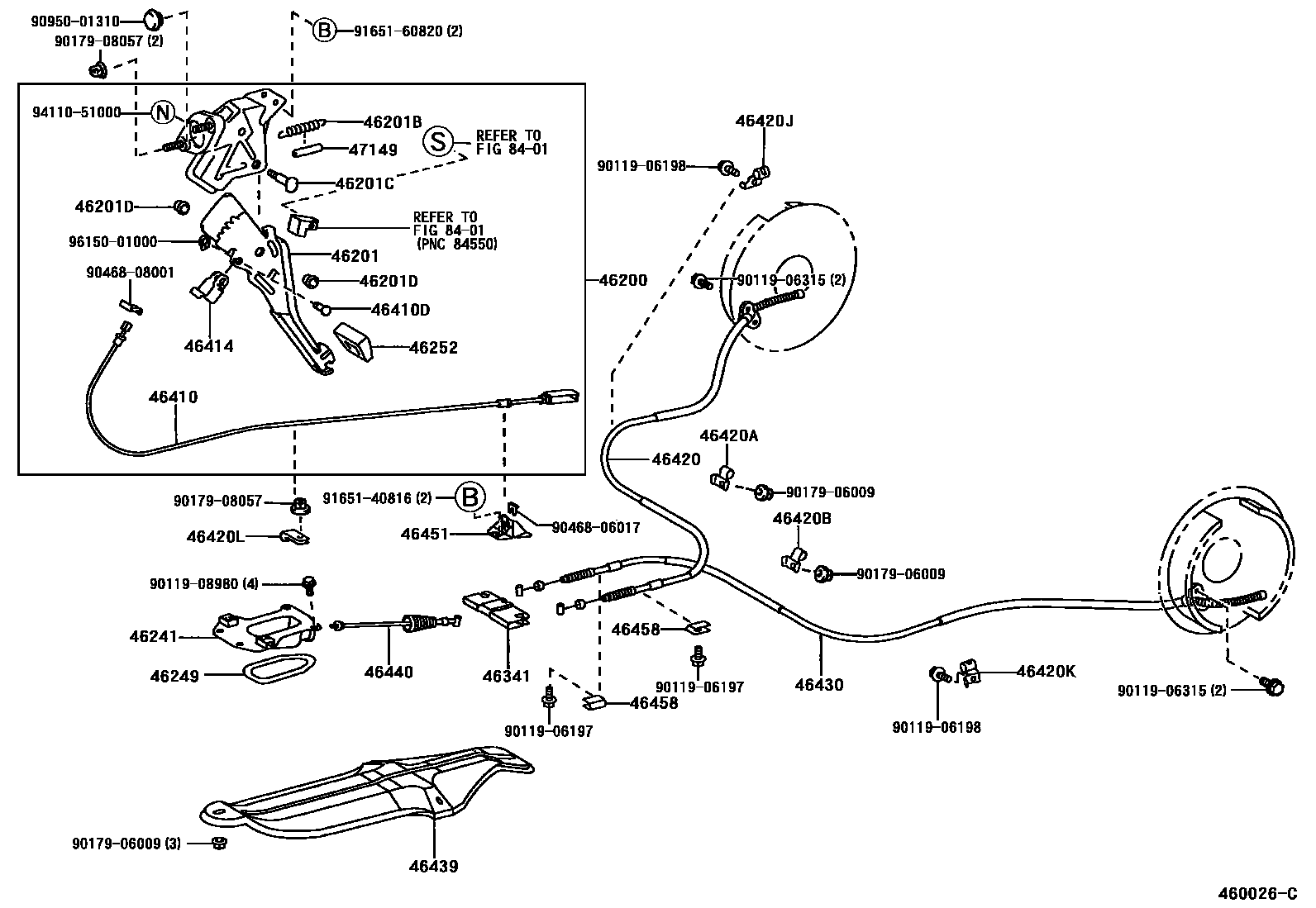

Toyota CAMRY Parking Brake & Cable — Figure 4601
Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 3 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46200-33030 · 46200-33040 |
| 46201 | Parking brake pedal sub-assembly | 46210-33100 |
| 46201B | Tension spring | 90506-19004 |
| 46201C | pedal shaft | 90109-10033 |
| 46201D | Bushing (for parking brake pedal) | 90386-16022 |
| 46241 | Parking brake lever dust cover | 46241-33040 |
| 46249 | Parking brake hole cover | 46249-32020 |
| 46252 | Parking brake pedal pad | 46252-33010 |
| 46341 | Parking brake balancer | 46341-33010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-33090 · 46410-33100 |
| 46410D | Pin (for front parking brake cable) | 90249-10200 |
| 46414 | Parking cable U-shaped clip | 46414-33010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-33050 · 46420-33070 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01663 · 90949-01B26 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01B08 · 90949-01B27 |
| 46420J | Clamp No. 3 (for parking brake cable) | 90949-01A66 · 90949-01B28 |
| 46420K | Clamp No. 4 (for parking brake cable) | 90949-01664 · 90949-01A67 |
| 46420L | Clamp No. 5 (for parking brake cable) | 90949-01A68 |
| 46430 | Parking brake No. 3 cable assembly | 46430-33050 · 46430-33070 |
| 46439 | Parking brake cable insulation pad | 46439-33010 |
| 46440 | Parking brake No. 4 cable assembly | 46440-33020 |
| 46451 | cable bracket | 46451-33040 |
| 46451B | Parking brake cable bracket | 46451-33050 |
| 46451C | Parking brake cable bracket No. 1 | 46451-33060 · 46451-33070 |
| 46452 | Parking brake cable bracket No. 2 | 46452-33010 |
| 46458 | Cable fixings | 46458-28010 |
| 46503 | Right parking brake pad sub-assembly | 46503-20010 · 46503-33020 |
| 46504 | Left parking brake pad sub-assembly | 46504-20010 · 46504-33020 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-20060 · 46540-20070 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-20060 · 46550-33020 |
| 46550C | C-shaped washer (for parking brake shoe) | 90213-07018 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90506-12010 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90507-16009 |
| 46550H | Spacer (for parking brake shoe) | 90564-09184 · 90564-09185 · 90564-09186 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-20060 · 46540-20070 |
| 46590 | No. 2 left parking brake shoe assembly | 46590-20060 · 46590-33020 |
| 47149 | return spring shock absorber | 47149-22040 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-30040 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-30040 |
| 47447D | Compression spring (for parking brake shoe limit) | 90501-14049 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-20030 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 47447-22020 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 47449-30030 · 47449-32010 |
| 47456A | Brake shoe guide (for parking brake) | 47456-33010 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47611-20030 |
| 47612 | Left parking brake shoe lever | 47612-20030 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90504-14002 |
| 47613E | Right parking brake shoe push rod | 47613-20040 |
| 47614 | Left parking brake shoe push rod | 47614-20010 |
