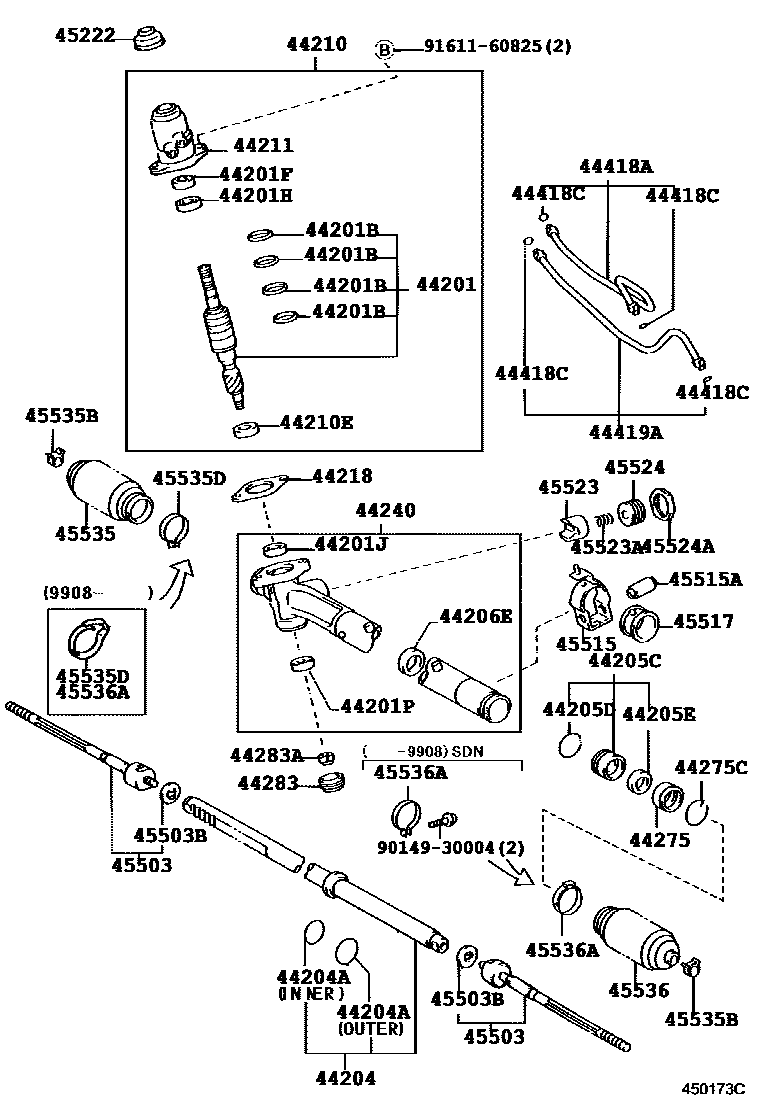

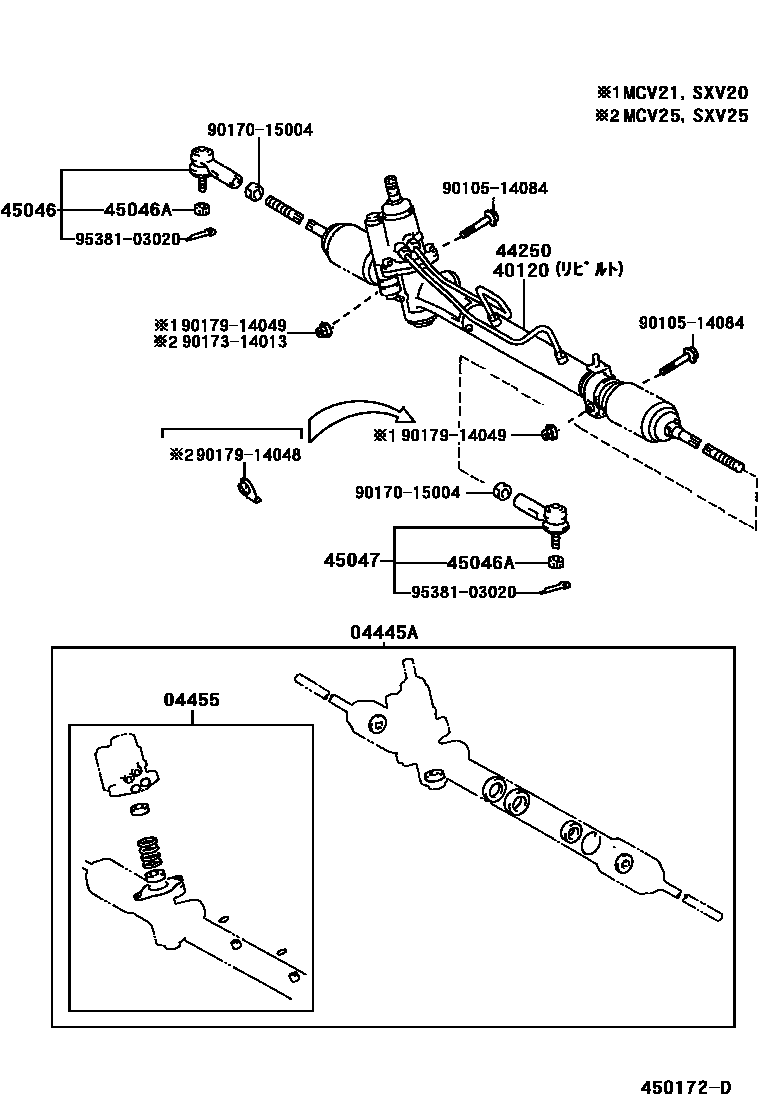

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-33070 · 04445-33080 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-33020 |
| 40120 | Refurbished power steering assembly | 40120-33171 · 40120-33181 · 40120-33271 · 40120-33281 · 40120-33300 · 40120-33310 |
| 44201 | Power steering control valve sub-assembly | 44201-33120 · 44201-33150 · 44201-33160 |
| 44201B | Spacer (for power steering control valve) | 90560-33003 |
| 44201F | Oil seal (for power steering control valve) | 90080-31016 · 90311-19010 |
| 44201H | Bearing (for upper power steering control valve) | 90363-19007 · 90365-19001 |
| 44201J | Bearing (for central power steering control valve) | 90364-25014 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12013 |
| 44204 | Power steering rack sub-assembly | 44204-33090 · 44204-33110 |
| 44204A | Ring (for steering rack piston) | 90080-56013 · 90301-36008 · 90562-40003 |
| 44205C | Power steering rack bushing sub-assembly | 44205-33010 |
| 44205D | O-ring (for power steering rack bushing) | 90301-36009 |
| 44205E | Oil seal (for power steering rack bushing) | 90080-31010 · 90311-27001 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90080-31038 · 90311-27006 |
| 44210 | Power steering control valve assembly | 44210-33090 · 44210-33091 · 44210-33151 · 44210-33160 · 44210-33161 |
| 44210E | Oil seal (for power steering control valve) | 90311-26003 |
| 44211 | control valve housing | 44211-33020 · 44211-33021 |
| 44218 | valve housing gasket | 44218-12020 |
| 44240 | Power steering rack housing assembly | 44240-33021 · 44240-33050 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-33171 · 44250-33180 · 44250-33181 · 44250-33270 · 44250-33271 · 44250-33280 · 44250-33281 · 44250-33300 · 44250-33310 |
| 44275 | Cylinder end stop | 44275-33020 |
| 44275C | Coil (for cylinder end stop) | 90580-18002 |
| 44283 | Rack housing cover | 44283-33010 |
| 44283A | Nut (for rack housing cover) | 90179-10048 |
| 44418A | Right steering pressure oil pipe | 44418-33050 · 44418-33060 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-03001 |
| 44419A | Left steering pressure oil pipe | 44419-33050 · 44419-33060 |
| 45046 | Right tie rod end sub-assembly | 45046-29255 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-29255 |
| 45222 | Steering gear dust cover | 45222-33010 |
| 45503 | Steering rack end sub-assembly | 45503-39135 |
| 45503B | Jaw washer (for steering rack end) | 90214-14002 |
| 45515 | No. 2 steering rack housing bracket | 45515-33011 |
| 45515A | Steering rack housing bracket collar | 90386-15004 |
| 45517 | No. 2 steering rack housing seal | 45517-33021 |
| 45523 | Rack guide block (for steering gear) | 45504-06010 · 45504-33010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-26075 |
| 45524 | Steering rack guide block spring cover | 45524-33010 · 45524-33020 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36002 |
| 45535 | No. 1 steering rack dust cover | 45535-06020 · 45535-33020 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19017 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-58006 · 90461-08688 |
| 45536 | No. 2 steering rack dust cover | 45535-06020 · 45535-33020 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-58006 · 90461-08688 |
