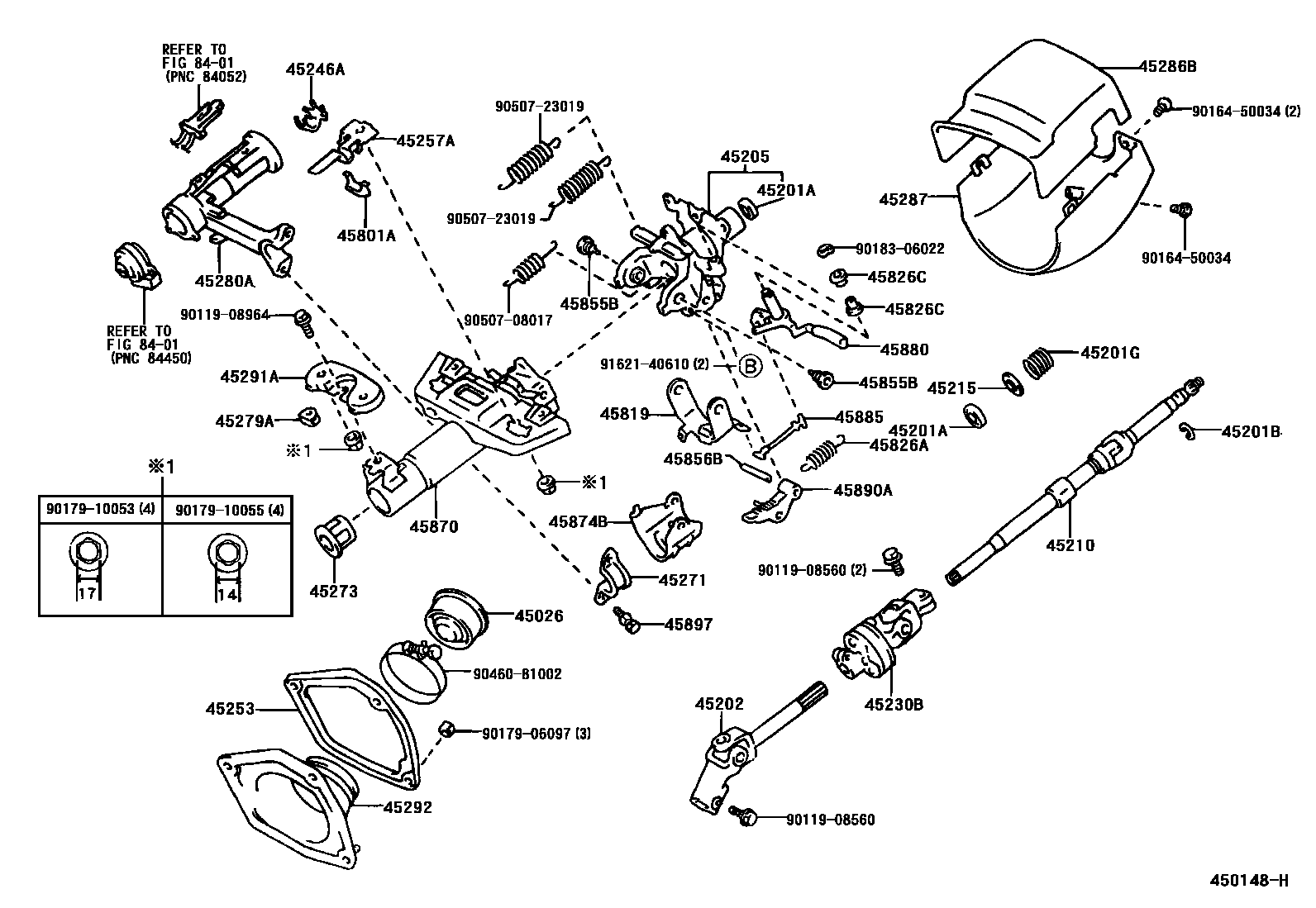

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-33030 · 45026-33031 |
| 45201A | Bearings (for steering spindle) | 90363-18005 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45202 | Steering intermediate shaft sub-assembly | 45202-33020 · 45202-33050 |
| 45205 | Steering column tube sub-assembly | 45205-33120 |
| 45210 | Steering spindle assembly | 45210-33050 · 45210-33060 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45230B | Steering shaft universal joint assembly | 45230-33040 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-12110 |
| 45253 | Steering column hole cover | 45253-33040 · 45253-33050 |
| 45257A | Steering column energy absorbing sheet | 45257-12070 |
| 45271 | Clamp on steering column | 45271-12060 |
| 45273 | Steering spindle bushing | 45273-33030 |
| 45279A | Steering column tube lower connecting piece | 45279-33030 |
| 45280A | Steering column upper bracket assembly | 45280-33080 |
| 45291A | Steering column tube bracket | 45291-33020 |
| 45292 | Dust-proof sealing ring under spindle | 45292-33040 · 45292-33050 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-12010 |
| 45819 | Tilt adjustment lever retaining ring | 45819-33010 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90905-07010 |
| 45826C | Bushing (for steering tilt adjustment lever) | 90389-08120 |
| 45855B | No. 1 tilt-adjustable steering shaft | 45855-26010 |
| 45856B | No. 2 tilt-adjustable steering shaft | 45856-26010 · 45856-26020 · 45856-26030 |
| 45870 | Steering column tube assembly | 45870-33200 |
| 45874B | No. 1 steering column guard | 45874-33030 |
| 45880 | Steering tilt adjustment lever assembly | 45880-33010 · 45880-33011 |
| 45885 | Tilt adjustment lever linkage | 45885-35010 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-26010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
