Toyota CAMRY Front Axle Hub — Figure 4303

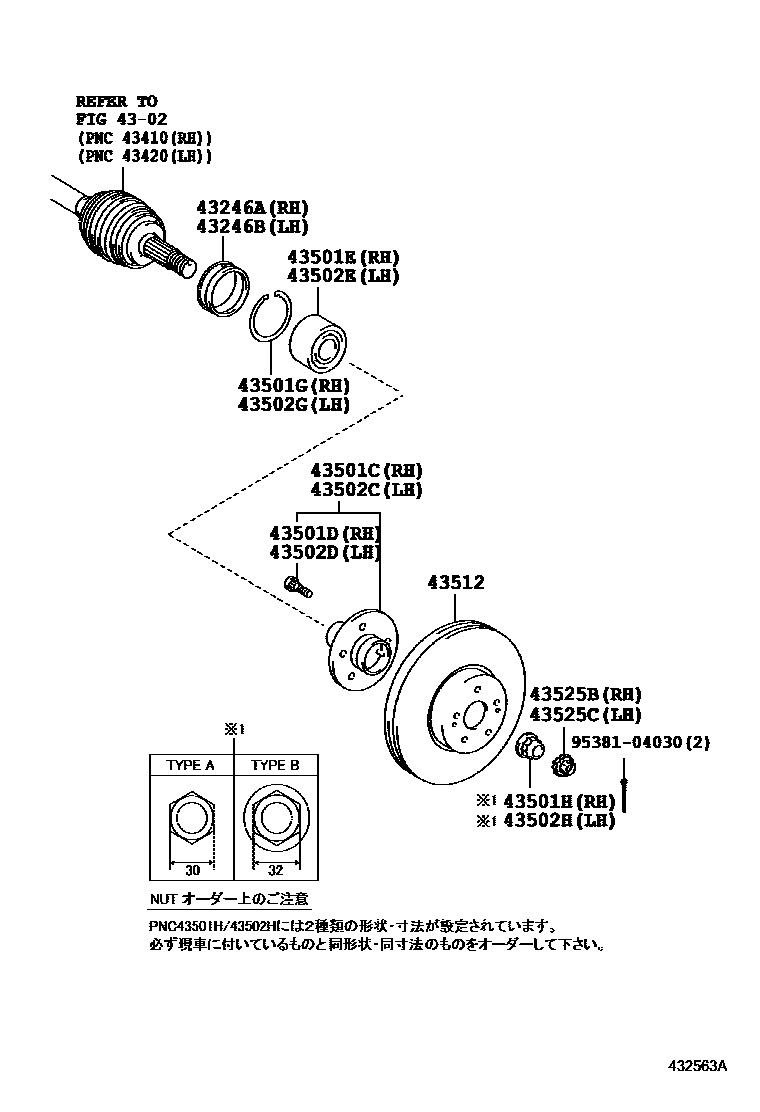

Toyota CAMRY EPC diagram 4303, Front Axle Hub, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43246A | No. 1 right front wheel bearing dust cover | 43246-32020 |
| 43246B | No. 1 left front wheel bearing dust cover | 43246-32020 |
| 43501C | Right front axle hub sub-assembly | 43502-32070 · 43502-33010 · 43502-33030 |
| 43501D | Hub bolt (for right front axle) | 90942-02049 |
| 43501E | Bearing (for right front axle hub) | 90369-43008 |
| 43501G | Hole snap ring (for right front axle hub) | 90521-88001 |
| 43501H | Nut (for front axle right half shaft) | 90179-22001 · 90179-22022 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-32070 · 43502-33010 · 43502-33030 |
| 43502D | Hub bolt (for left front axle) | 90942-02049 |
| 43502E | Bearing (for left front axle hub) | 90369-43008 |
| 43502G | Hole snap ring (for left front axle hub) | 90521-88001 |
| 43502H | Nut (for front axle left half shaft) | 90179-22001 · 90179-22022 |
| 43512 | front brake disc | 43512-33020 · 43512-33040 · 43512-33041 · 43512-33042 |
| 43525B | Right front wheel adjustment lock cover | 43525-20030 |
| 43525C | Left front wheel adjustment lock cover | 43525-20030 |
