Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102

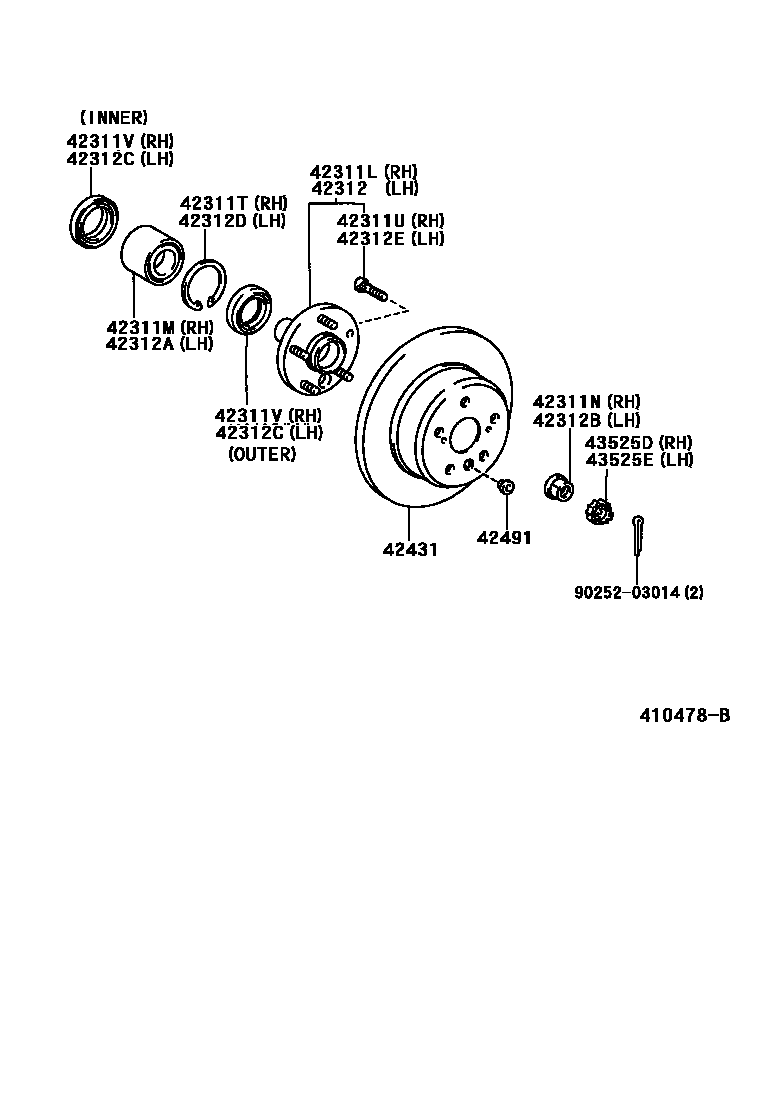

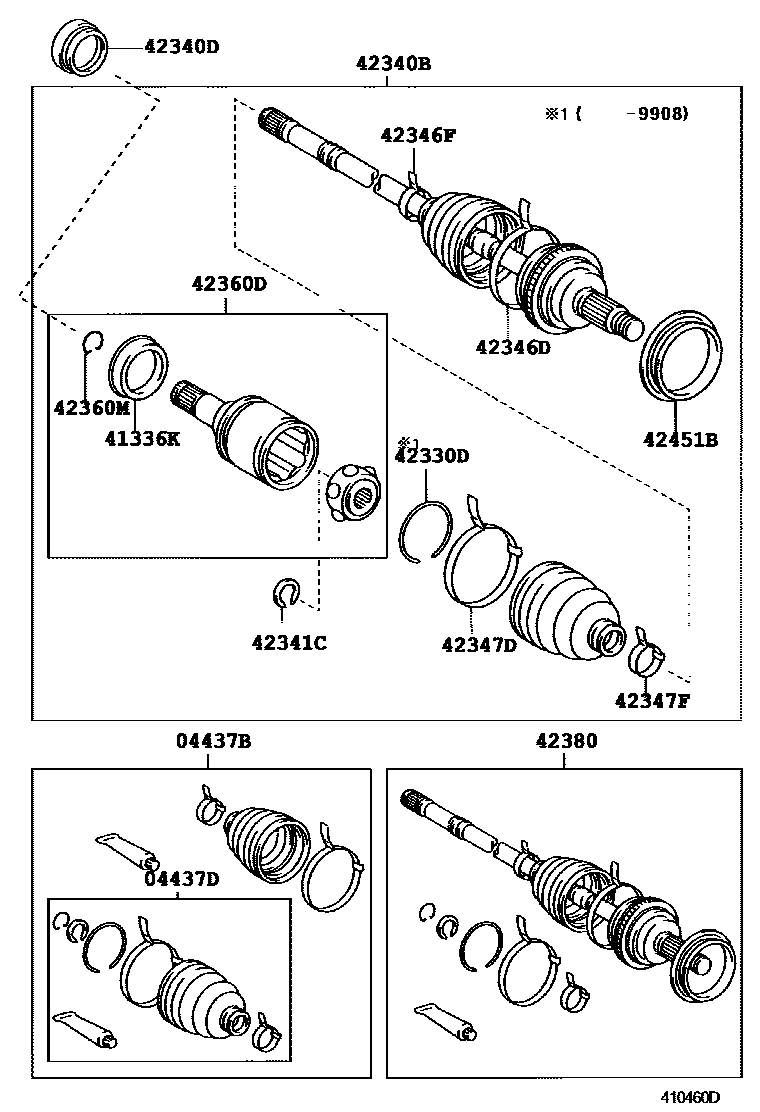

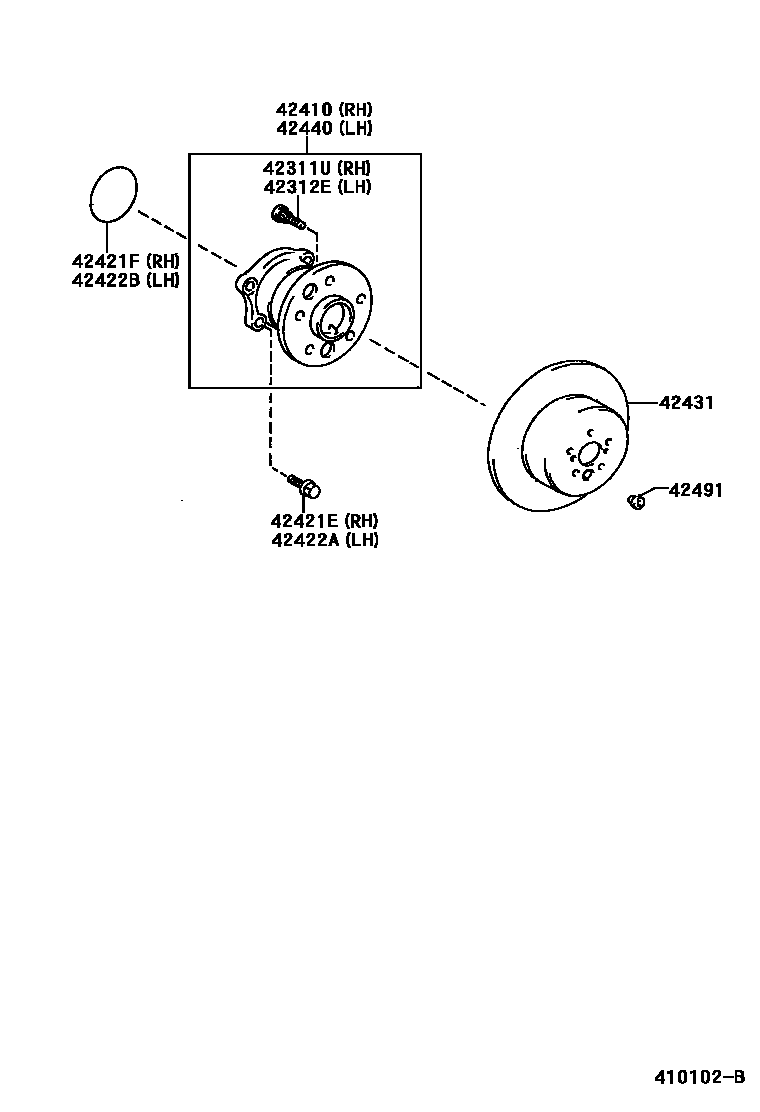

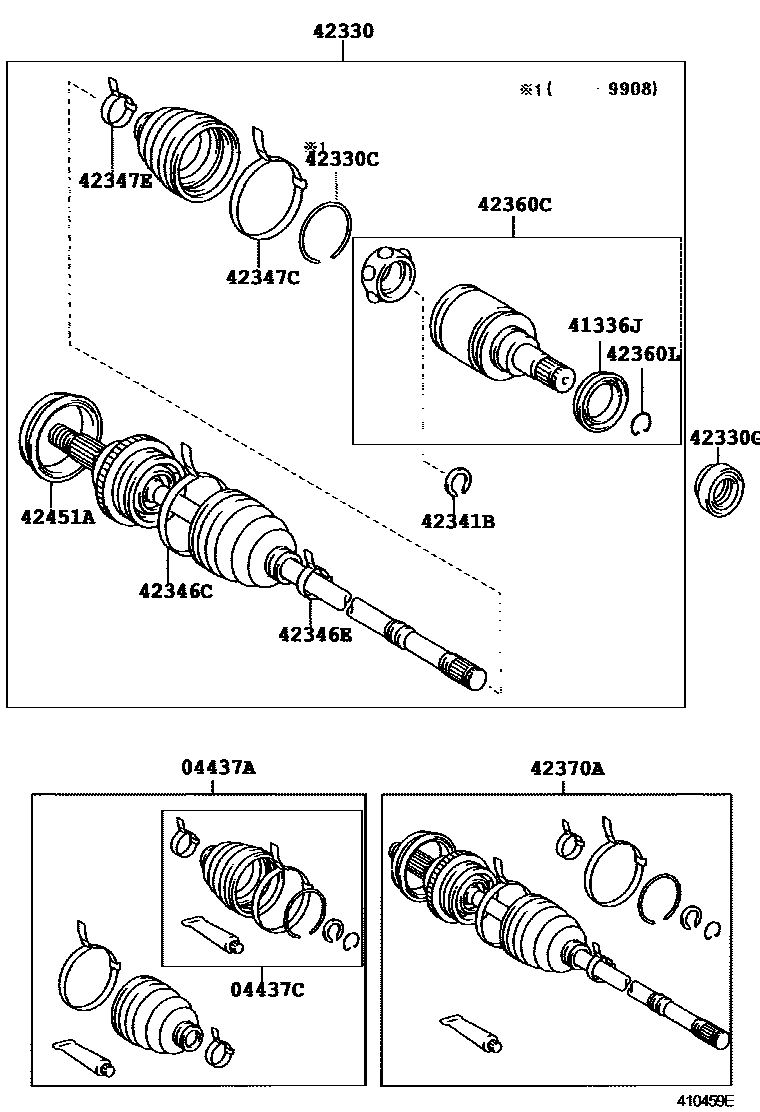

Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04437A | Right rear drive shaft dust boot assembly | 04437-21020 · 04437-21021 · 04437-21022 |
| 04437B | Left rear drive shaft dust boot assembly | 04437-21020 · 04437-21021 · 04437-21022 |
| 04437C | Right rear drive shaft inner universal joint dust boot assembly | 04437-21010 · 04437-21011 · 04437-21012 |
| 04437D | Left rear drive shaft inner universal joint dust boot assembly | 04437-21010 · 04437-21011 · 04437-21012 |
| 41336J | Rear axle right drive shaft dust cover | 41336-33010 |
| 41336K | Rear axle left drive shaft dust cover | 41336-33010 |
| 42311L | Rear axle right half shaft | 42301-32060 |
| 42311M | Bearing (for rear axle right half shaft) | 90369-38003 · 90369-38019 |
| 42311N | Nut (for rear axle right half shaft) | 90178-22001 · 90179-22020 |
| 42311T | Snap ring (for rear axle right half shaft) | 90521-79002 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 · 90942-02070 |
| 42311V | Oil seal (for rear axle right half shaft) | 90311-52005 · 90311-56015 · 90311-56031 |
| 42312 | Rear axle left half shaft | 42301-32060 |
| 42312A | Bearing (for rear axle left half shaft) | 90369-38003 · 90369-38019 |
| 42312B | Nut (for rear axle left half shaft) | 90178-22001 · 90179-22020 |
| 42312C | Oil seal (for rear axle left half shaft) | 90311-52005 · 90311-56015 · 90311-56031 |
| 42312D | Snap ring (for rear axle left half shaft) | 90521-79002 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 · 90942-02070 |
| 42330 | Rear axle right drive shaft assembly | 42330-33010 · 42330-33011 |
| 42330C | Hole snap ring (for rear driveshaft) | 90521-64001 |
| 42330D | Shaft snap ring (for rear driveshaft) | 90521-64001 |
| 42330G | Toyota part | 90311-42033 |
| 42340B | Rear axle left drive shaft assembly | 42340-33010 · 42340-33011 |
| 42340D | Toyota part | 90311-42033 |
| 42341B | Snap ring (for rear axle right drive shaft) | 90520-21020 |
| 42341C | Snap ring (for rear axle left drive shaft) | 90520-21020 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-12120 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 42345-12120 |
| 42346E | Clamp No. 2 (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-12130 · 42345-33020 |
| 42346F | Clamp No. 2 (for the universal joint dust cover on the outside of the rear left drive shaft of the rear axle) | 42345-12130 · 42345-33020 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-12120 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-12120 |
| 42347E | Clamp No. 2 (for the dust cover of the universal joint inside the right drive shaft of the rear axle) | 42345-12130 · 42345-33020 |
| 42347F | Clamp No. 2 (for the dust cover of the universal joint inside the left drive shaft of the rear axle) | 42345-12130 · 42345-33020 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42360-33010 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42360-33010 |
| 42360L | Shaft snap ring (for rear axle right drive shaft inner universal joint) | 90521-26004 |
| 42360M | Shaft snap ring (for rear axle left drive shaft inner universal joint) | 90521-26004 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-39115 · 42370-39116 · 42370-39117 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42380-39035 · 42380-39036 · 42380-39037 |
| 42410 | Rear axle right hub and bearing assembly | 42450-33010 · 42450-33020 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-10124 |
| 42421F | O-ring (for rear axle right bearing housing) | 90301-63003 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-10124 |
| 42422B | O-ring (for rear axle left bearing housing) | 90301-63003 |
| 42431 | rear brake disc | 42431-33010 · 42431-33080 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42450-33010 · 42450-33020 |
| 42451A | No. 1 right rear wheel bearing dust cover | 43247-12010 |
| 42451B | No. 1 left rear wheel bearing dust cover | 43247-12010 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-22020 |
| 43525D | Right rear wheel adjustment lock cover | 43525-20040 |
| 43525E | Left rear wheel adjustment lock cover | 43525-20040 |
