Toyota CAMRY Transfer Case & Extension Housing — Figure 3609

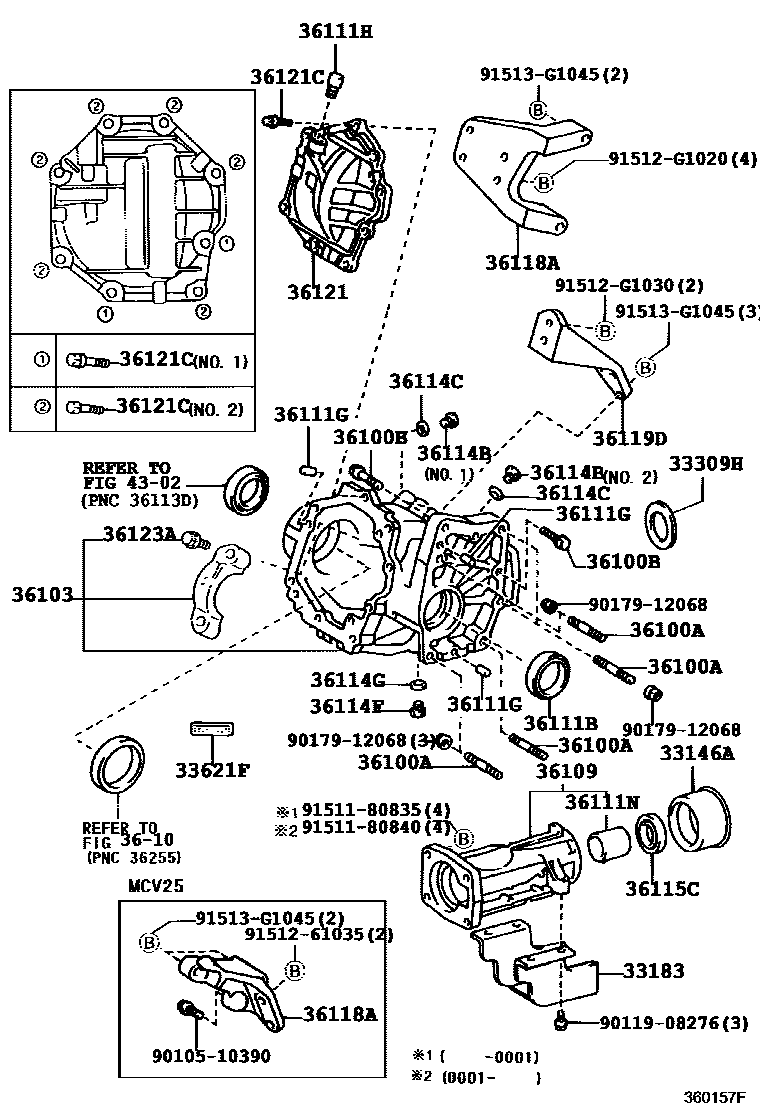

Toyota CAMRY EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33146A | Transfer case extension housing dust cover | 33146-30010 · 33146-30020 |
| 33183 | Transfer case dynamic damper | 33183-33010 |
| 33309H | Transfer case output shaft washer | 36275-33010 · 36275-33020 · 36275-33030 · 36275-33040 · 36275-33050 · 36275-33060 · 36275-33070 · 36275-33080 · 36275-33090 · 36275-33100 · 36275-33110 · 36275-33120 · 36275-33130 · 36275-33140 · 36275-33150 · 36275-33160 · 36275-33170 · 36275-33180 · 36275-33190 · 36275-33200 · 36275-33210 · 36275-33220 · 36275-33230 · 36275-33240 · 36275-33250 · 36275-33260 · 36275-33270 · 36275-33280 · 36275-33290 · 36275-33300 · 36275-33310 · 36275-33320 · 36275-33330 · 36275-33340 · 36275-33350 · 36275-33360 · 36275-33370 · 36275-33380 · 36275-33390 · 36275-33400 · 36275-33410 · 36275-33420 · 36275-33430 · 36275-33440 · 36275-33450 · 36275-33460 |
| 33621F | Transaxle oil information label | 33621-16060 |
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90116-12028 · 90116-12034 · 90116-12040 · 90116-12041 |
| 36100B | Bolts (for securing transfer case and transaxle) | 90105-12298 |
| 36103 | Transfer case sub-assembly | 36103-33010 |
| 36109 | Transfer case extension housing sub-assembly | 36109-33010 |
| 36111B | Oil seal (for transfer case) | 90311-55002 |
| 36111G | Direct sales (for transfer case) | 90250-08030 · 90250-10017 |
| 36111H | Breather plug (for transfer case) | 90930-03133 |
| 36111N | Bushing (for transfer case) | 90999-73105 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18045 · 90341-18053 |
| 36114C | No. 1 gasket (for transfer case) | 12157-10010 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18057 |
| 36114G | Gasket (for transfer case drain plug) | 12157-10010 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38062 |
| 36118A | Transfer case right side reinforcement plate | 36118-33010 · 36118-33020 |
| 36119D | Transfer case center reinforcement plate | 36119-33010 |
| 36121 | No. 1 transfer case cover | 36121-33010 |
| 36121C | Hexagon head bolt with washer base (for transfer case cover) | 90105-08351 · 91511-60820 |
| 36123A | Differential bearing cap bolts | 41114-16010 |
